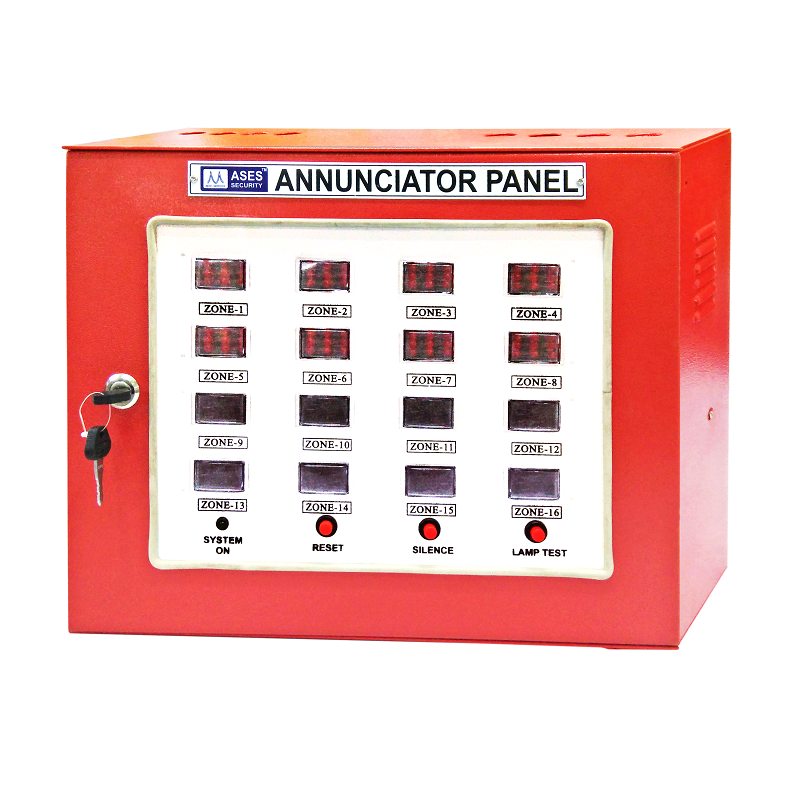

Annunciator Panel( AN–16S/32S)

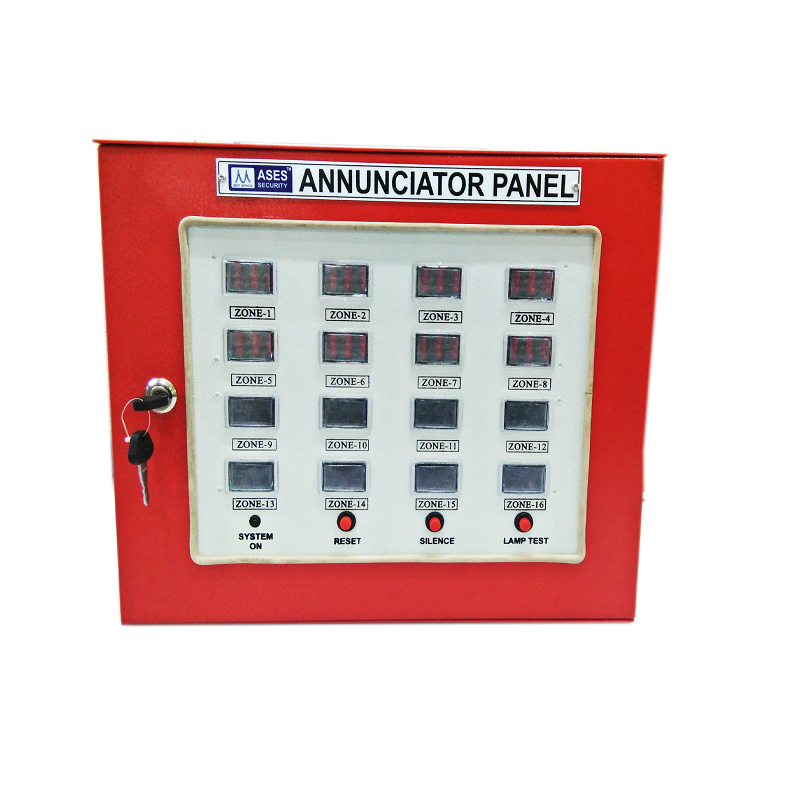

Annunciator Panel( AN–16S/32S) - Image 2

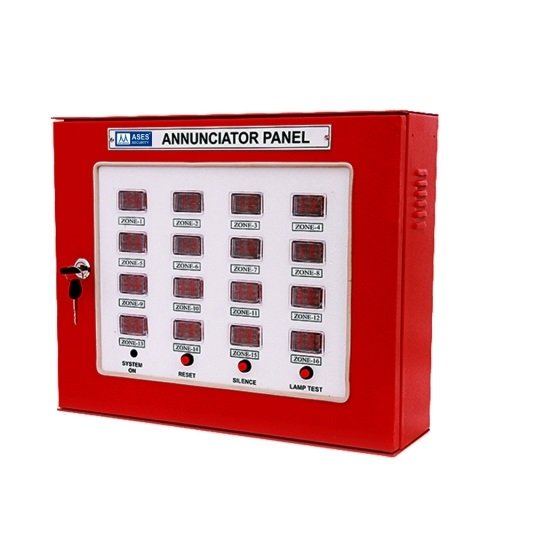

Annunciator Panel( AN–16S/32S) - Image 3
Annunciator Panel( AN–16S/32S) - Image 4

Annunciator Panel( AN–16S/32S)

Category:

Description

ASES Sprinkler annunciation panel MODEL: AN–16S/32S is a microprocessor base indication panel. The panel gives the indication of activation of FLOW SWITCH DEVICE.

Additional Information

Technical Specification
AC Power : 220v AC, 50Hz ± 10%
Standby : 24v DC
Operating Temperature : 0°C to 40°C
Operating Humidity : 95% (non-condensing)
Normal Loop Voltage : 12v DC
Alarm Outputs Hooter Output : 0.7 A (24v DC) (Normal)
Mechanical Specification
Body : Made of CRC sheet with powder-coated finish
Weight : 10 Kg (approximate)
Size : 425 x 355 x 130 mm (width x height x depth)
Color : Red / White
