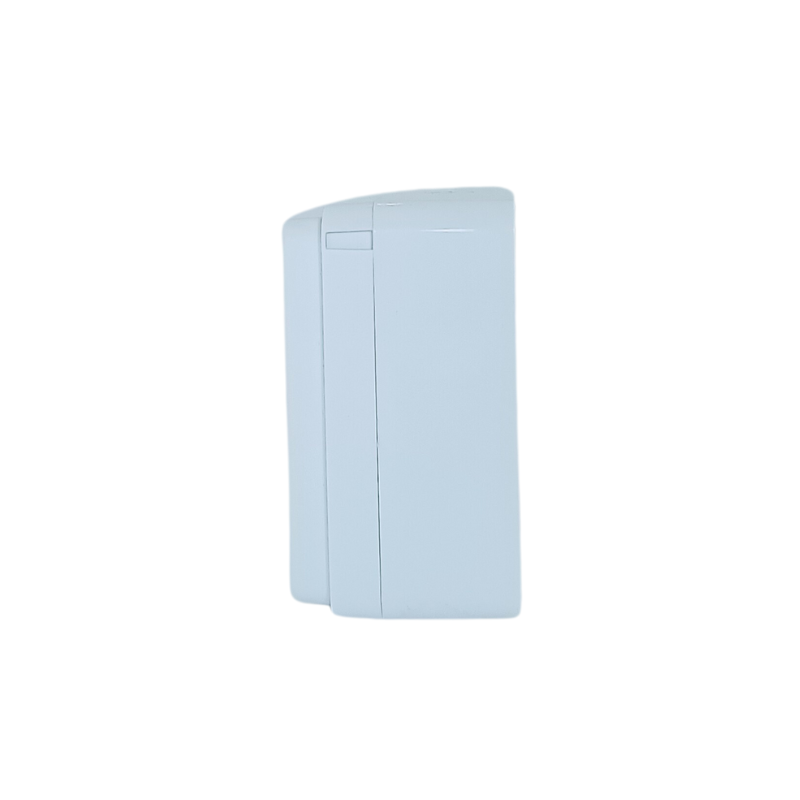

Control Module(PX–DA–CM)

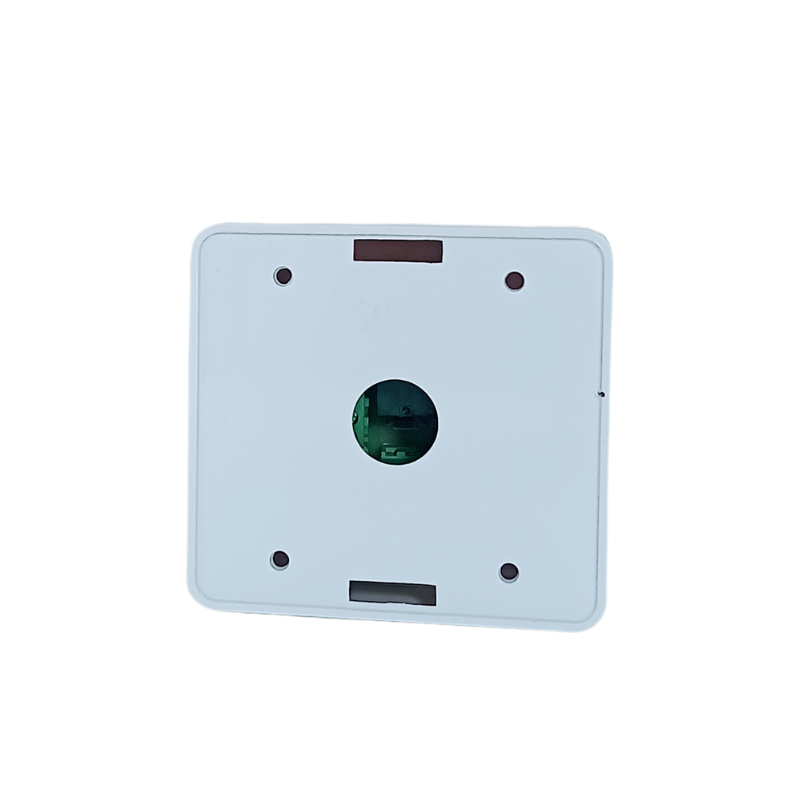

Control Module(PX–DA–CM) - Image 2

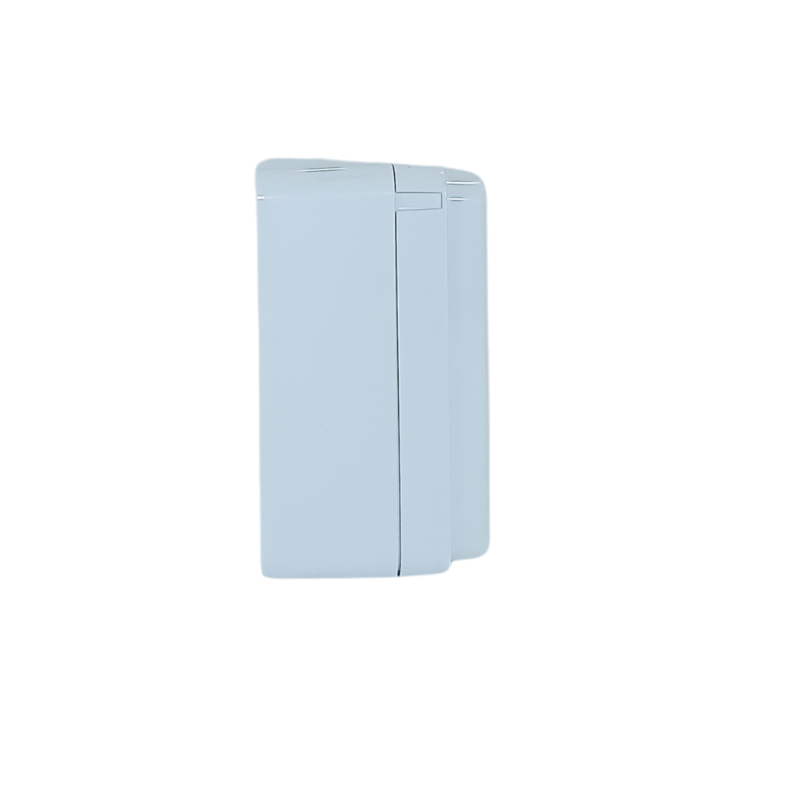

Control Module(PX–DA–CM) - Image 3
Control Module(PX–DA–CM) - Image 4

Control Module(PX–DA–CM)

Categories: ,

Description

Addressable Control modules are used to supervise a circuit of dry-contact output devices. PX-DA-CM offers a single input dry contact for integration of any third-party devices not connected to the Fire Alarm panel.

Additional Information

Technical Specification
Operating Voltage : 24V DC
Control rating : 7 Amp @ 240 VAC
Current Consumption (Normal /Fire) : 150μA 60mA @ 24 VDC
Application Temperature Range : 0° C to + 60° C
Humidity : 5-95% Relative Humidity (non condensing)
Housing : ABS
Mechanical Specification
Weight : 80gm
Dimensions (mm) : 100 x 93 x 53 (W x H x D)
Color : White
