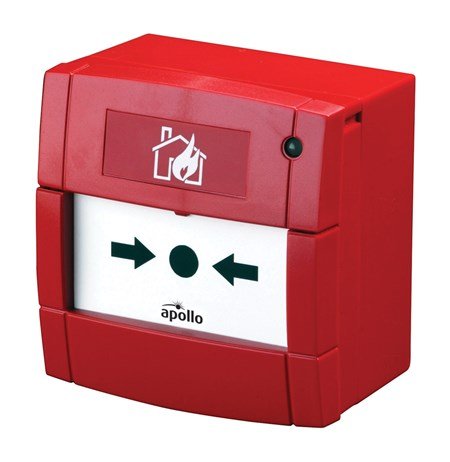

Conventional Marine Manual Call Point 55100-021MAR

Conventional Marine Manual Call Point 55100-021MAR

Category:

Description

55100-021MAR

The Conventional Marine Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

  • EN 54-11 Certified
  • ‘Plug and Play’
  • terminal connections for faster wiring
  • Continuity link for wiring test before commissioning
  • Suitable for semi flush or surface mounting

Additional Information

General
Warranty  :  10 year
Mechanical
Colour  :  Red
Weight  :  180g
Product length  :  98mm
Product width  :  93mm
Product depth  :  59.5mm
Detection principle  :  Operation of a switch.
Key type  :  KAC Manal Call Point test & reset key
Product length  :  3.86in
Product width  :  3.66in
Product depth  :  2.34in
Conformance
Standards  :  EN 54-11
Approvals  :  CCS
Environmental
Humidity (max)  :  93% RH
Humidity (min)  :  0% RH
Humidity  :  0% to 93% (no condensation or icing)
Humidity Note  :  no condensation or icing
Operating temperature (min)  :  10°C
Operating temperature (max)  :  55°C
Operating temperature  :  10 to 55°C
IP rating Value  :  IP24D
Operating temperature  :  50 to 131°F
Operating temperature (max)  :  131°F
Operating temperature (min)  ;  50°F
