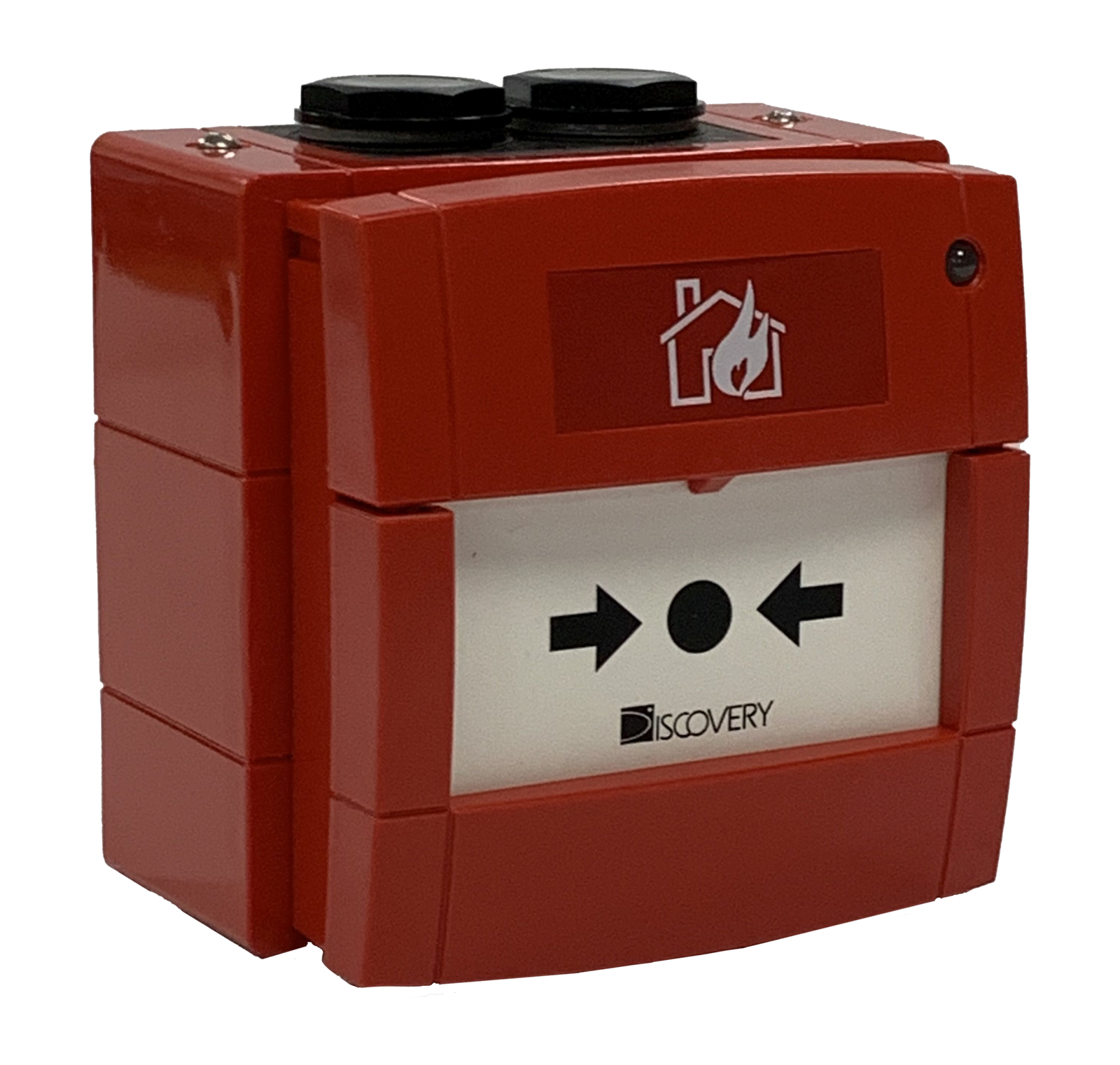

Discovery Manual Call Point – Outdoor – Isolating [SIL2] 58100-951APO

Discovery Manual Call Point – Outdoor – Isolating [SIL2] 58100-951APO

Category:

Description

58100-951APO

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

  • Suitable for weatherproof applications
  • EN 54-11 & EN 54-17 Certified
  • Reports an alarm in under 0.2 seconds
  • ‘Plug and Play’ terminal connections for faster wiring
  • Continuity link for wiring test before commissioning
  • XP95 & Discovery compatible

Additional Information

General
Warranty   :  3 year
Mechanical
Colour  :  Red
Weight  :  240g
Materials housing  :  Polycarbonate
Product length  :  98mm
Product width  :  93mm
Product depth  :  71mm
Product length  :  3.86in
Product width  :  3.66in
Product depth  :  2.8in
Conformance
Approvals
ESC

LPCB

CPR
Electrical
Power-up surge current  :  1mA
Maximum power-up time  :  Commercial
Quiescent current  :  100μA
Environmental
Humidity (max)  :  0% RH
Humidity (min)  :  95% RH
Operating temperature (min)  ;  -30°C
Operating temperature (max)  : 70°C
Operating temperature  :  -30 to 70°C
IP rating  :  Designed to
Operating temperature  :  -22 to 158°F
Operating temperature (max)  :  158°F
Operating temperature (min)  :  -22°F
