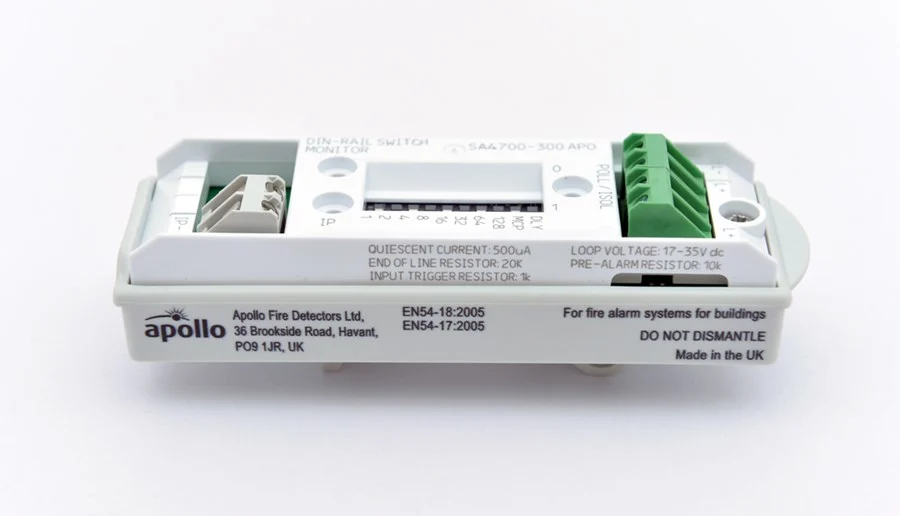

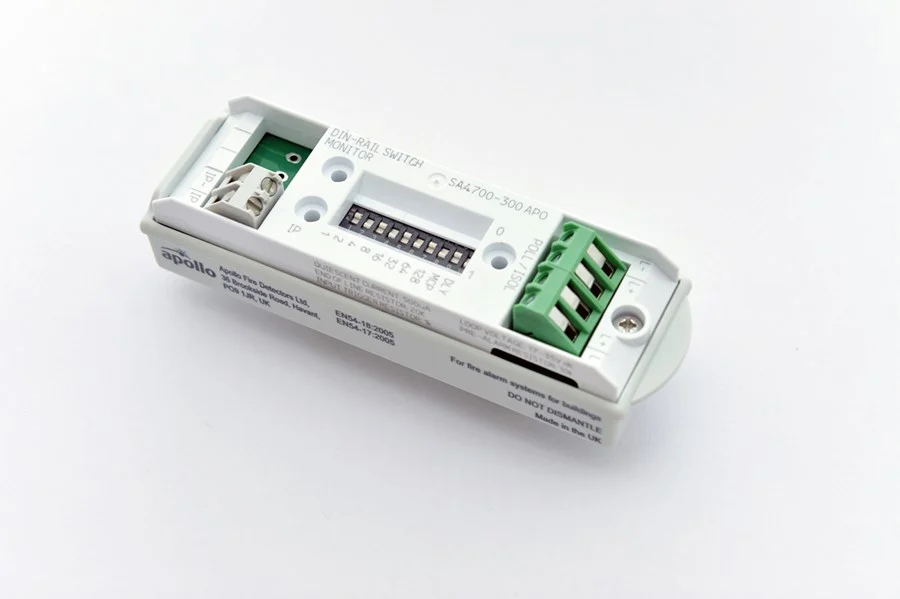

Intelligent DIN-Rail Switch Monitor Module SA4700-300APO

Intelligent DIN-Rail Switch Monitor Module SA4700-300APO

Category: Fire Alarm & Detection System

Description

SA4700-300APO

The Intelligent DIN-Rail Switch Monitor Module is used to monitor one or more single pole, volt free contacts connected on a single pair of cables and report status to fire control panel.

EN 54-17 & EN 54-18 Certified
Priority and non-priority settings
Switchable time delay on input for use when monitoring flow switches
Ergonomic design for ease of wiring and faster installation
Allows DIN-Rail mounting
XP95, Discovery and CoreProtocol compatible

Enquire in WhatsApp

Additional Information

General	Warranty : 10 year
Mechanical	Colour : White Weight : 43.5g Product length : 33mm Product width : 102mm Product depth : 33mm Product length : 1.3in Product width : 4.02in Product depth : 1.3in
Conformance	Standards : EN 54-17 EN 54-18 Approvals FG SBSC LPCB BOSEC VdS CPR
Electrical	Protocol voltage (min) : 5V Protocol voltage (max) : 13V Protocol voltage : 5 to 13V peak to peak Quiescent current : 500μA Quiescent current tested at : 24V dc Supply voltage (max) : 35V dc Supply voltage (min) : 17V dc Supply voltage (Vmin-Vmax) : 17 to 35V dc
Environmental	Humidity : 0% to 95% (no condensation or icing) Humidity Note : no condensation or icing Humidity (max) : 95% RH Humidity (min) : 0% RH Operating temperature : -40 to 70°C Operating temperature (max) : 70°C Operating temperature (min) : -40°C Operating temperature : -40 to 158°F Operating temperature (max) : 158°F Operating temperature (min) : -40°F
