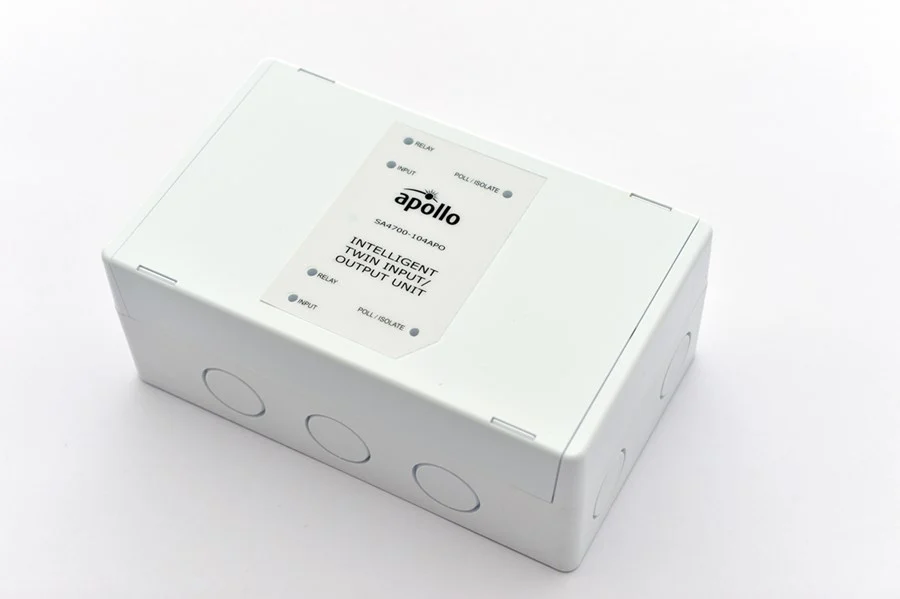

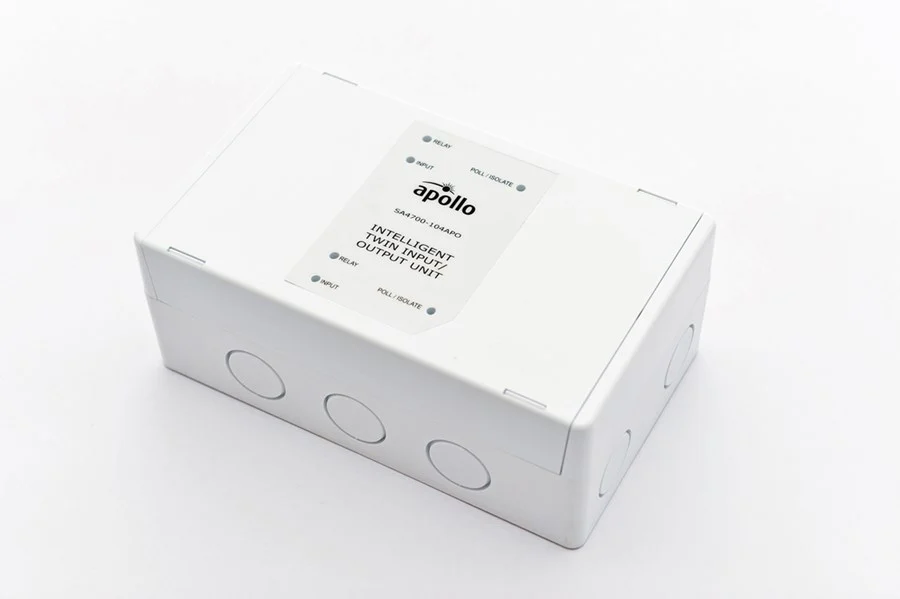

Intelligent Input/Output Module (Twin) SA4700-104APO

Intelligent Input/Output Module (Twin) SA4700-104APO

Category: Fire Alarm & Detection System

Description

SA4700-104APO

The Intelligent Input/Output Module provides the function of two Input/Output Modules to monitor single pole, volt free contact inputs and control relay output contacts.

EN 54-17 & EN 54-18 Certified
Meets BS 7273-4 failsafe requirements
Ergonomic design for ease of wiring and faster installation
Suitable for semi flush or surface mounting
XP95, Discovery and CoreProtocol compatible

Enquire in WhatsApp

Additional Information

General	Warranty : 10 year
Mechanical	Colour : White Weight : 281g Product length : 60mm Product width : 150mm Product depth : 90mm Relay output contact rating : 1A Relay output rating tested at : 30V ac Product length : 2.36in Product width : 5.91in Product depth : 3.54in
Conformance	Standards : EN 54-17 EN 54-18 Approvals FG LPCB SBSC BOSEC VdS CPR
Electrical	Protocol voltage (min) : 5V Protocol voltage (max) : 13V Protocol voltage : 5 to 13V peak to peak Quiescent current : 500μA Quiescent current tested at : 24V dc Supply voltage (max) : 35V dc Supply voltage (min) : 17V dc Supply voltage (Vmin-Vmax) : 17 to 35V dc
Environmental	Humidity : 0% to 95% (no condensation or icing) Humidity Note : no condensation or icing Humidity (max) : 95% RH Humidity (min) : 0% RH Operating temperature : -40 to 70°C Operating temperature (max) : 70°C Operating temperature (min) : -40°C IP rating Value : IP52 Operating temperature : -40 to 158°F Operating temperature (max) : 158°F Operating temperature (min) : -40°F
