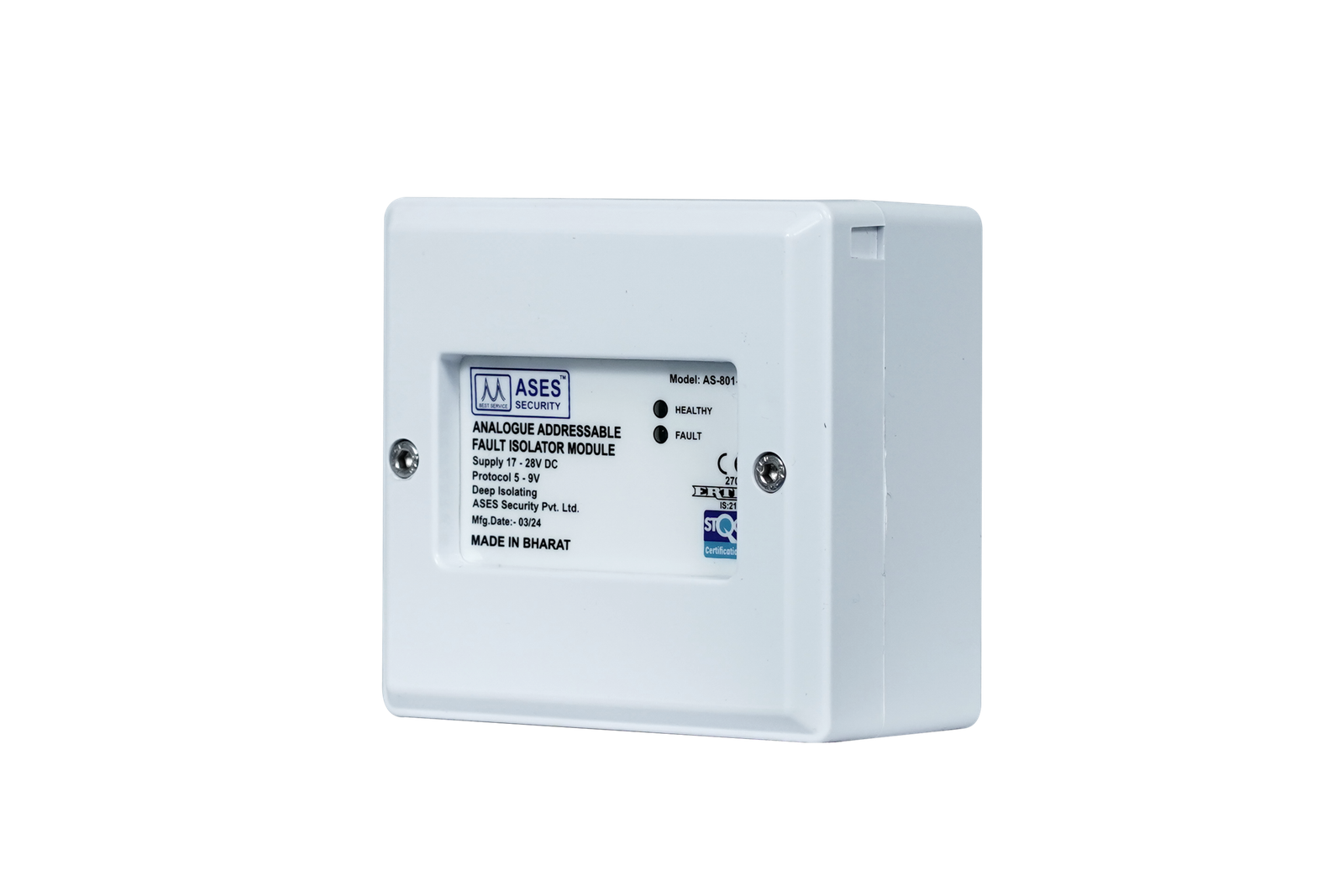

Isolator Module(AS-801-FI)

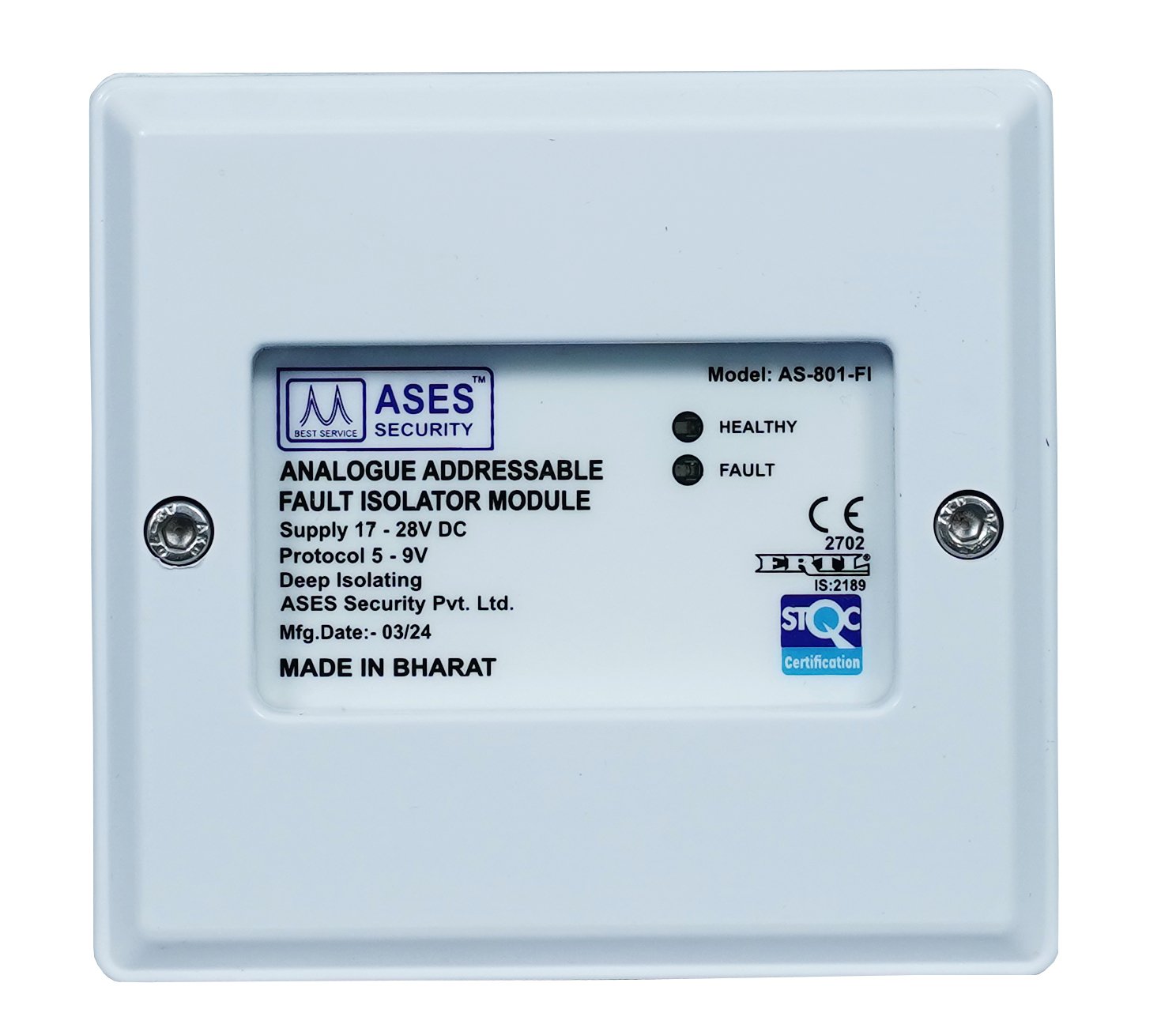

Isolator Module(AS-801-FI) - Image 2

Isolator Module(AS-801-FI)

Category:

Description

The ASES Analogue Addressable Loop Isolator AS-801-FI the shorted circuit from the whole system to ensure normal operation of other parts and locate the isolated part.

Additional Information

Technical Specification
Operating Loop Voltage : 22 – 24 Vdc
Quiescent Current : 70 μA
Alarm Current : 5 mA.
Material of Enclosure : ABS
Programming Mode : ASES RPTU
Wiring : Polarized 2-core for a loop.
Humidity : 5%-95% Rh
Address Range : Occupying one address,selectable within 1-125.
Mechanical Specification
Dimensions : ( L x W x D) 103 x 53 x 30 mm
Weight : 90 gm approx
