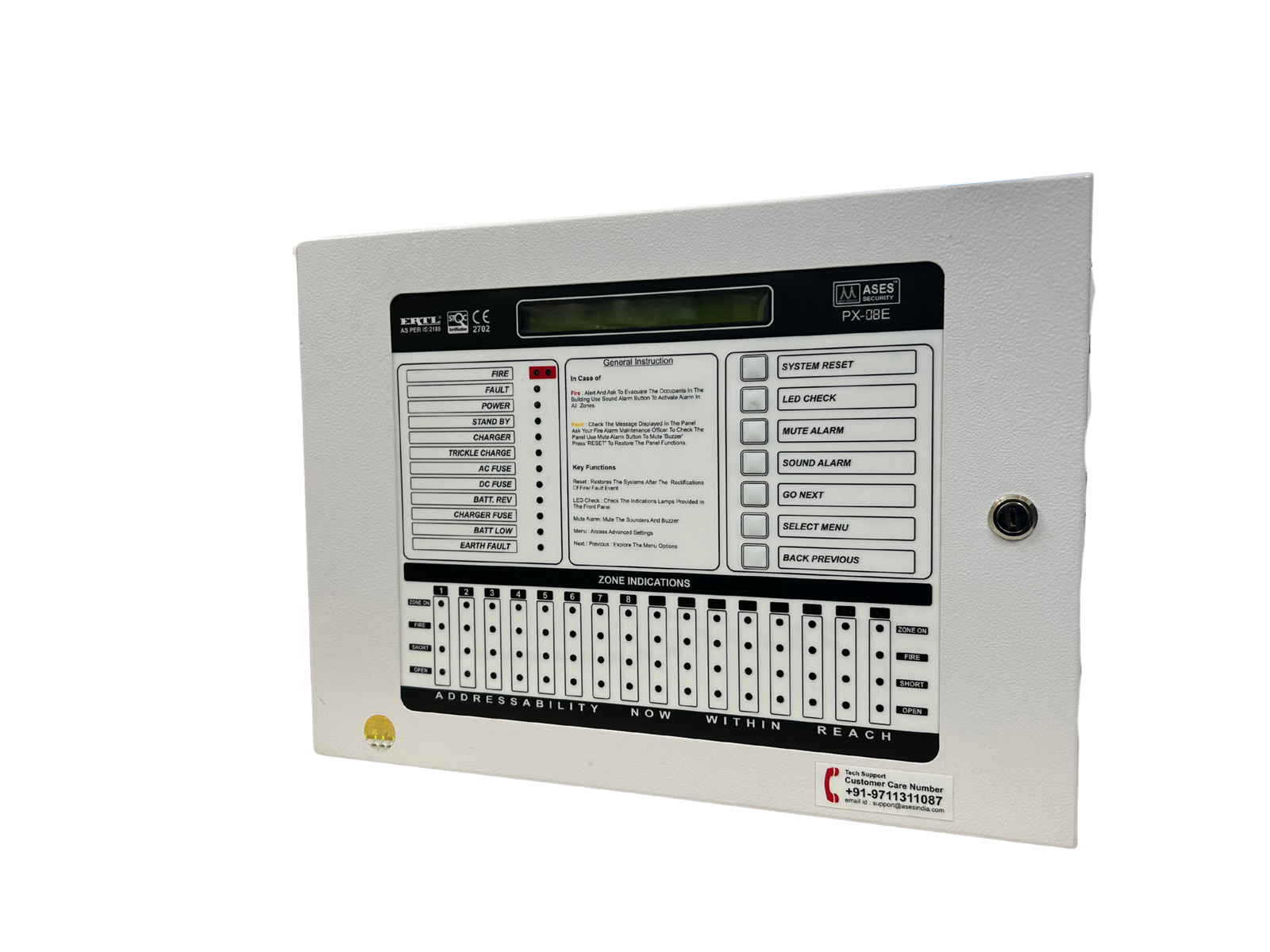

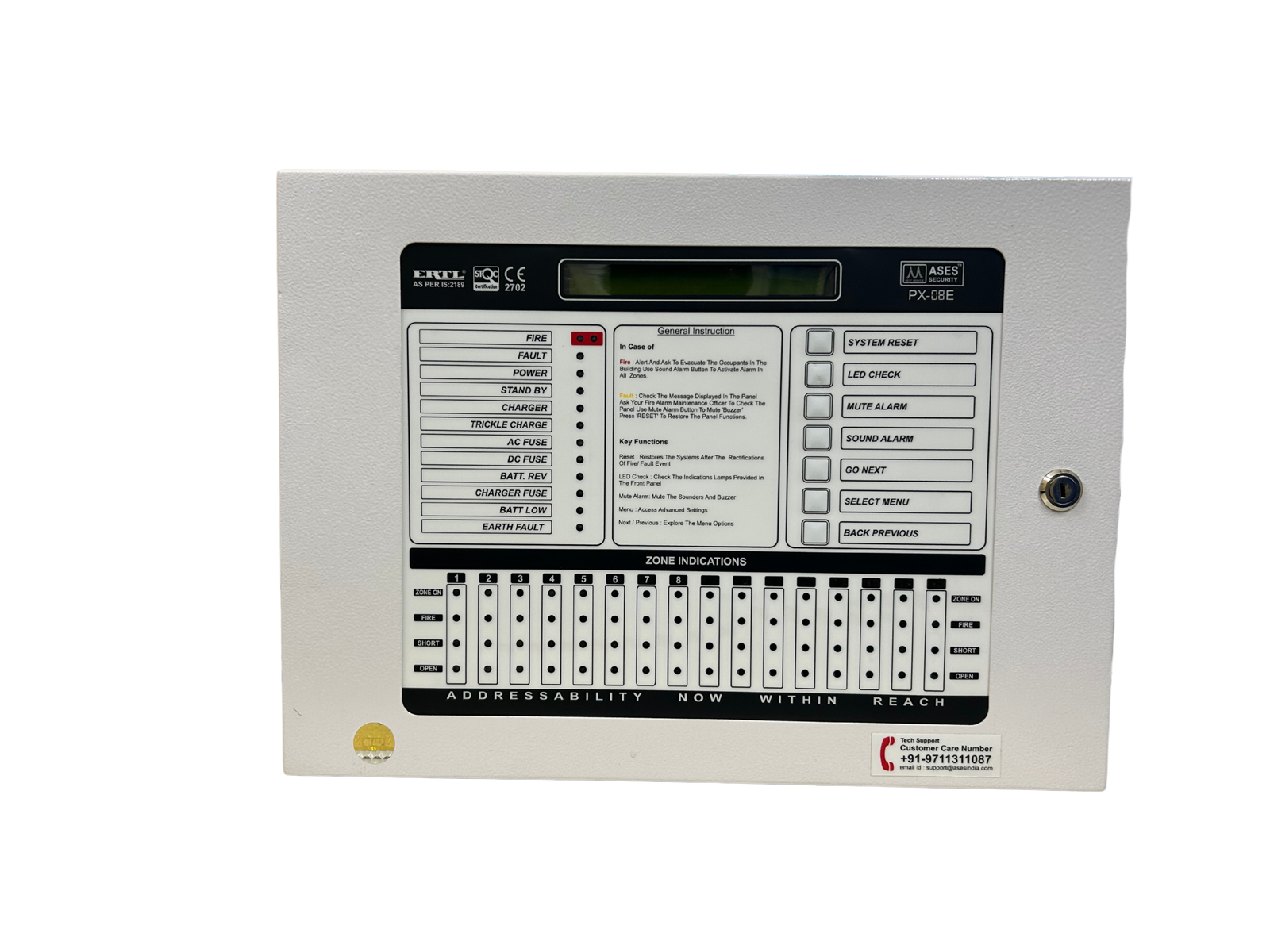

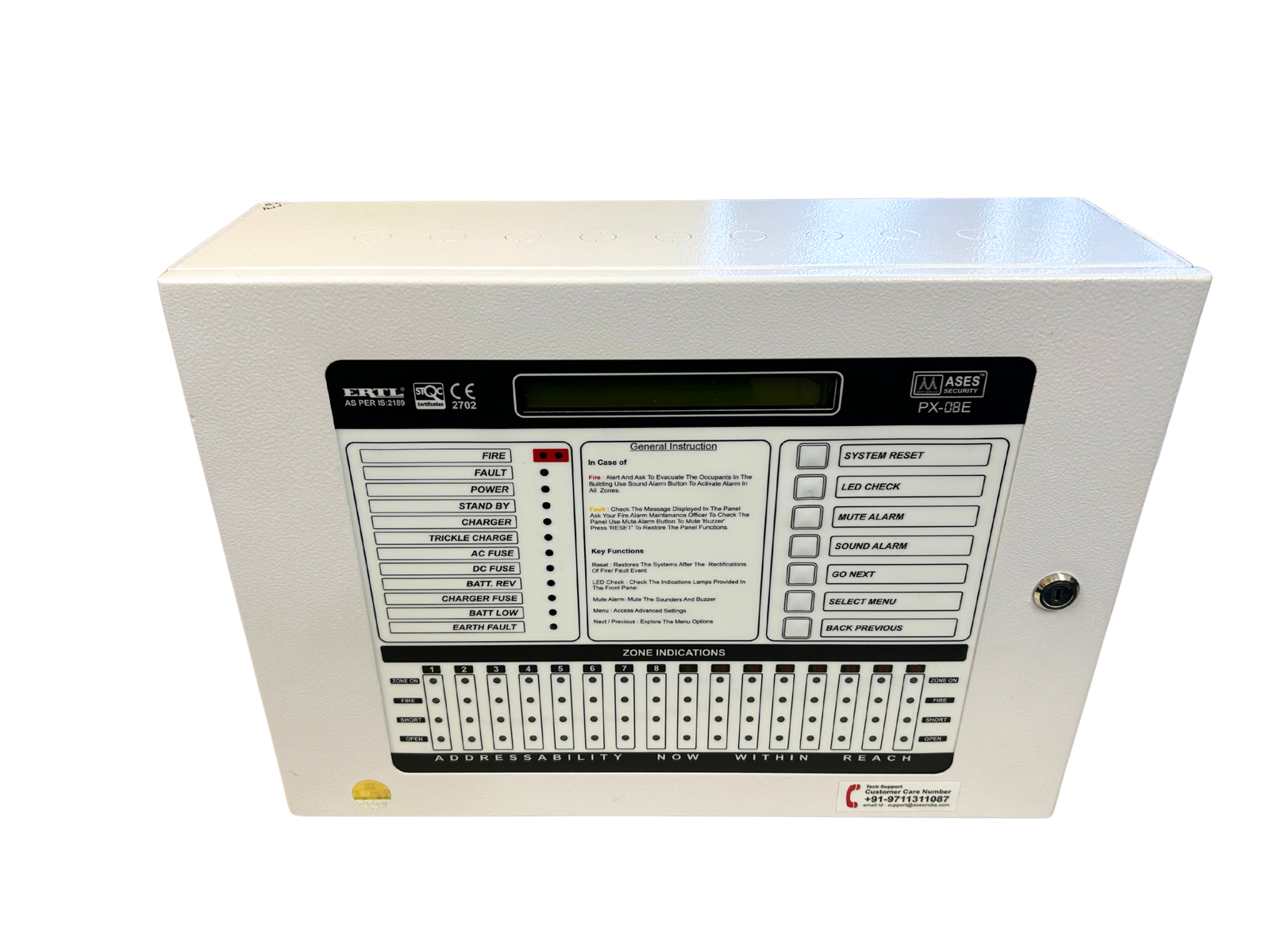

Networking Panel(PX–16E/32E/48E)
Categories:
Addressable Fire Alarm, Fire Alarm & Detection System
Description
ASES PX- 16E/32E/48E series is compact cost-effective digitally addressable FACPs (Fire Alarm Control Panels) with an extensive list of powerful features.
Enquire in WhatsApp
Additional Information
Technical Specification
Primary Power : AC: 180-250 VAC +/- 10%-15%, 50 Hz.
Standby Power : 24V D.C (2 No’s of 12V, 7 Ah battery (Max, Built in for 12Ah) Sealed Lead acid battery
Operating Temperature : 0 – 49 ℃
Relative Humidity : 93 ± 2% RH (non-condensing)
Charging Voltage : 27 V, ± 0.2V
Nominal Charging Current : 500mA (Max).
Wiring : Class B, Style – Y
Operating normal Voltage : 24 VDC
End-Of-Line Resistor : 4K7, ½ watt
Maximum No Devices per Zone : 32 Nos
Zone Current : 96mA (Max)
Normal operation Voltage : 22-23.5 VDC.
Alarm Current : 30 – 45mA
Short Circuit Current : 96mA Max
Zone resistance : 110 Max
End-Of-Line Resistor : 4K7, 1/2 watt
Standby Current : 240mA (200mA for Detectors)
