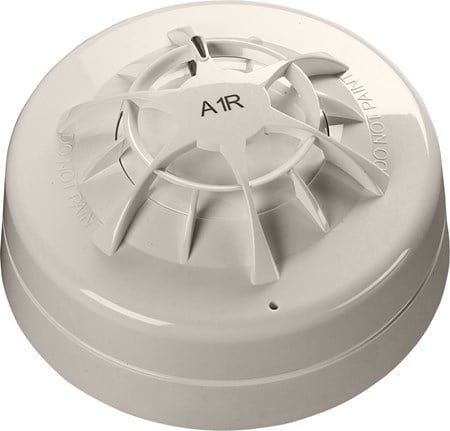

Orbis Marine Heat Detector (A1R) ORB-HT-41001-MAR

Orbis Marine Heat Detector (A1R) ORB-HT-41001-MAR

Category:

Description

ORB-HT-41001-MAR

The Orbis Heat Detector monitors temperature by using a single thermistor which provides a voltage output proportional to the external air temperature.

  • Can be used for applications where smoke detectors are unsuitable
  • Ideal in environments that are dirty or smoky under normal conditions
  • Red flashing LED at StartUp confirms the device is operating.
  • SensAlert®, yellow flashing LED indicates faulty operation
  • FasTest® takes just four seconds to test and confirm detectors are functioning correctly

Additional Information

General
Warranty  :  10 year
Applications  :  Dusty environments
                 Marine
Performance
Heat classification  :  A1R
Mechanical
Colour  :  White
Weight  :  70g
Materials housing  :  Polycarbonate
Product length  :  36mm
Product diameter  :  97mm
Product length  :  1.42in
Product diameter  :  3.82in
Conformance
Approvals  :  BV
             LR

DNV.GL

CCS

ABS

MED
Electrical
Maximum power-up time  :  <20 seconds
Quiescent current  :  95μA
Quiescent current tested at  :  24V dc
Polarity  :  L1 & L2 are polarity sensitive
Minimum ‘detector active’ voltage  :  6V
Holding voltage  :  5 to 33V
Holding voltage (max)  :  33V
Holding voltage (min)  :  5V
Minimum voltage to light alarm LED  :  5V
Alarm reset voltage  :  <1V
Alarm reset time  :  1s
Alarm load  :  600Ω
Sampling frequency  :  Once every 4 seconds
Environmental
Humidity (max)  :  98% RH
Humidity (min)  :  0% RH
Humidity Note  :  no condensation or icing
Humidity  :  0% to 98% (no condensation or icing)
IP rating Value  :  IP44
