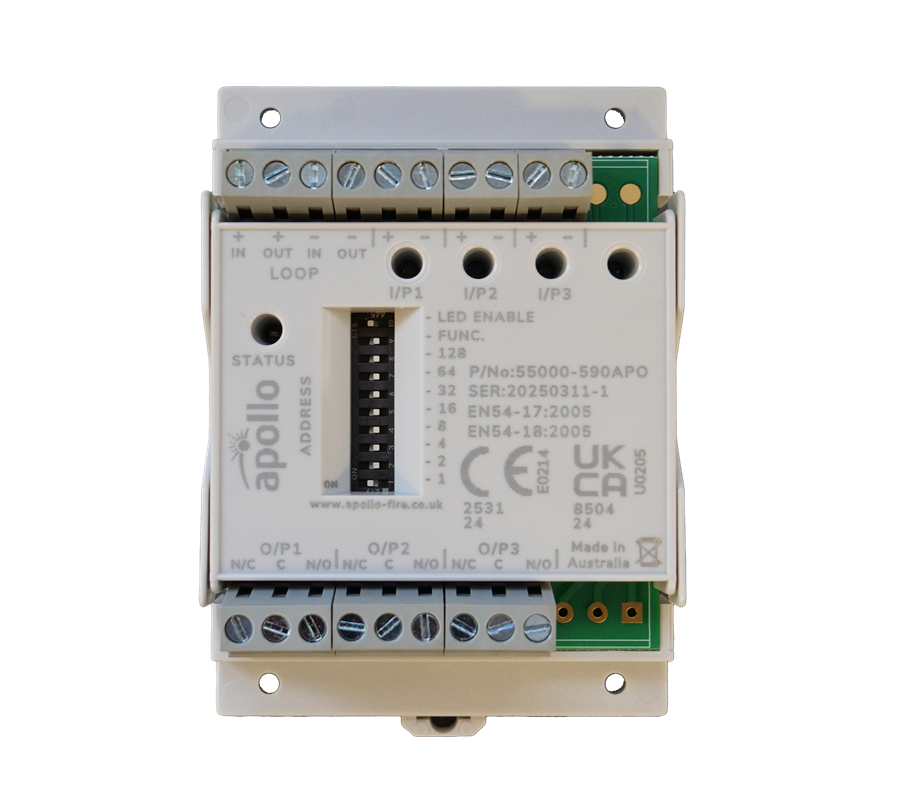

XP95 Input/Output Module – Three Channel – Isolating 55000-590APO
XP95 Input/Output Module – Three Channel – Isolating 55000-590APO - Image 2

XP95 Input/Output Module – Three Channel – Isolating 55000-590APO

Category:

Description

55000-590APO

The XP95 Three Channel Input/Output Module – Isolating provides three single pole, voltage-free, clean contact change over relay outputs and three monitored switch inputs.

  • EN 54-17 & EN 54-18 Certified
  • Uses a single loop address
  • Built-in Short Circuit Isolator

Additional Information

Electrical
Quiescent current  :  0.66 mA
Power-up surge current  :  5.97 mA
Supply voltage (Vmin-Vmax)  :  17 to 28 Vdc
Mechanical
Colour  :  White
Product height  :  25mm
Product width  :  68mm
Product lenght  :  95mm
Weight  :  76g
