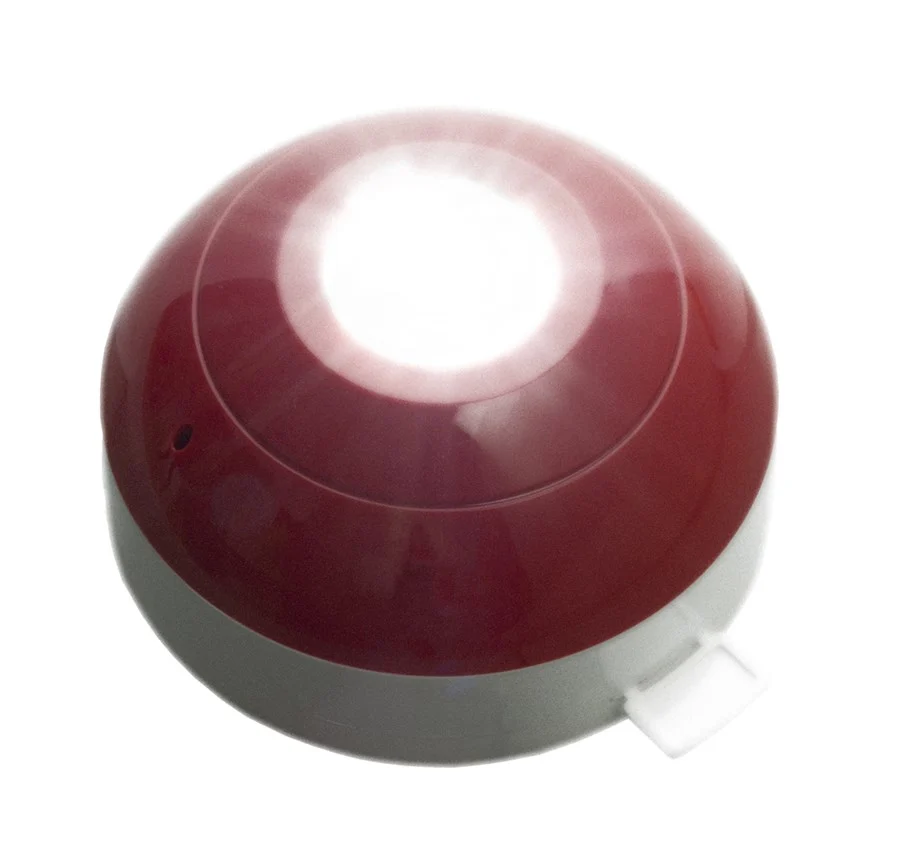

XP95 Open-Area VAD Cat. C – Red Body (White Flash) (C-3-8) 55000-742APO
XP95 Open-Area VAD Cat. C – Red Body (White Flash) (C-3-8) 55000-742APO - Image 2
XP95 Open-Area VAD Cat. C – Red Body (White Flash) (C-3-8) 55000-742APO - Image 3
XP95 Open-Area VAD Cat. C – Red Body (White Flash) (C-3-8) 55000-742APO - Image 4

XP95 Open-Area VAD Cat. C – Red Body (White Flash) (C-3-8) 55000-742APO

Category:

Description

55000-742APO

The XP95 Open-Area VAD Cat. C is designed for indoor use. The Category C VAD is specifically designed for use on a ceiling and comes in two different coverage classes. These devices are used to supplement sounders in areas which carry the risk that sounders will not be heard.

  • Uses high intensity LED
  • EN 54-23 Compliant Category C VAD
  • Coverage C-3-8.5 and C-3-15
  • Flash rate 0.5Hz
  • Fault signal if LED check failed
  • Locking mechanism (grub screw)
  • Wide angle of visibility
  • Synchronised flash rates with the Apollo Protocol

Additional Information

General
Warranty  :  10 year
Performance
Flash rate  :  0.5Hz
Coverage class  :  c-3-8
Mechanical
Colour  :  Red
Weight  :  105g
Materials housing  :  Polycarbonate
Conformance
Standards  :  EN 54-23
Approvals
CPR

FG

LPCB

VdS
Electrical
Quiescent current  :  280μA
Environmental
Humidity  :  0% to 95% (no condensation or icing)
Humidity (min)  :  0% RH
Humidity (max)  :  95% RH
Humidity Note  :  no condensation or icing
Operating temperature  :  -10 to 55°C
Operating temperature (max)  :  55°C
Operating temperature (min)  :  -10°C
Operating temperature  :  14 to 131°F
Operating temperature (max)  :  131°F
Operating temperature (min)  :  14°F
