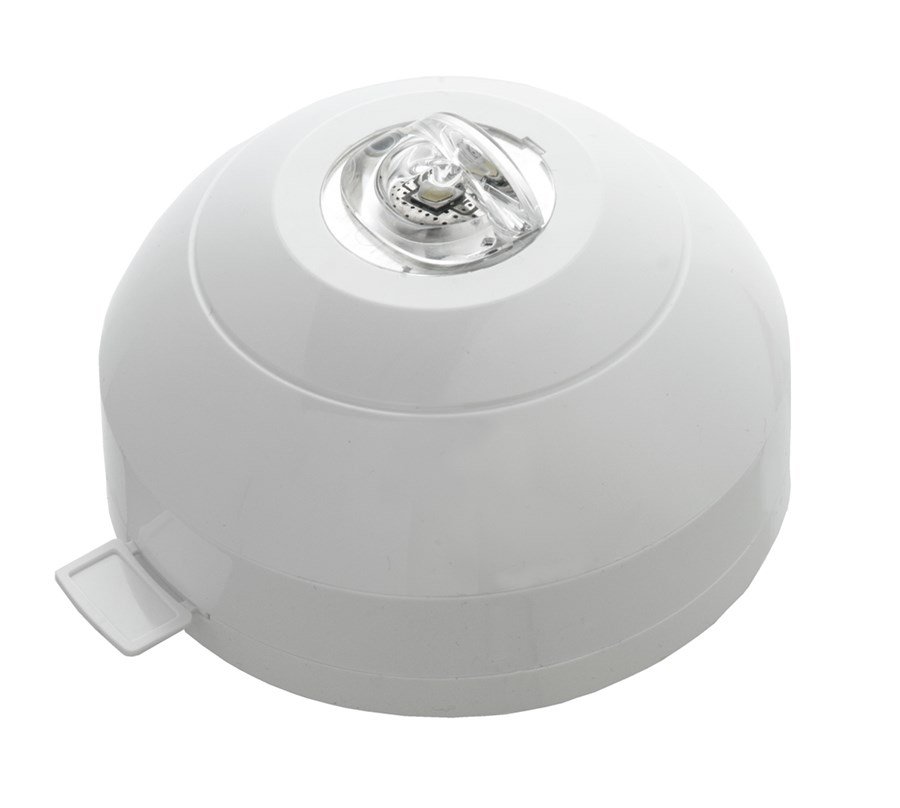

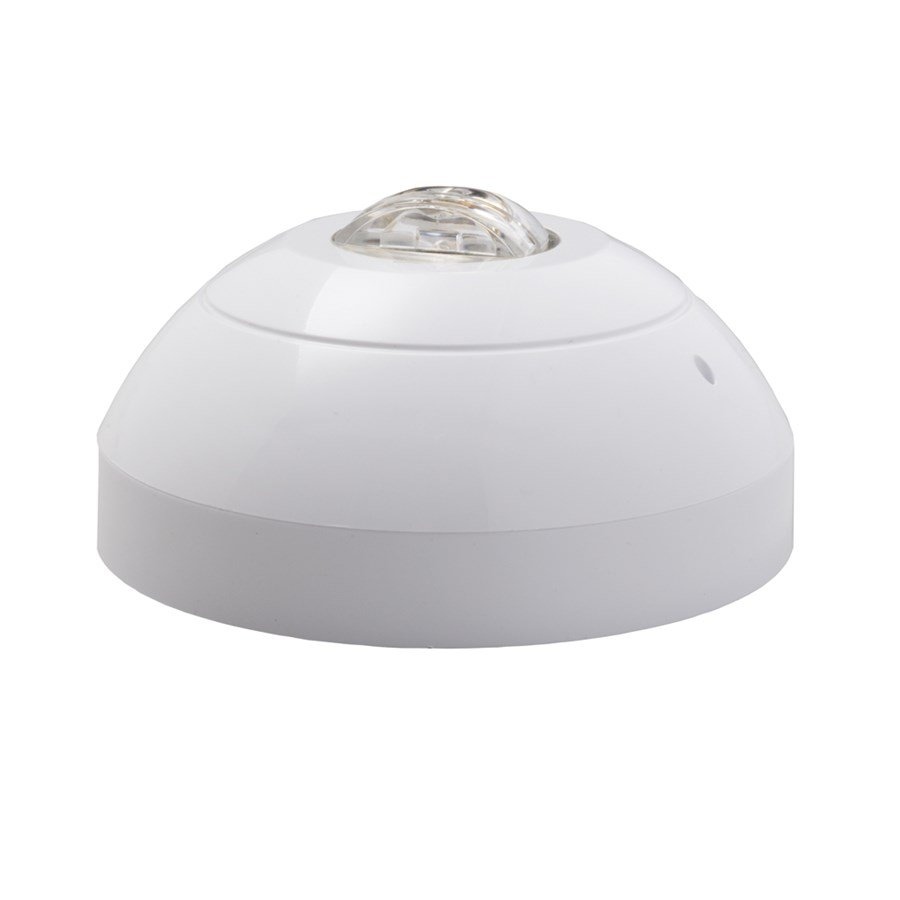

XP95 Open-Area VAD Cat. W – White Body (White Flash) (W-2.4-6) 55000-744APO
XP95 Open-Area VAD Cat. W – White Body (White Flash) (W-2.4-6) 55000-744APO - Image 2
XP95 Open-Area VAD Cat. W – White Body (White Flash) (W-2.4-6) 55000-744APO - Image 3
XP95 Open-Area VAD Cat. W – White Body (White Flash) (W-2.4-6) 55000-744APO - Image 4
XP95 Open-Area VAD Cat. W – White Body (White Flash) (W-2.4-6) 55000-744APO - Image 5
XP95 Open-Area VAD Cat. W – White Body (White Flash) (W-2.4-6) 55000-744APO - Image 6

XP95 Open-Area VAD Cat. W – White Body (White Flash) (W-2.4-6) 55000-744APO

Category:

Description

55000-744APO

The XP95 Open-Area VAD Cat. W has been developed as a primary or supplementary alarm device for use in situations where there is a risk that sounders will not be heard. This occurs, for example, where there is a high background noise e.g. in a workshop or a machine room. It might also be required where deaf or hearing impaired persons may be present.

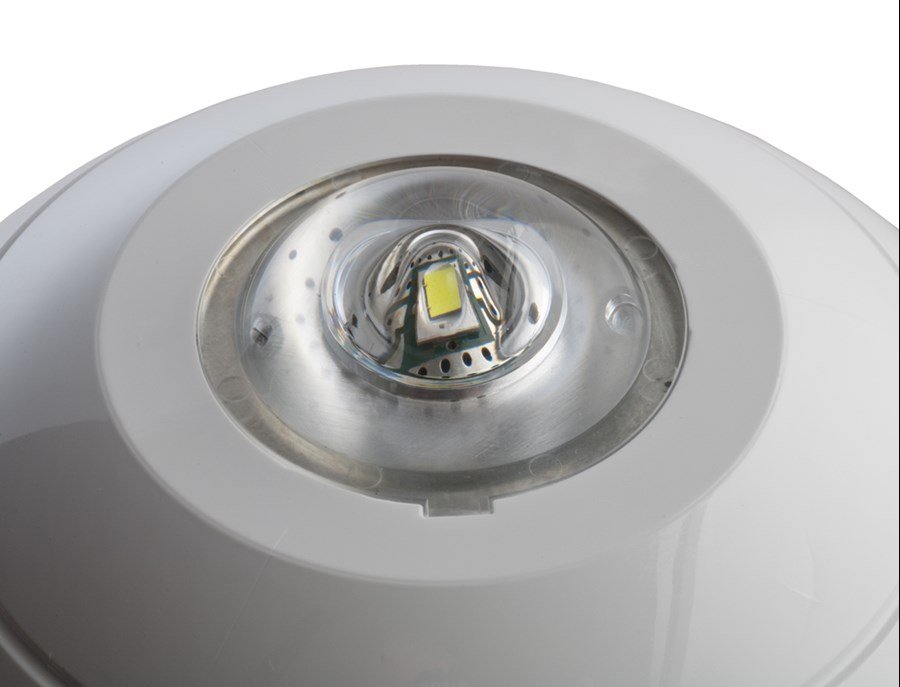

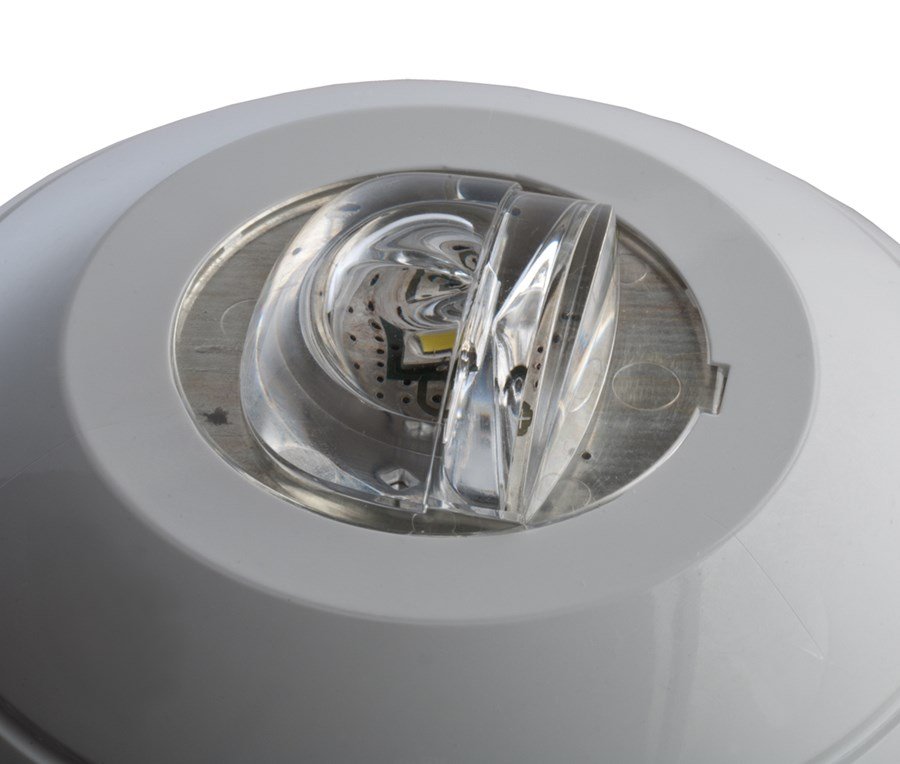

  • Uses high intensity LED (white flash only)
  • EN 54-23 Compliant Category W. VAD
  • Coverage W-2.4-6
  • Automatic LED check when VAD activated
  • Flash rate 0.5Hz
  • Fault signal if LED check failed
  • Locking mechanism (grub screw)
  • Wide angle of visibility
  • Synchronised with the Apollo Protocol

Additional Information

General
Warranty  :  10 year
Performance
Flash rate  :  0.5Hz
Mechanical
Colour  :  White
Weight  :  105g
Materials housing  :  Polycarbonate
Product length  :  48mm
Product diameter  :  100mm
Product length  :  1.89in
Product diameter  :  3.94in
Conformance
Standards  :  EN 54-23
Approvals
CPR

FG

LPCB

VdS


Electrical
Quiescent current  :  280μA
Environmental
Humidity (min)  :  0% RH
Humidity (max)  :  95% RH
Operating temperature  :  -10 to 55°C
Operating temperature (max)  :  55°C
Operating temperature (min)  :  -10°C
Operating temperature  :  14 to 131°F
Operating temperature (max)  :  131°F
Operating temperature (min)  :  14°F
