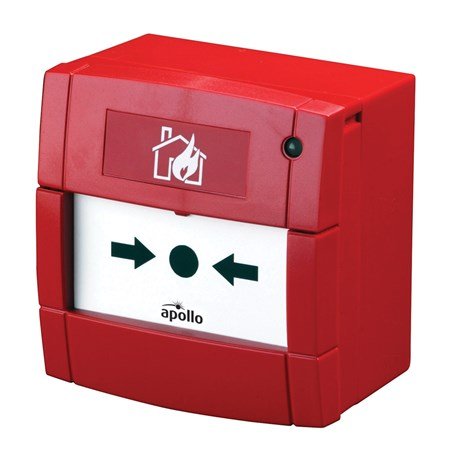

Conventional Marine Manual Call Point – Outdoor 55100-022MAR

Conventional Marine Manual Call Point – Outdoor 55100-022MAR

Category:

Description

55100-022MAR

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system.

  • Suitable for weatherproof applications
  • EN 54-11 Certified
  • ‘Plug and Play’
  • terminal connections for faster wiring
  • Continuity link for wiring test before commissioning

Additional Information

General
Warranty  :  3 year
Mechanical
Colour  :  Red
Weight  :  350g
Product length  :  97.5mm
Product width  :  93mm
Product depth  :  71mm
Detection principle  :  Operation of a switch.
Key type  :  KAC Manal Call Point test & reset key
Product length  ;  3.84in
Product width  :  3.66in
Product depth  :  2.8in
Conformance
Standards  :  EN 54-11
Approvals  :  CCS
Environmental
Humidity (max)  :  96% RH
Humidity (min)  :  0% RH
Humidity  :  0% to 96% (no condensation or icing)
Humidity Note  :  no condensation or icing
Operating temperature (min)  :  -25°C
Operating temperature (max)  :  70°C
Operating temperature  :  -25 to 70°C
IP rating Value  :  IP67
Operating temperature  :  -13 to 158°F
Operating temperature (max)  : 158°F
Operating temperature (min)  :  -13°F
