XPERT 7 Marine Base – Isolating [SIL2] 45681-286MAR

XPERT 7 Marine Base – Isolating [SIL2] 45681-286MAR

Category:

Description

45681-286MAR

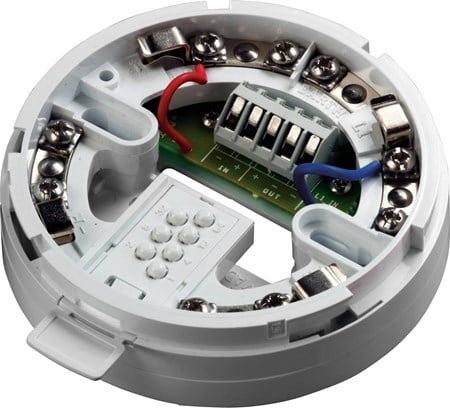

The base senses and isolates short circuit faults on XP95 and Discovery loops and spurs.

  • Up to 20 detectors or their equivalent load, may be installed between isolating bases
  • High-brightness LED
  • Detects wiring short-circuits
  • Minimises disruption from short-circuits

Additional Information

General
Warranty  :  10 year
Mechanical
Colour  :  White
Materials housing  :  Polycarbonate
Materials terminals  :  Nickel plated stainless steel
Product depth  :  24mm
Product diameter  :  100mm
Weight  :  100g
Product depth  :  0.94in
Product diameter  :  3.94in
Conformance
Approvals
LR

ESC

MED
