Fire Scan Panel SI-19

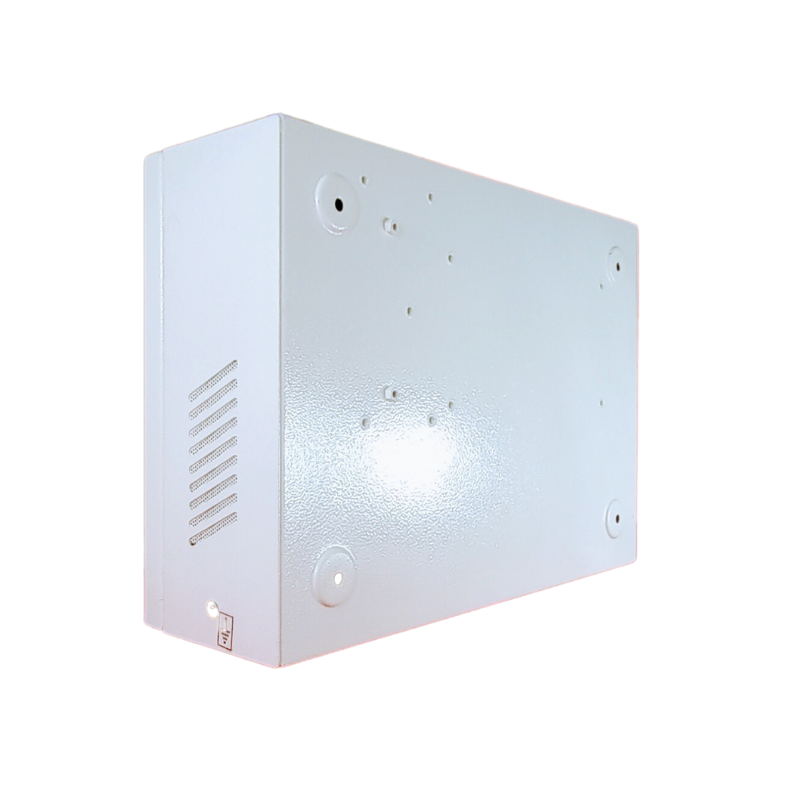

Fire Scan Panel SI-19 - Image 2

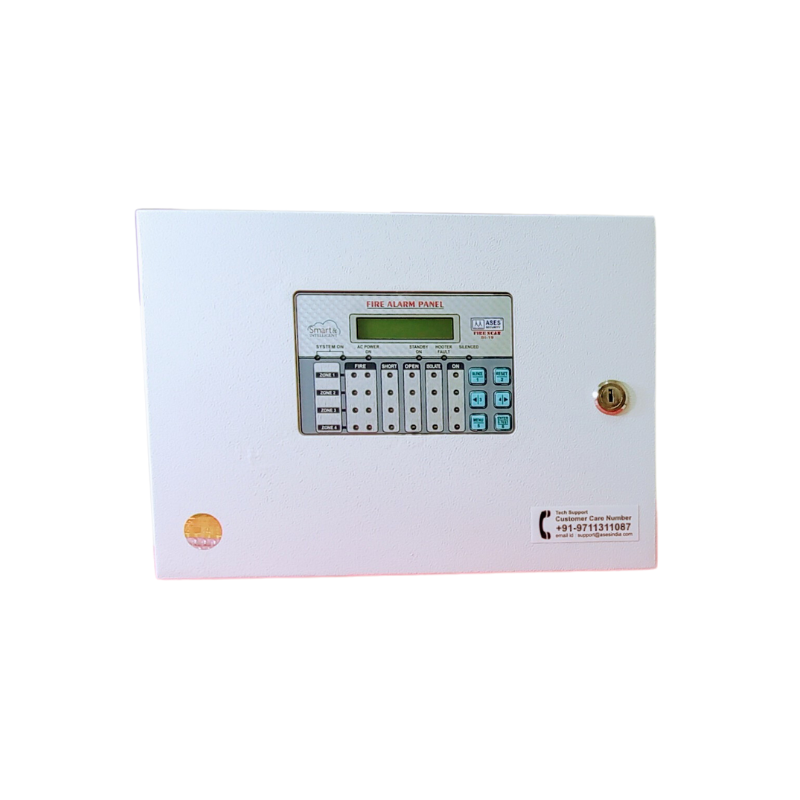

Fire Scan Panel SI-19 - Image 3

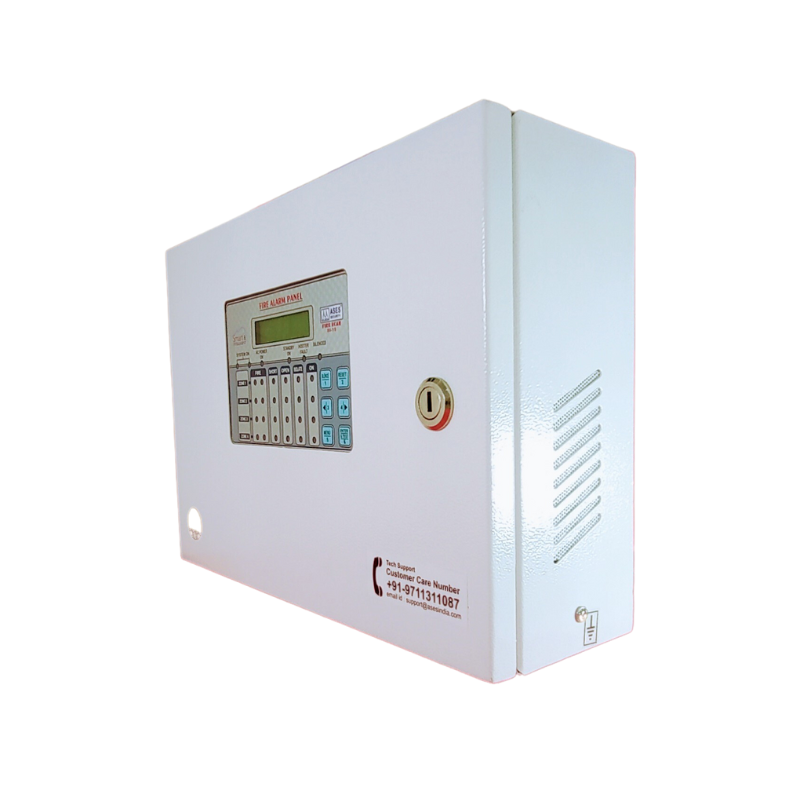

Fire Scan Panel SI-19 - Image 4

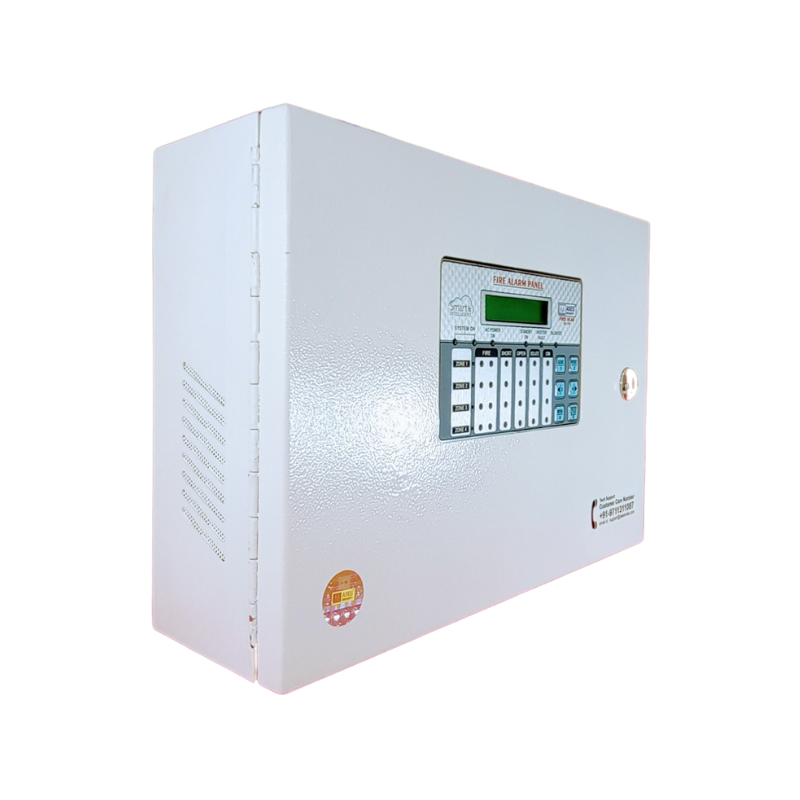

Fire Scan Panel SI-19

Categories: ,

Description

ASES Fire Scan SI-19 model has been developed to provide a simple & reliable solution to the demands of today’s fire detection solution. This model is designed user-friendly & cost-effective.

Additional Information

Technical Specification
AC Power : 220Vac, 50Hz ± 10%
Standby : 24 V DC
Operating Temperature : 0°C to 55°C
Operating Humidity : 95% (non-condensing)
Normal Zone Voltage : 23V DC to 24V DC
Open Threshold Current : 4.4 mA
Short Threshold Current : 35 mA
Fire Threshold Current : 15 – 35 mA
Mechanical Specification
Dimensions : 355 x 250 x 110 mm
Weight : 8 Kg
Color : White
