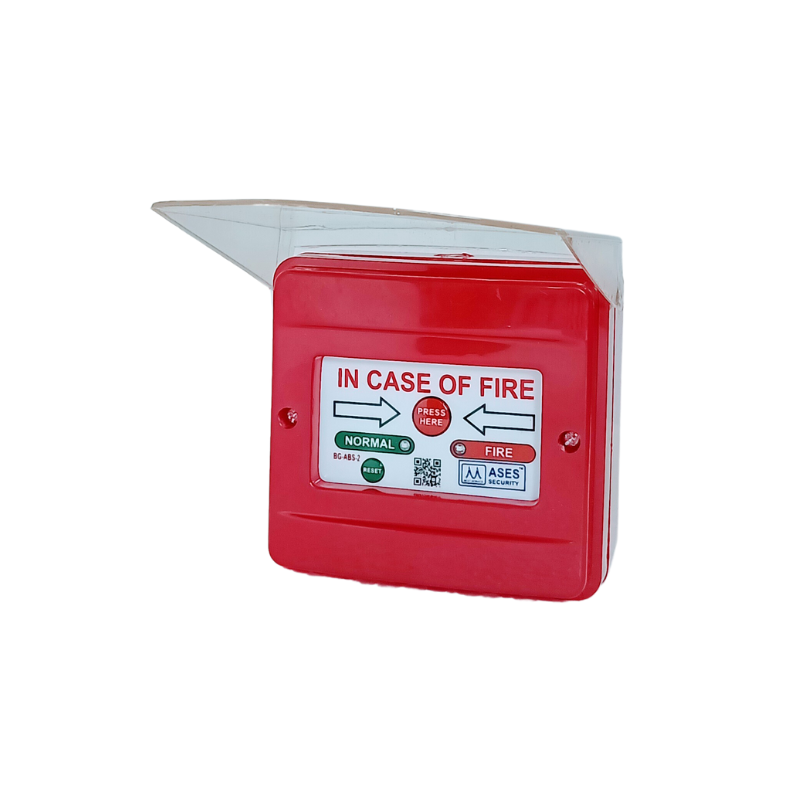

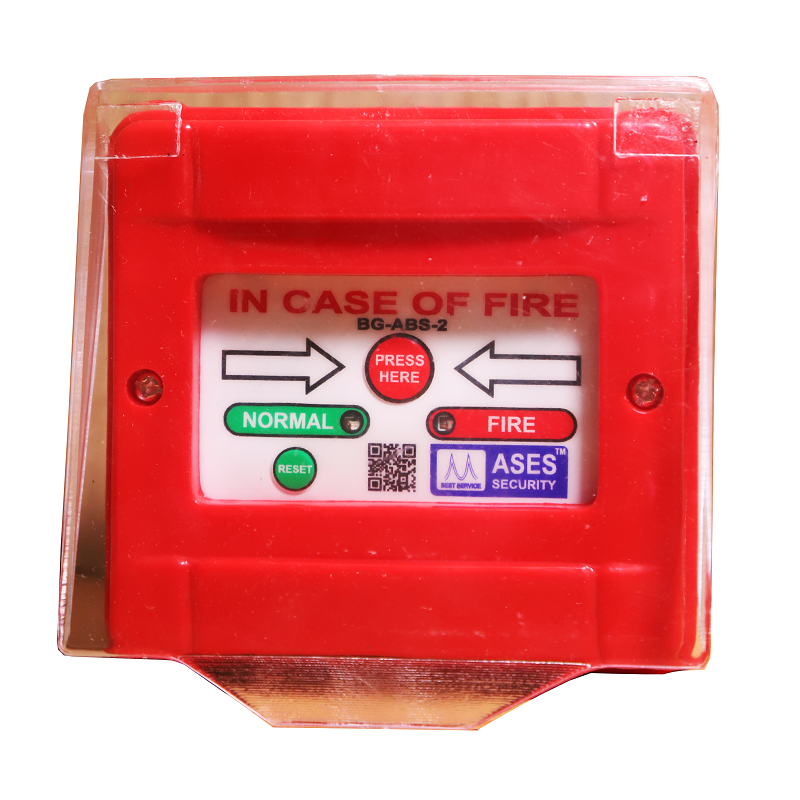

Conventional MCP(BG–ABS–2)
Conventional MCP(BG–ABS–2) - Image 2

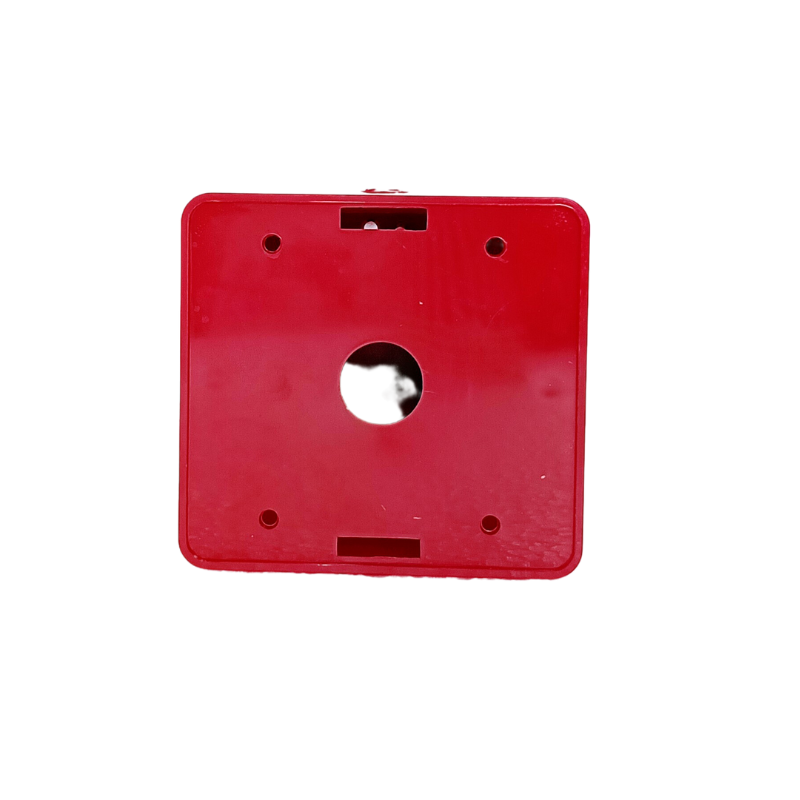

Conventional MCP(BG–ABS–2) - Image 3

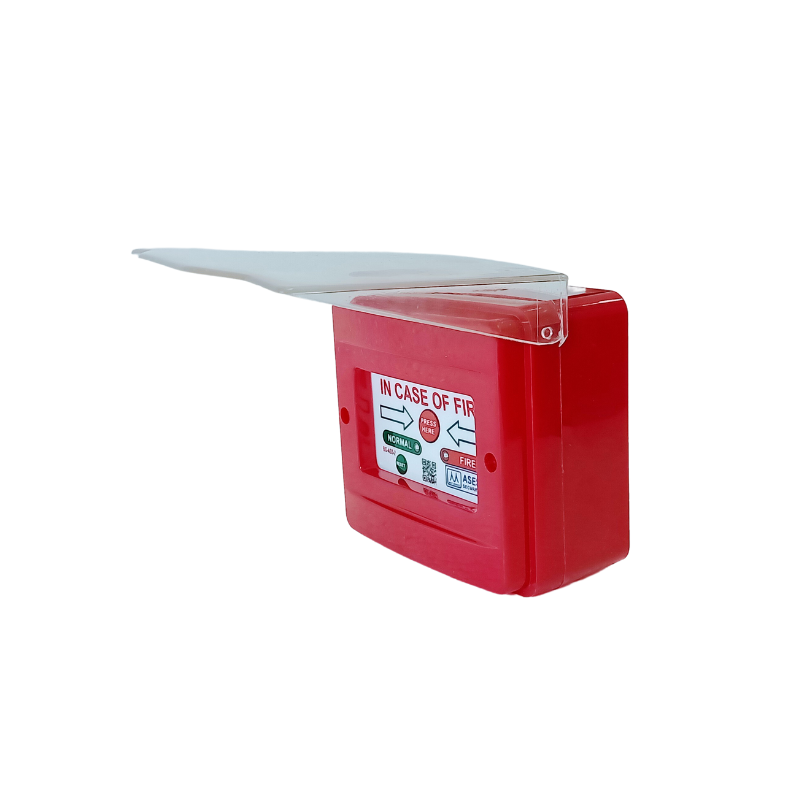

Conventional MCP(BG–ABS–2) - Image 4

Conventional MCP(BG–ABS–2)

Category:

Description

ASES conventional manual call point BG-ABS-2 is a call point designed to provide a manual alarm interface to any conventional fire alarm control panel.

Additional Information

Technical Specification
Operating voltage : 24V DC
Current Consumption (Normal/fire) : 150μA/ 60mA@ 24 VDC
Application Temp range : 0° C to 60° C
Operating Temp. : O°C to +90°C
Humidity : 5 to 95% Relative Humidity (non-condensing)
Housing : ABS
Mechanical Specification
Weight : 80gm
Dimensions : 105 x 105 x 57 (W x H x D)
Colour : Red
