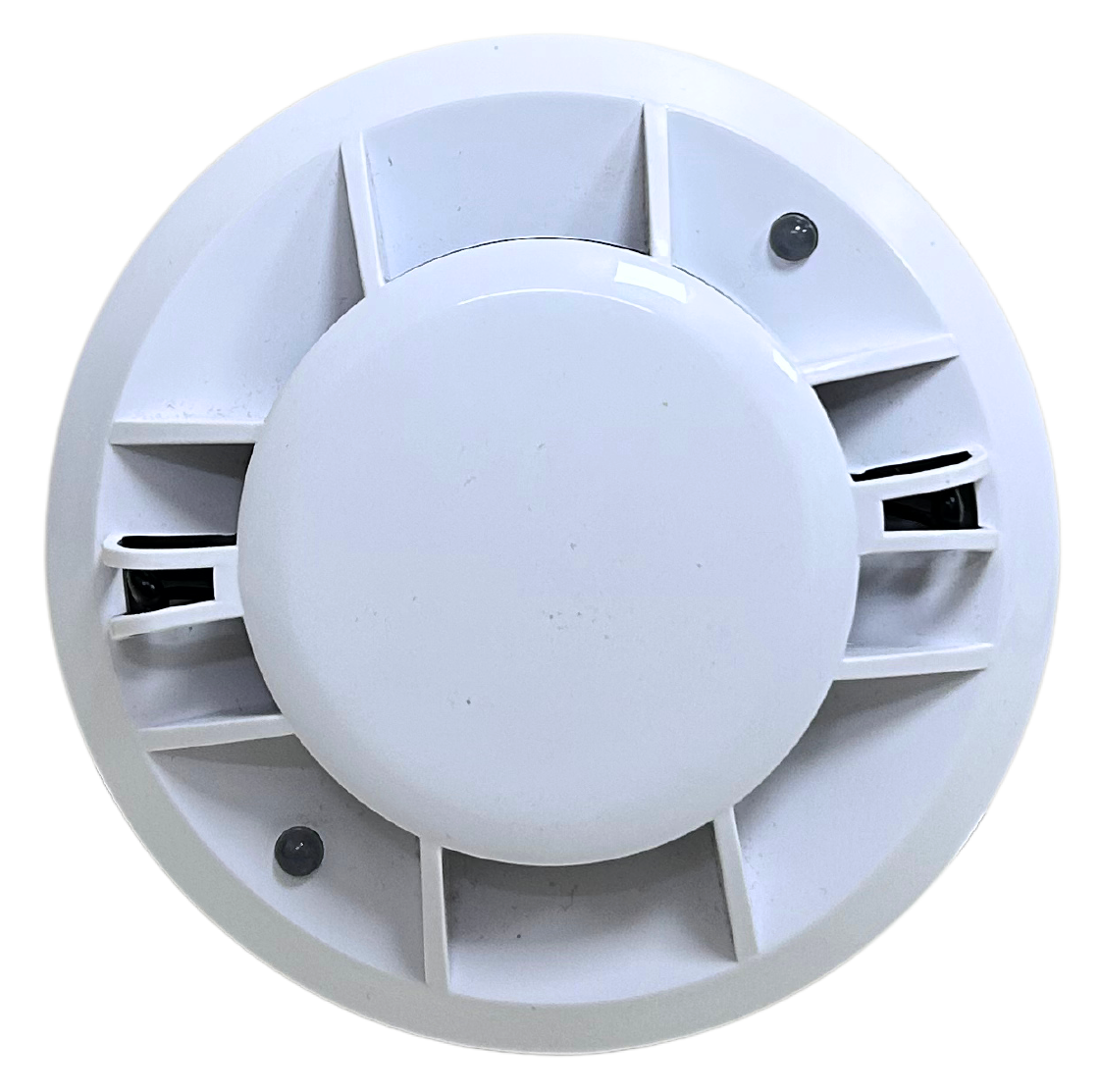

Multi Detector(AS–707–PTH)

Multi Detector(AS–707–PTH)

Categories: ,

Description

Conventional Photo Thermal Multi-Criteria detector with base, AS–707–PTH remote output available, can be connected with any make conventional fire alarm panel.

Additional Information

Technical Specification
Voltage range : 12-28 V dc
Alarm Current : 90 uA @ 24 V dc
Quiescent : 60uA @ 24 V dc
Operating Temp. : O°C to +90°C
Humidity : <95% RH
Coverage : 50 sq. meters
Sensor : Photoelectric
Mechanical Specification
Weight : 135 g approx
Dimensions : 106mm in diameter x 52mm depth
Colour : White
