Conventional MCP(BG–MS–2 )
Conventional MCP(BG–MS–2 ) - Image 2
Conventional MCP(BG–MS–2 ) - Image 3
Conventional MCP(BG–MS–2 ) - Image 4

Conventional MCP(BG–MS–2 )

Category:

Description

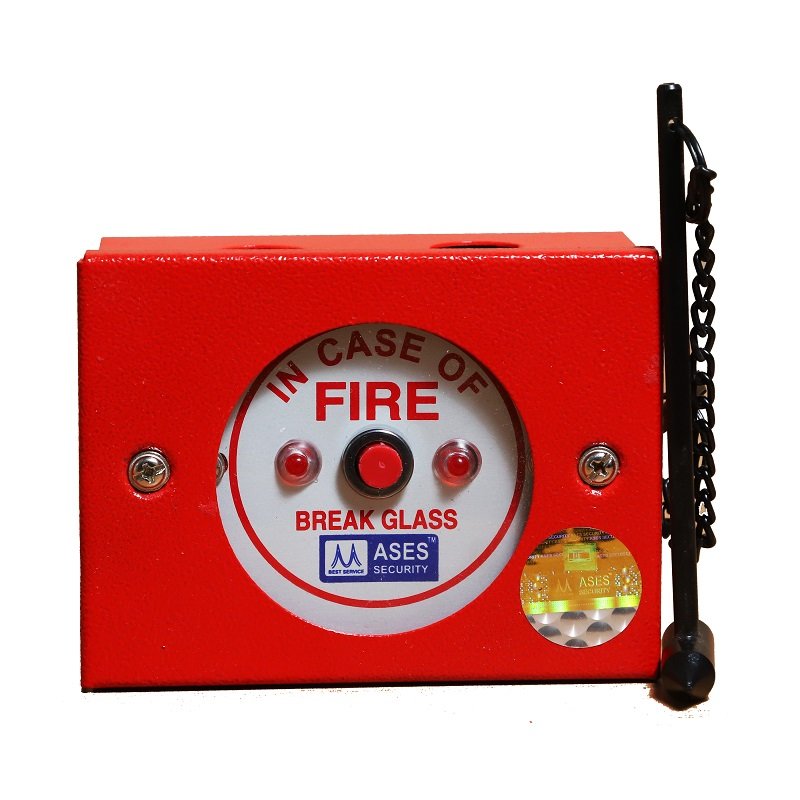

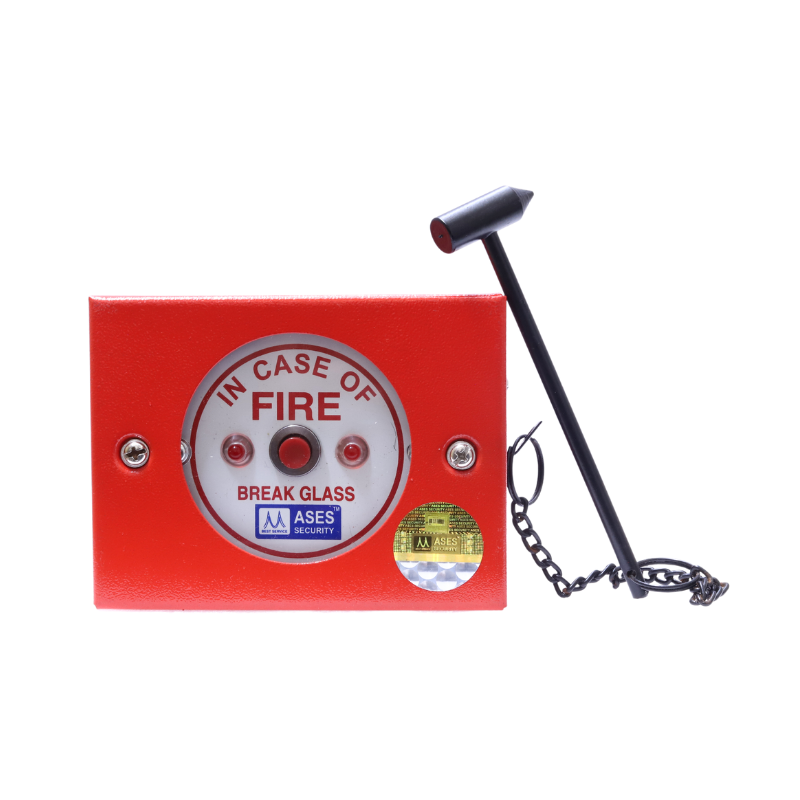

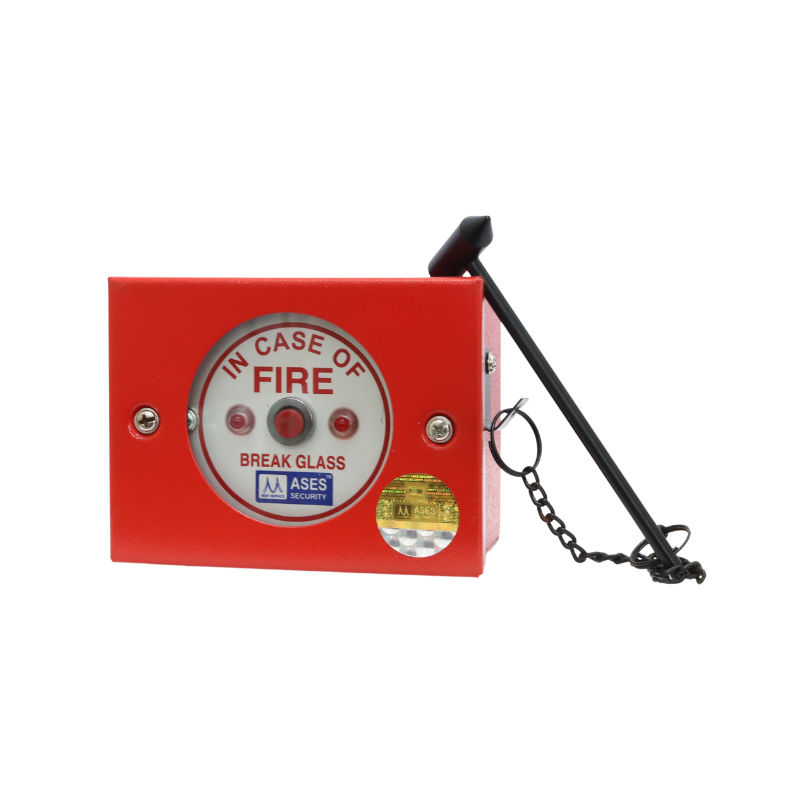

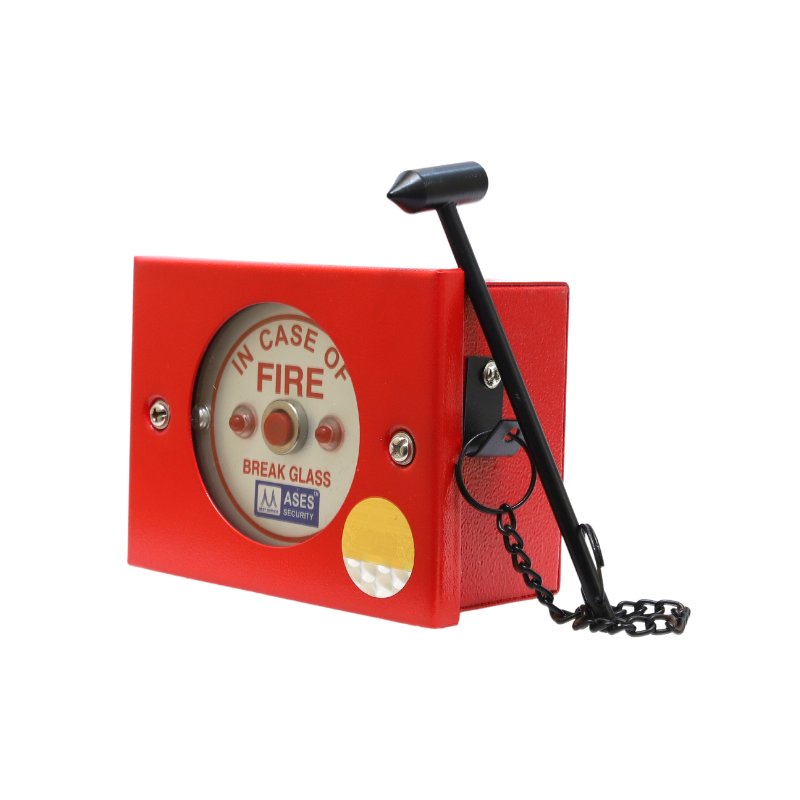

ASES conventional manual call point BG-MS-2 is a call point designed to provide a manual alarm interface to any conventional fire alarm control panel.

Additional Information

Technical Specification
Operating voltage : 24V DC
Current Consumption (Normal/fire) : 150μA/ 60mA@ 24 VDC
Application Temp range : 0° C to 60° C
Humidity : 5 to 95% Relative Humidity (non-condensing)
Housing : CRCA Sheet (1.6 mm thick)
Mechanical Specification
Weight : 475gm
Dimensions : 120 x 95 x 58 (W x H x D)
Colour : Red
