Iris-2-4Z(IR–2Z/4Z)

Iris-2-4Z(IR–2Z/4Z)

Categories: ,

Description

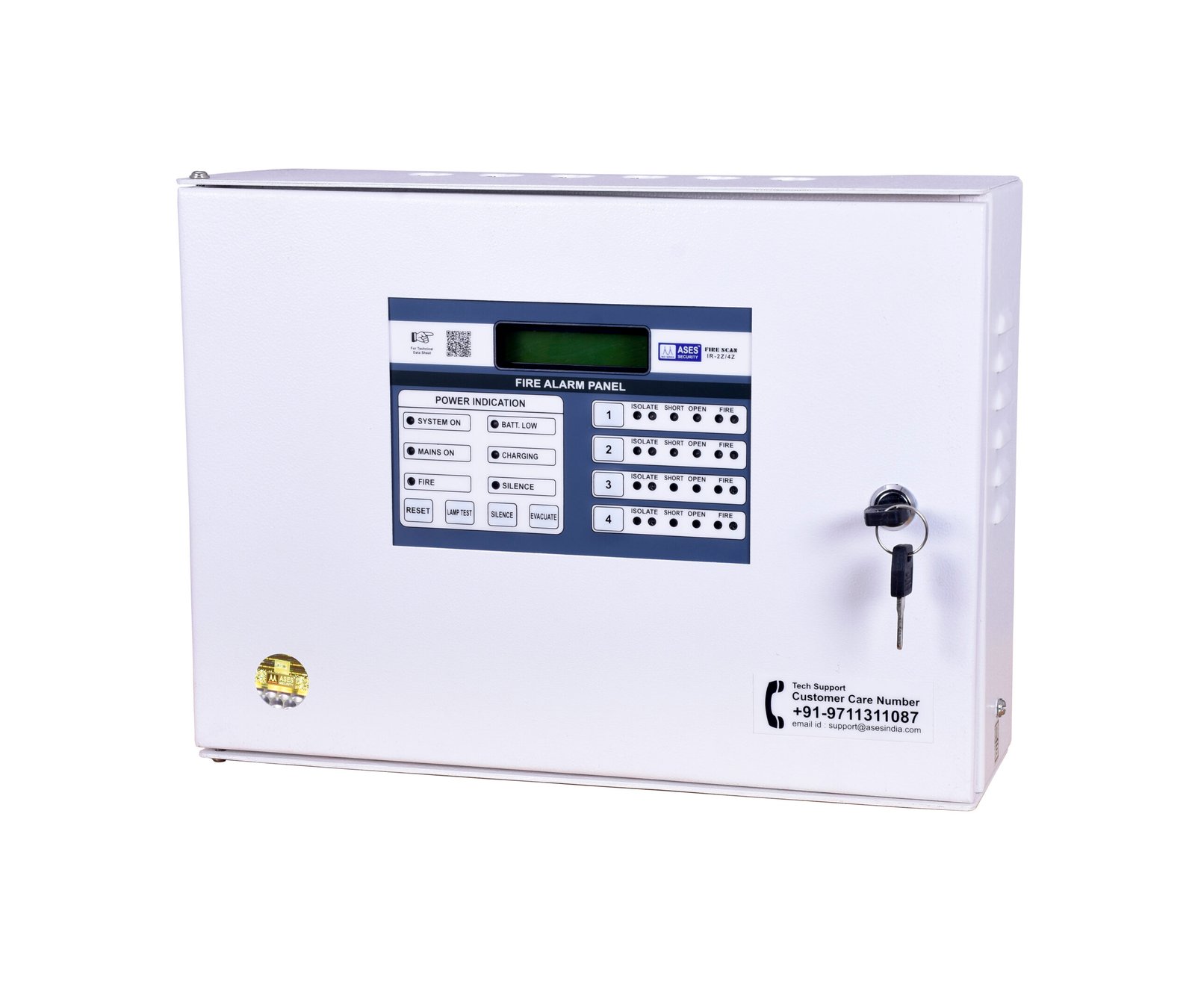

ASES IRIS model IR–2Z/4Z conventional panel has been developed to provide a simple & reliable solution to the demands of today’s fire detection solution. The panels come with two variants 2 Zone & 4 Zone.

Additional Information

Technical Specification
AC Power : 220Vac, 50Hz ± 10%
Standby : 24 V DC
Operating Temperature : 0°C to 55°C
Operating Humidity : 95% (non-condensing)
Normal Zone Voltage : 19.5 -21.5 Vdc
Open Threshold Current : 4.4 mA
Short Threshold Current : 35 mA
Fire Threshold Current : 15 – 35 mA
Input Signal : Normally Closed or Normally Open
Mechanical Specification
Dimensions : 350 x 255 x 105 mm
Weight : 4 Kg (approximate)
Color : Broken white / Red
