XP95 Marine Flame Detector (UV/IR2) – Base Mounted 55000-028MAR

Category: Marin Detector & Device

Description

55000-028MAR

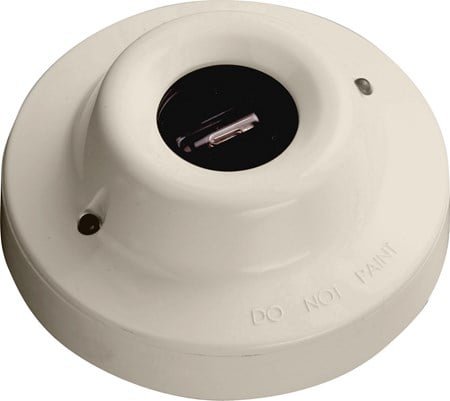

The XP95 Marine Flame Detector (UV/IR2) is designed to protect open indoor areas where open flaming fires may be expected. The detector has a UV and dual IR sensors responding to different wavelengths in order to discriminate between flames and spurious sources of radiation.

Responds to stationary flames with no flicker
Sensitive to low-frequency flickering IR radiation emitted by flames during combustion
Compact flame detector which fits into Discovery Marine bases
Loop-powered
False alarms due to factors such as flickering sunlight are avoided by a combination of filters and signal processing techniques

Enquire in WhatsApp

Additional Information

General	Warranty : 3 year
Mechanical	Colour : White Weight : 150g Materials housing : Polycarbonate Materials terminals : Nickel plated stainless steel Product diameter : 100mm Product depth : 40mm Sensing window material : Quartz Sensing window thickness : 2mm Product depth : 1.57in Product diameter : 3.94in
Conformance	Standards : EN 54-10 Approvals : LR
Performance	Range of view (at 25m) : 0.1m² n-heptane Field of view : 90° Spectral response – IR : 0.75 to 2.7μm Spectral response (max) – IR : 2.7μm Spectral response (min) – IR : 0.75μm Sensitivity High-Class 1 Low-Class 3 Chamber type : Chevron
Electrical	Protocol voltage : 5 to 9V peak to peak Protocol voltage (max) : 9V Protocol voltage (min) : 5V Power-up surge current : 9mA Maximum power-up time : 4 seconds Quiescent current : 2500μA Supply voltage (max) : 28V dc Supply voltage (min) : 17V dc Supply voltage (Vmin-Vmax) : 17 to 28V dc
Environmental	Humidity (max) : 95% RH Humidity (min) : 0% RH Humidity Note : no condensation or icing Humidity : 0% to 95% (no condensation or icing) Operating temperature : -40 to 70°C Operating temperature (max) : 70°C Operating temperature (min) : -40°C IP rating Value : IP66 Storage temperature (max) : 70°C Storage temperature (min) : -40°C Storage temperature : -40 to 70°C Operating temperature : -40 to 158°F Operating temperature (max) : 158°F Operating temperature (min) : -40°F
