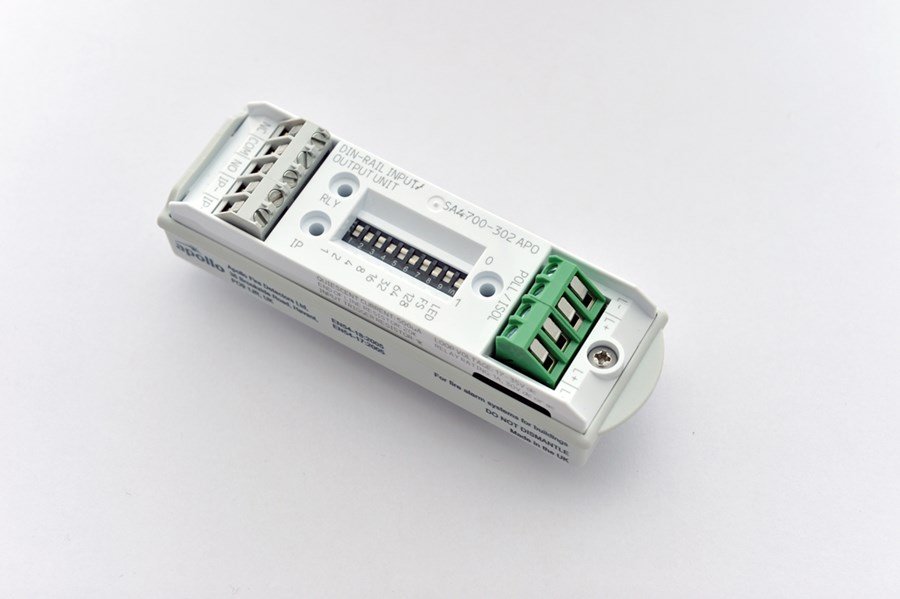

Intelligent DIN-Rail Input/Output Module SA4700-302APO
Intelligent DIN-Rail Input/Output Module SA4700-302APO - Image 2

Intelligent DIN-Rail Input/Output Module SA4700-302APO

Category:

Description

SA4700-302APO

The Intelligent DIN-Rail Input/Output Module is used to monitor single pole, volt free contact inputs and control relay output contacts.

  • EN 54-17 & EN 54-18 Certified
  • Meets BS 7273-4 failsafe requirements
  • Ergonomic design for ease of wiring and faster installation
  • Allows DIN-Rail mounting
  • XP95, Discovery and CoreProtocol compatible



Additional Information

General
Warranty  :  10 year
Mechanical
Colour  :  White
Weight  :  48.4g
Product length  :  33mm
Product width  :  102mm
Product depth  :  33mm
Relay output contact rating  :  1A
Relay output rating tested at  :  30V ac
Product length  :  1.3in
Product width  :  4.02in
Product depth  :  1.3in
Conformance
Standards  :  EN 54-17
             EN 54-18



Approvals
FG

LPCB

SBSC

VdS

BOSEC

CPR


Electrical
Protocol voltage (min)  : 5V
Protocol voltage (max)  :  13V
Protocol voltage  :  5 to 13V peak to peak
Quiescent current  :  500μA
Quiescent current tested at  :  24V dc
Supply voltage (max)  :  35V dc
Supply voltage (min)  :  17V dc
Supply voltage (Vmin-Vmax)  :  17 to 35V dc
Relay contact ratings  :  1A
Contact rating tested at  :  30V
Environmental
Humidity  :  0% to 95% (no condensation or icing)
Humidity Note  :  no condensation or icing
Humidity (max)  :  95% RH
Humidity (min)  :  0% RH
Operating temperature  :  -40 to 70°C
Operating temperature (max)  :  70°C
Operating temperature (min)  :  -40°C
Operating temperature  :  -40 to 158°F
Operating temperature (max)  :  158°F
Operating temperature (min)  :  -40°F
