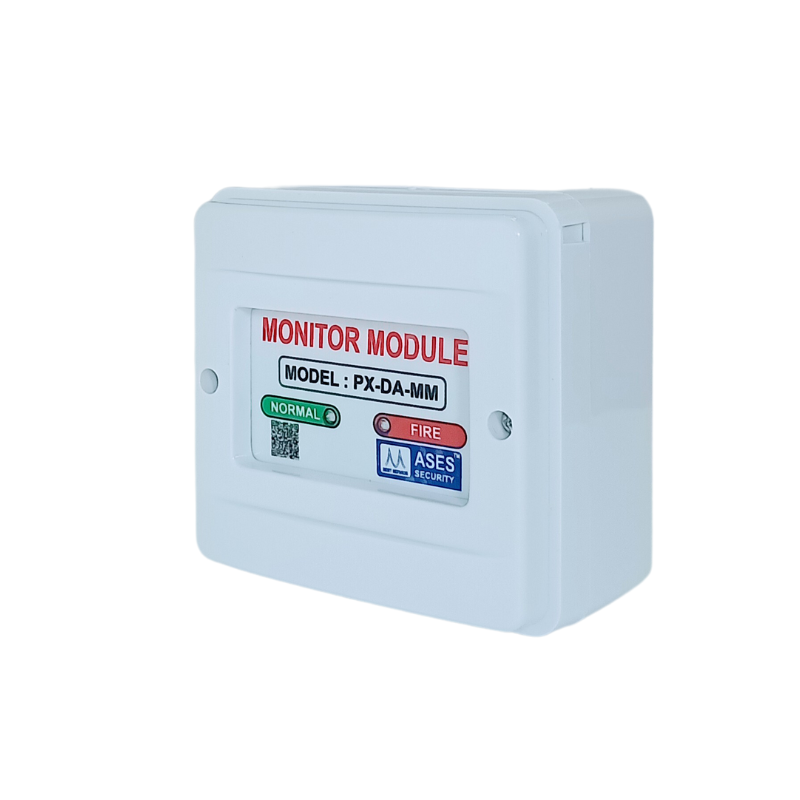

Monitor Module( PX–DA–MM)
Monitor Module( PX–DA–MM) - Image 2
Monitor Module( PX–DA–MM) - Image 3
Monitor Module( PX–DA–MM) - Image 4

Monitor Module( PX–DA–MM)

Category:

Description

Addressable Monitor modules are used to supervise a circuit of dry-contact input devices. PX-DA-MM offers a single input dry contact for integration of any third-party devices not connected.

Additional Information

Technical Specification
Operating Voltage : 24V DC
Current Consumption (Normal /Fire) : 150μ1N 60mA @ 24 VDC
Application Temperature Range : 0° C to + 60° C
Humidity : 95% Relative Humidity (non condensing)
Housing : ABS
Mechanical Specification
Weight : 80gm
Dimensions (mm) : 100 x 93 x 53 (W x H x D)
Color : White
