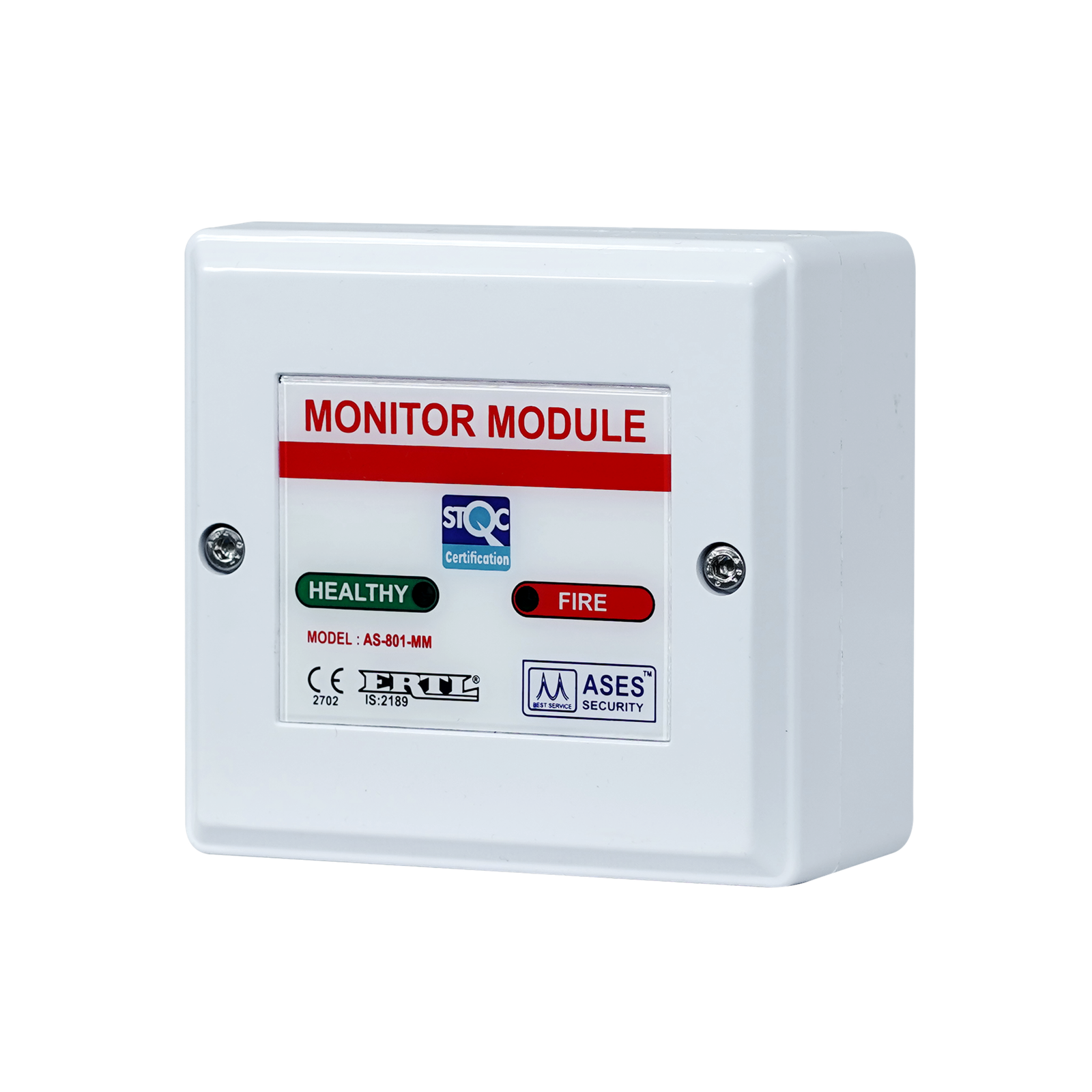

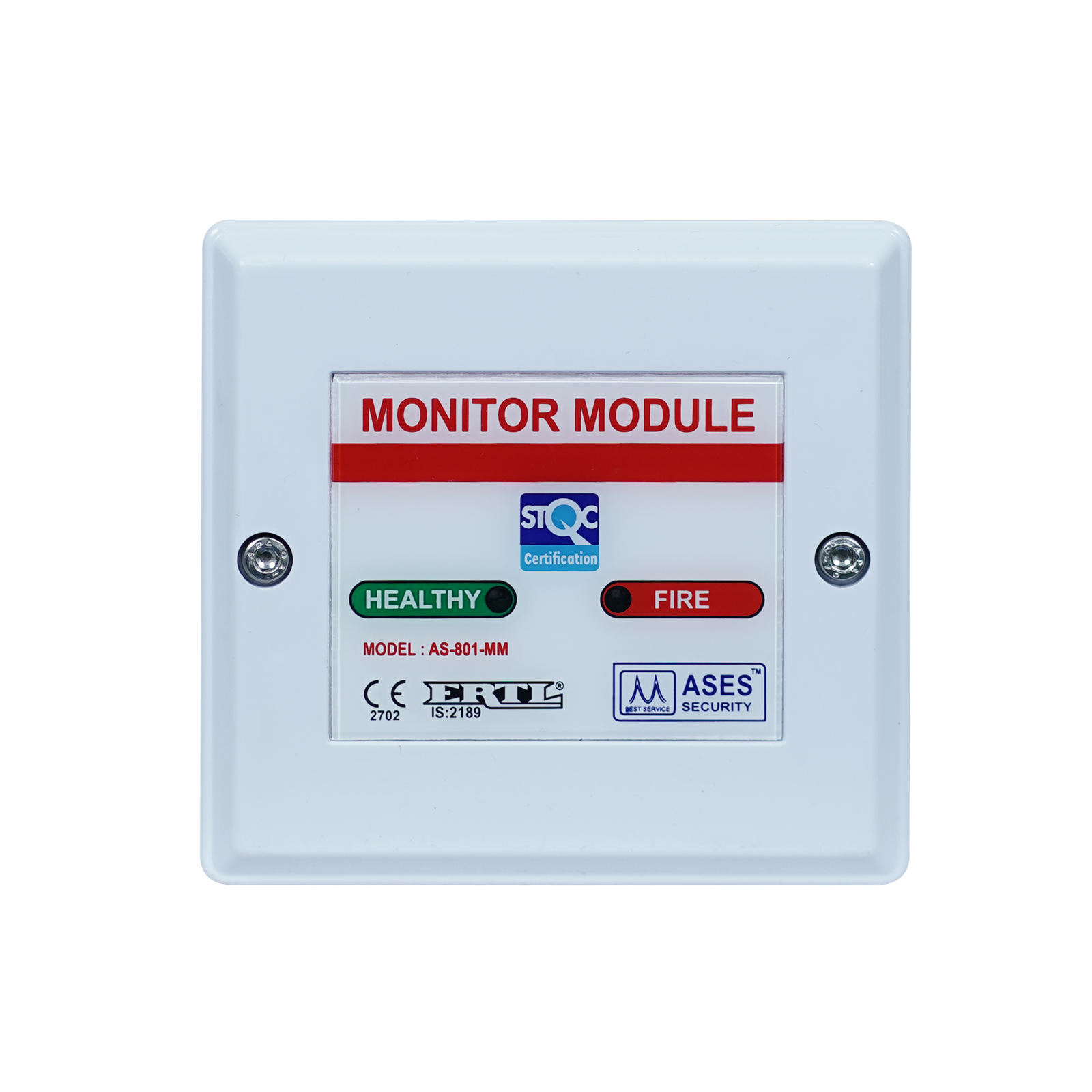

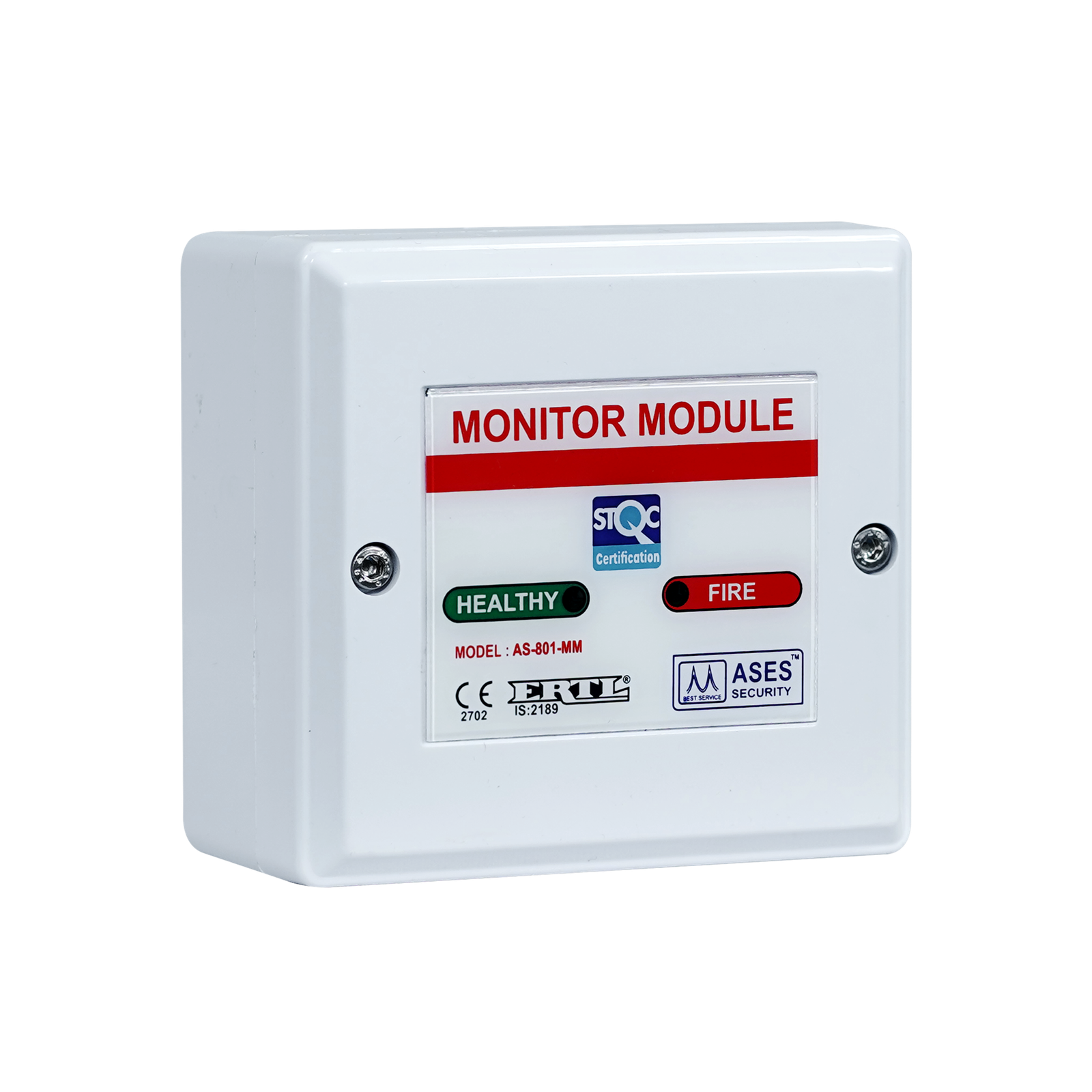

Monitor Module(AS-801-MM)
Categories:
Addressable Fire Alarm, Fire Alarm & Detection System
Description
ASES Monitor/Input Module AS-801-MM is used to receive normally open or normally closed control signals from interfaced equipment and transmit the messages back to the fire alarm control panel
Enquire in WhatsApp
Additional Information
Technical Specification
Operating Loop Voltage : 22-24 Vdc
Standby Current : 4 mA
Alarm Current : 8 mA
Indicators : Green LED Blink for Normal, RED,LED solid for activating Case
Programming Method : Electronically Addressed
Storage Temperature : -10C to +70C
Operating Temperature : -10C to +60C
Material of Enclosure : ABS
Mechanical Specification
Dimensions : (W×H xD) 95 x 100 x 53
Weight : 150 g approx
