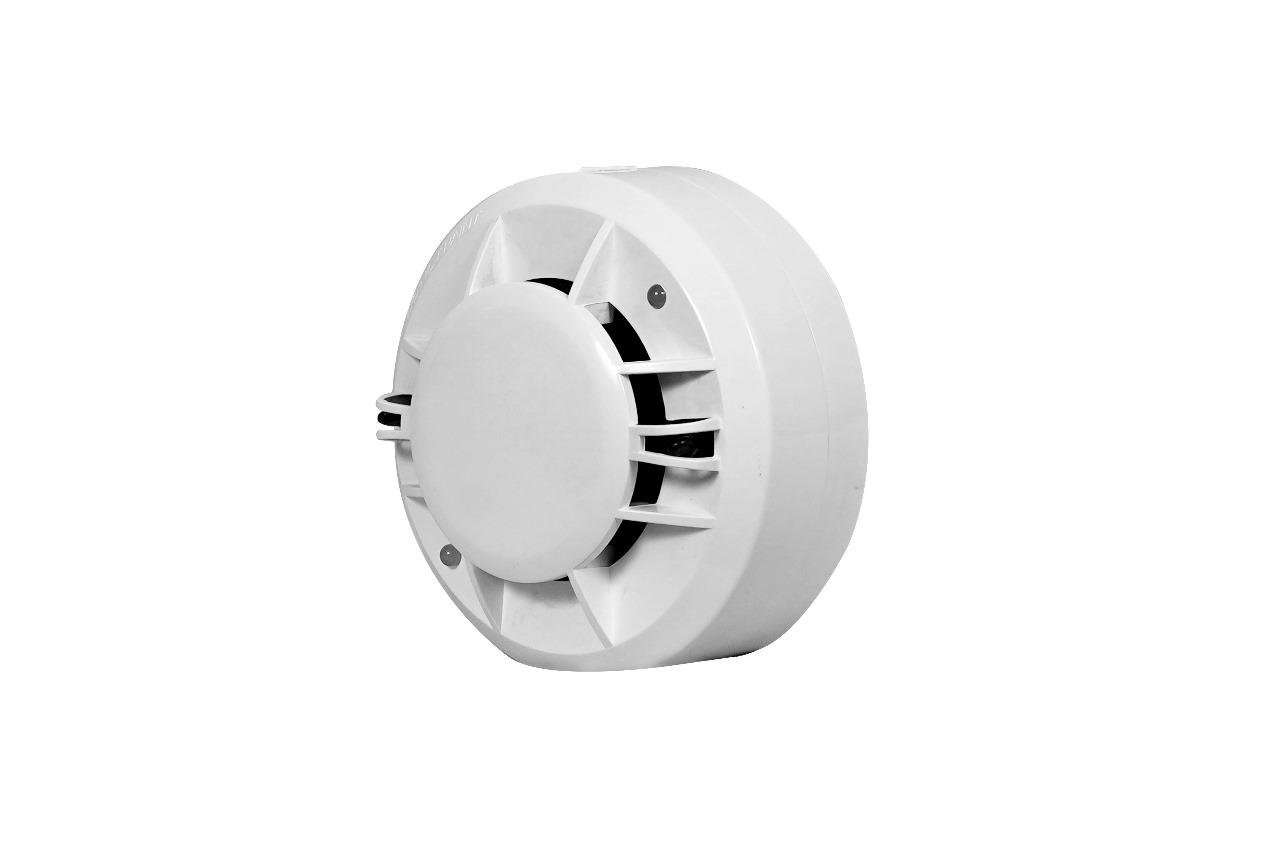

Multi Detector(AS-801-PTD)

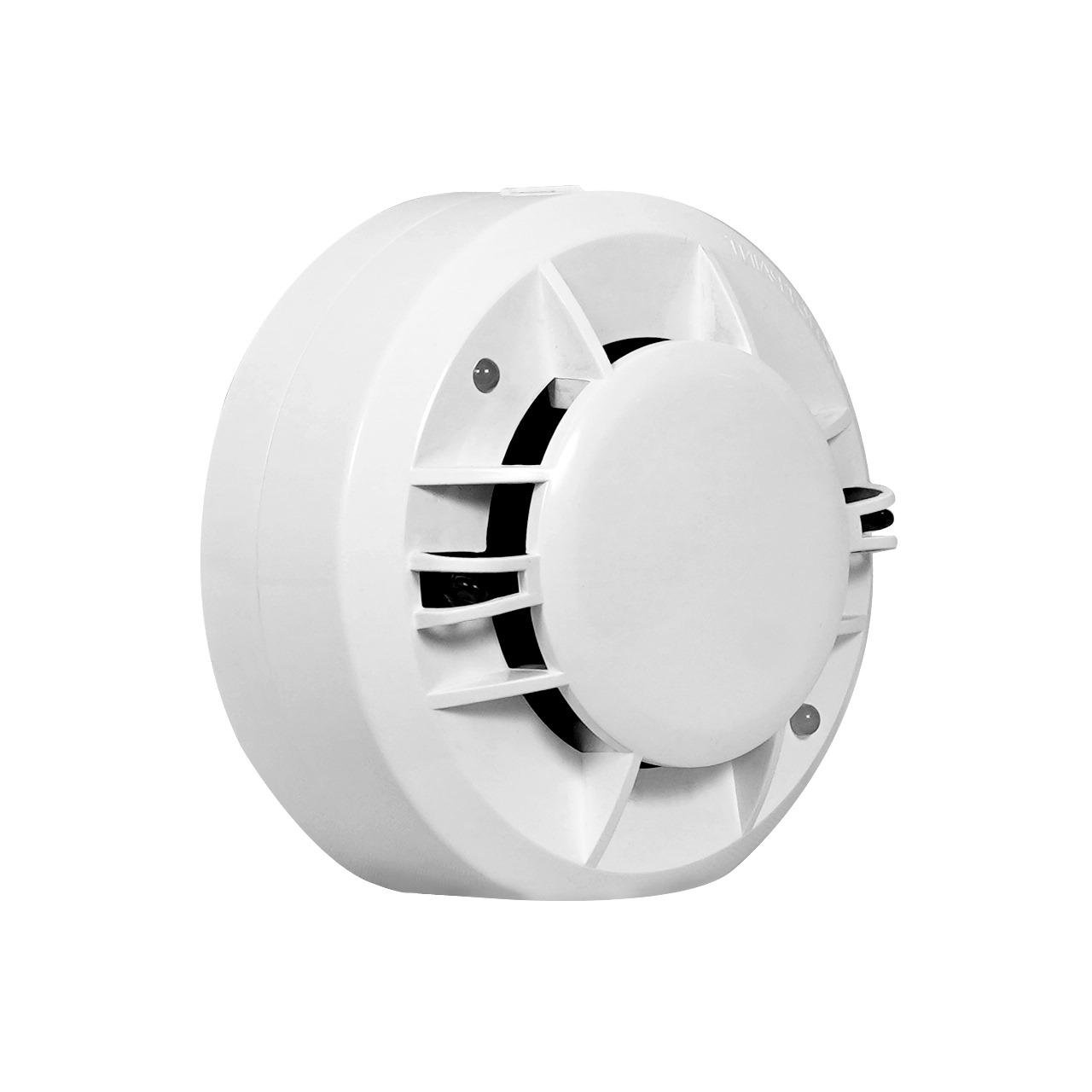

Multi Detector(AS-801-PTD) - Image 2

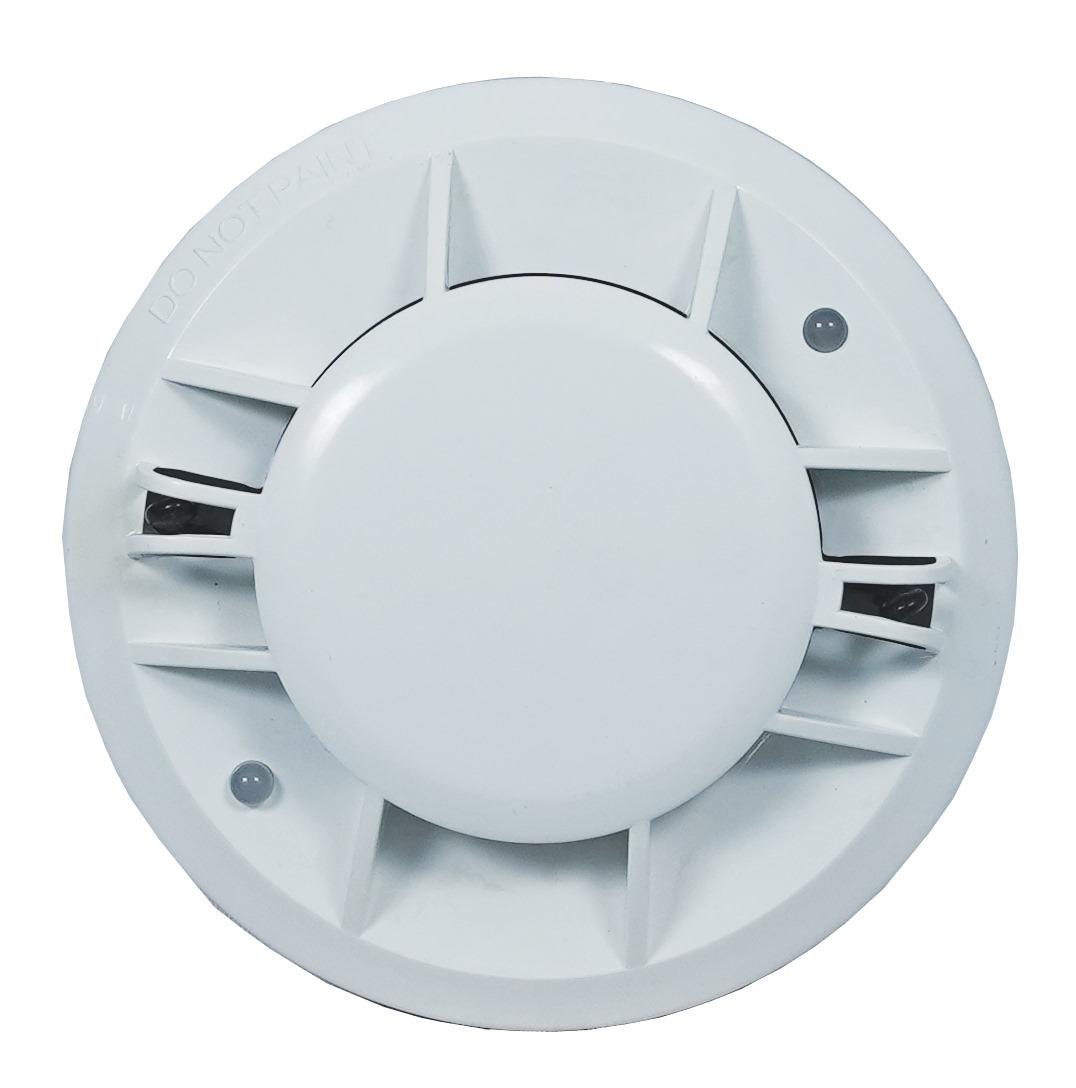

Multi Detector(AS-801-PTD) - Image 3

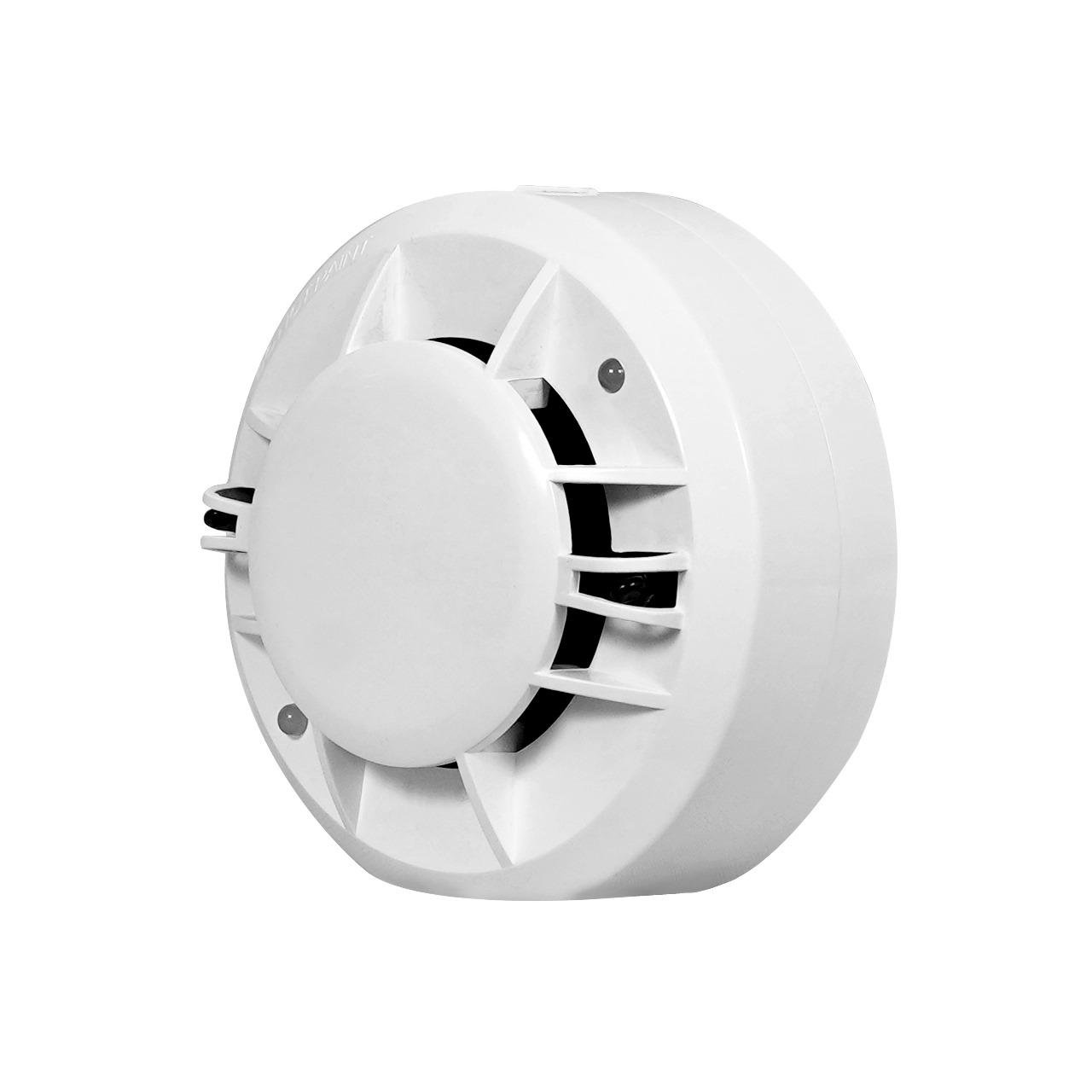

Multi Detector(AS-801-PTD) - Image 4

Multi Detector(AS-801-PTD)

Categories: ,

Description

Digital Intelligent Multi-Sensor – AS-801-PHD integrates photoelectric detection and fixed temperature detection technology by combining smoke sensors.

Additional Information

Technical Specification
Operating Loop Voltage : 22-24 Vdc
Standby Current : 4 mA
Alarm Current : 8 mA (without remote indicator) 20 mA (with remote indicator)
Fire LED : Green. Flashes every 3sGreen. Flashes every 3s normally. RED Steadily.
Detection principle : Smoke: Photo-electric detection of light scattered by smoke particles Heat: Temperature-sensitive resistance.
Response Temperature : 58 C
Environment Temperature : -10 C to 60 C
Relative Humidity : 5% – 95% Rh
Material of Enclosure : ABS
