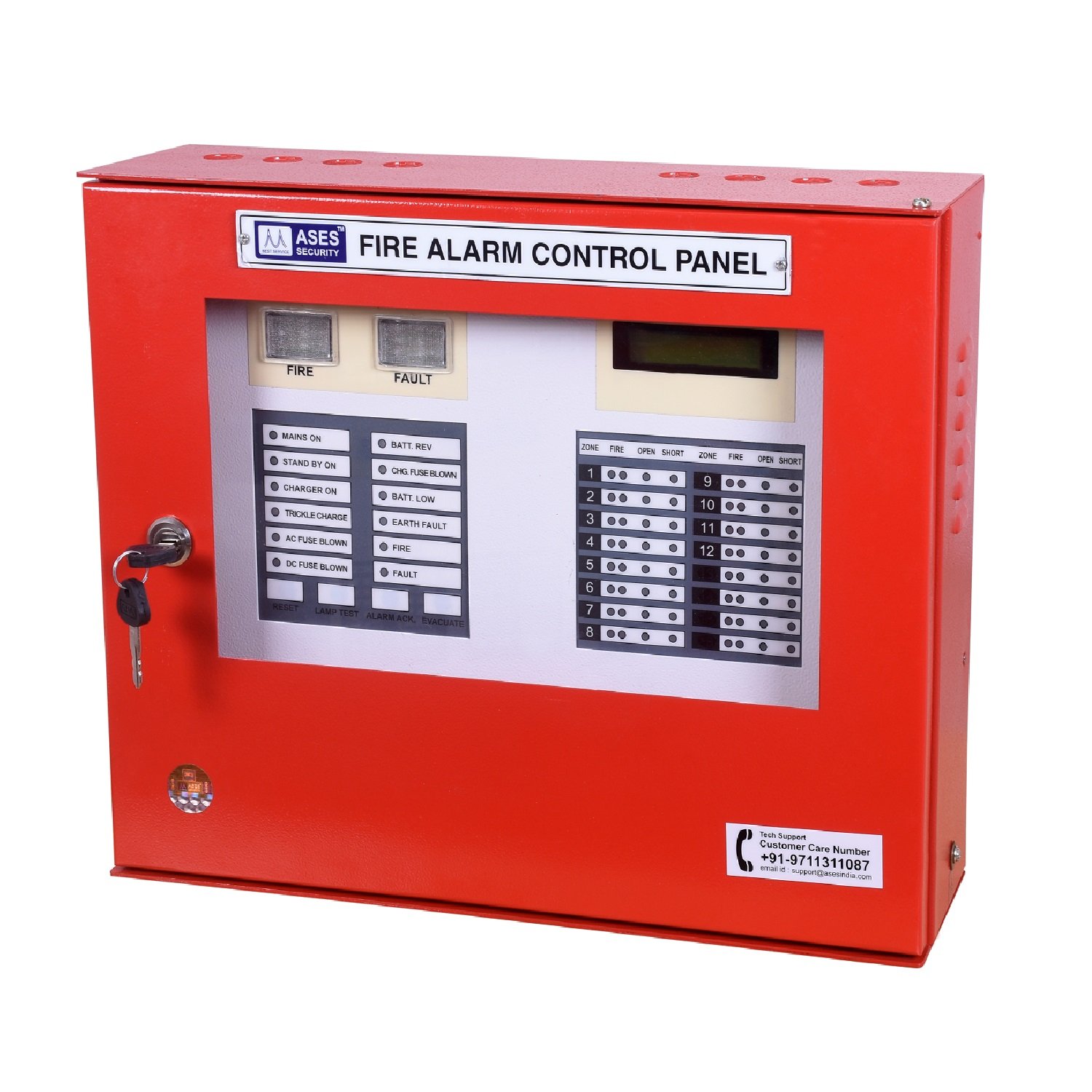

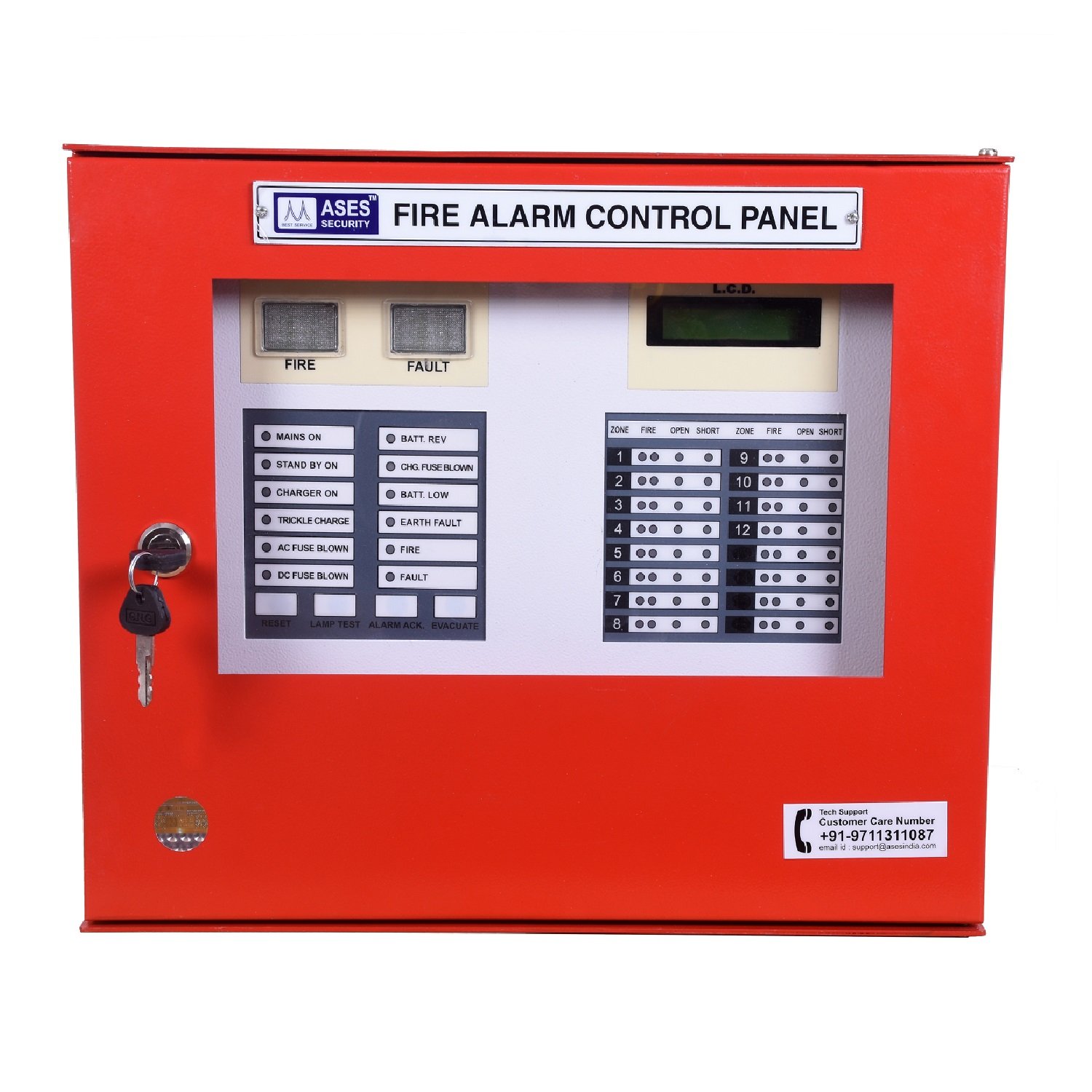

Precision Panel(PR–10Z/32Z/48Z)
Precision Panel(PR–10Z/32Z/48Z) - Image 2
Precision Panel(PR–10Z/32Z/48Z) - Image 3

Precision Panel(PR–10Z/32Z/48Z)

Categories: ,

Description

ASES Precision model conventional panel has been developed to provide a simple & reliable solution to the demands of today’s fire detection solution. This model is designed friendly & cost-effective.

Additional Information

Technical Specification
Power supply : 230 V AC, 50 Hz / 24 V DC
Operating Voltage : 24 V DC
Normal Loop Voltage : 19.5-23.5V DC
Alarm o/p : 24 V DC
E.O.L. : 4K 7
Color of the Panel : Siemens Gray/Marble White/Red
Communication Wise : Single pair of twisted cables.
Mechanical Specification
Dimensions : 350 x 425 x 125 mm
Weight : 8 Kg (Without Battery)
