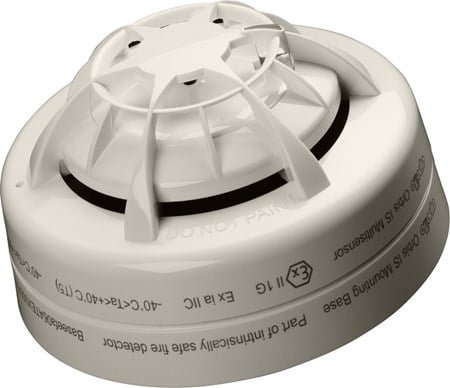

Orbis I.S. Multi-Sensor Detector (Optical/Heat) – Flashing LED ORB-OH-53028-APO

Category: Intrinsically safe Detector & Device

Description

ORB-OH-53028-APO

The Orbis I.S. Multi-Sensor Detector benefits from the same false alarm technology as the Optical Smoke Detector with the addition of a heat sensing element.

Reduces false alarms
Sensitive to fast burning, flaming fires
Improved sensitivity to black smoke
Compensation for slow changes in sensitivity
Algorithms for reliability of alarm
Not available for the UK market

Enquire in WhatsApp

Additional Information

General	Warranty : 10 year Applications Clean rooms Dusty environments Hazardous areas Offshore platforms Refineries Small to medium buildings Warehouses Fire Type : Fast and slow burning fires
Mechanical	Colour : White Sensor configuration : Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier. Weight : 80g Materials housing : Polycarbonate Product length : 50mm Product diameter : 100mm Detection principle Photo-electric light scattering. Temperature sensitive resistance. Product length : 1.97in Product diameter : 3.94in Product height (wo/base) : 50mm
Conformance	Approvals BV LR LPCB IECEx DNV.GL BASEEFA BOSEC CCS CPR PESO (CCoE) ABS MED
Performance	Chamber type : Chevron
Electrical	Maximum power-up time : <20 seconds Quiescent current : 85μA Quiescent current tested at : 24V dc Polarity : L1 & L2 are polarity sensitive Sampling frequency : Once every 4 seconds Minimum ‘detector active’ voltage : 12V Holding voltage (min) : 5V Minimum voltage to light alarm LED : 6V Alarm reset voltage : <1V Alarm reset time : 1s
Environmental	Humidity (max) : 98% RH Humidity (min) : 0% RH Humidity Note : no condensation or icing Humidity : 0% to 98% (no condensation or icing) IP rating Value : IP23D Storage temperature (max) : 70°C Storage temperature (min) : -40°C Storage temperature : -40 to 70°C
