XP95 Exd Flame Detector (IR3) – Flameproof 55000-021APO

Category: Intrinsically safe Detector & Device

Description

55000-021APO

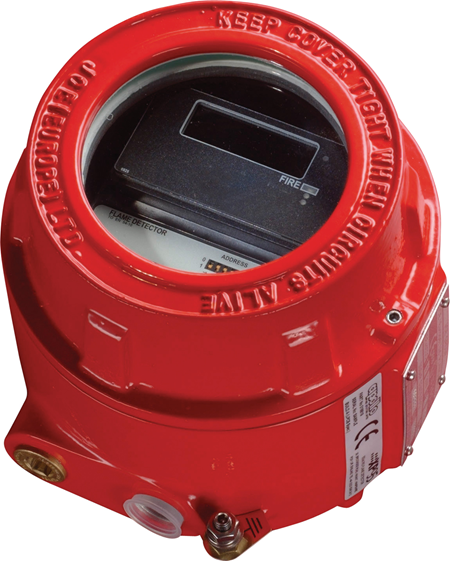

The XP95 Exd Flame Detector (IR3) is designed to protect areas where open flaming fires may be expected. It is sensitive to low frequency, flickering infra-red radiation emitted by flames during combustion.

Loop-powered
Sensitive to flickering IR radiation
Detects through films of oil, dust, water and ice
Responds to flickering flames, including those invisible to the naked eye
False alarms due to lighting or flickering sunlight are minimised
Compatible with Discovery and XP95 protocols

Enquire in WhatsApp

Additional Information

General	Warranty : 3 year
Mechanical	Colour : Red Weight : 2500g Materials housing : Copper Free Aluminium Product width : 146mm Product depth : 137mm Product width : 5.75in Product depth : 5.39in
Conformance	Approvals BASEEFA CPR LPCB IECEx
Environmental	Humidity (max) : 95% RH Humidity (min) : 0% RH Humidity Note : no condensation or icing Humidity : 0% to 95% (no condensation or icing) Operating temperature : -10 to 55°C Operating temperature (max) : 55°C Operating temperature (min) : -10°C Storage temperature (max) : 65°C Storage temperature (min) : -20°C Storage temperature : -20 to 65°C Operating temperature : 14 to 131°F Operating temperature (max) : 131°F Operating temperature (min) : 14°F
