XP95 Exd Flame Detector (IR2) – Flameproof 55000-295APO

Category: Intrinsically safe Detector & Device

Description

55000-295APO

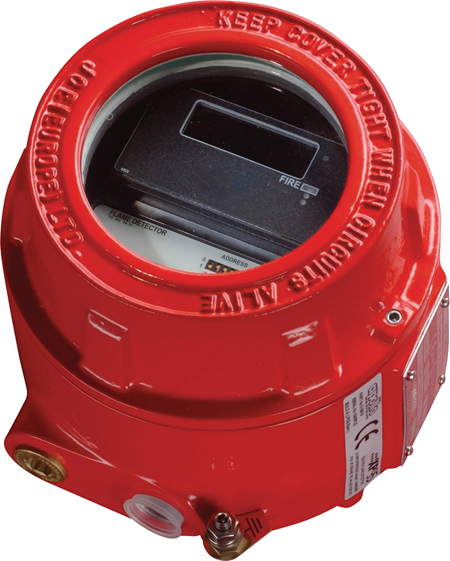

The XP95 Exd Flame Detector (IR2) is designed for hazardous environments in indoor applications. The detector has two sensors which respond to different IR wavelengths to distinguish between flames and spurious sources of radiation.

Sensitive to flickering IR radiation
Detects through films of oil, dust, water and ice
Responds to flickering flames, including those invisible to the naked eye
Compatible with Discovery and XP95 protocols
Remote optical self-test function
90° field of view
Up to 40m coverage
IP66 rated

Enquire in WhatsApp

Additional Information

General	Warranty : 3 year
Mechanical	Colour : Red Weight : 2500g Materials housing : Copper Free Aluminium Product length : 150mm Product width : 146mm Product depth : 137mm Number of cable gland entries : 3 Cable gland entries size : 20mm Product length : 5.91in Product width : 5.75in Product depth : 5.39in
Conformance	Approvals BASEEFA CCS CPR LPCB IECEx
Performance	Range of view (at 25m) : 0.1m² n-heptane Range of view (at 35m) : 0.2m² n-heptane Range of view (at 45m) : 0.4m² n-heptane Field of view : 90° Sensitivity : High-Class 1 Low-Class 3
Electrical	Quiescent current : 2200μA Supply voltage (max) : 30V dc Supply voltage (min) : 14V dc Supply voltage (Vmin-Vmax) : 14 to 30V dc
Environmental	Humidity (max) : 95% RH Humidity (min) : 0% RH Humidity Note : no condensation or icing Humidity : 0% to 95% (no condensation or icing) Operating temperature : -10 to 55°C Operating temperature (max) : 55°C Operating temperature (min) : -10°C IP rating Value : IP66 Storage temperature (max) : 65°C Storage temperature (min) : -20°C Storage temperature : -20 to 65°C Operating temperature : 14 to 131°F Operating temperature (max) : 131°F Operating temperature (min) : 14°F
