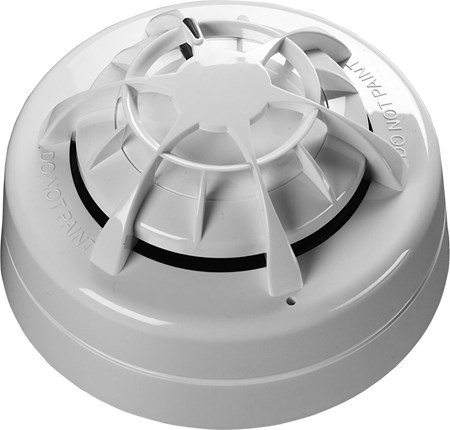

Orbis Marine Multi-Sensor Detector (Optical/Heat) ORB-OH-43001-MAR

Orbis Marine Multi-Sensor Detector (Optical/Heat) ORB-OH-43001-MAR

Category:

Description

ORB-OH-43001-MAR

The Orbis Marine Multisensor Detector benefits from the same false alarm reduction technology as the optical detector, with the addition of a heat sensing element.

  • Responds well to fastburning, flaming fires
  • Reduced false alarms
  • Increased reliability of detection
  • Sensing chamber keeps out dust and other airborne contaminants
  • Operates over a broad range of voltages at extremes of temperature
  • Flashing LED option

Additional Information

General
Warranty  :  10 year
Applications  :  Bedrooms
                  Dusty environments

Marine

Fire Type  :  Fast and slow burning fires
Mechanical
Colour  :  White
Sensor configuration  :  Chamber with surface-mount infrared emmiter and prism. Solid state integrated photo-diode and amplifier.
Weight  :  80g
Materials housing  :  Polycarbonate
Product length  :  42mm
Product diameter  :  97mm
Detection principle  :  Photo-electric light scattering.
Product length  :  1.65in
Product diameter  :  3.82in
Product height (wo/base)  :  42mm
Conformance
Approvals  :  BV
              LR

DNV.GL

CCS

ABS

MED
Performance
Chamber type  :  Chevron
Electrical
Quiescent current  :  95μA
Quiescent current tested at  :  24V dc
Polarity  :  L1 & L2 are polarity sensitive
Sampling frequency  :  Once every 4 seconds
Minimum ‘detector active’ voltage  :  6V
Holding voltage (max)  :  33V
Holding voltage (min)  :  5V
Holding voltage  :  5 to 33V
Minimum voltage to light alarm LED  :  5V
Alarm reset voltage  :  <1V
Alarm reset time  :  1s
Alarm load  :  600Ω
Environmental
Humidity (max)  :  98% RH
Humidity (min)  :  0% RH
Humidity Note  :  no condensation or icing
Humidity  :  0% to 98% (no condensation or icing)
Operating temperature  :  -40 to 70°C
Operating temperature (max)  :  70°C
Operating temperature (min)  :  -40°C
IP rating Value  :  IP44
Storage temperature (max)  :  70°C
Storage temperature (min)  :  -40°C
Storage temperature  :  -40 to 70°C
Operating temperature (min)  :  -40°F
Operating temperature (max)  :  158°F
Operating temperature  :  -40 to 158°F
