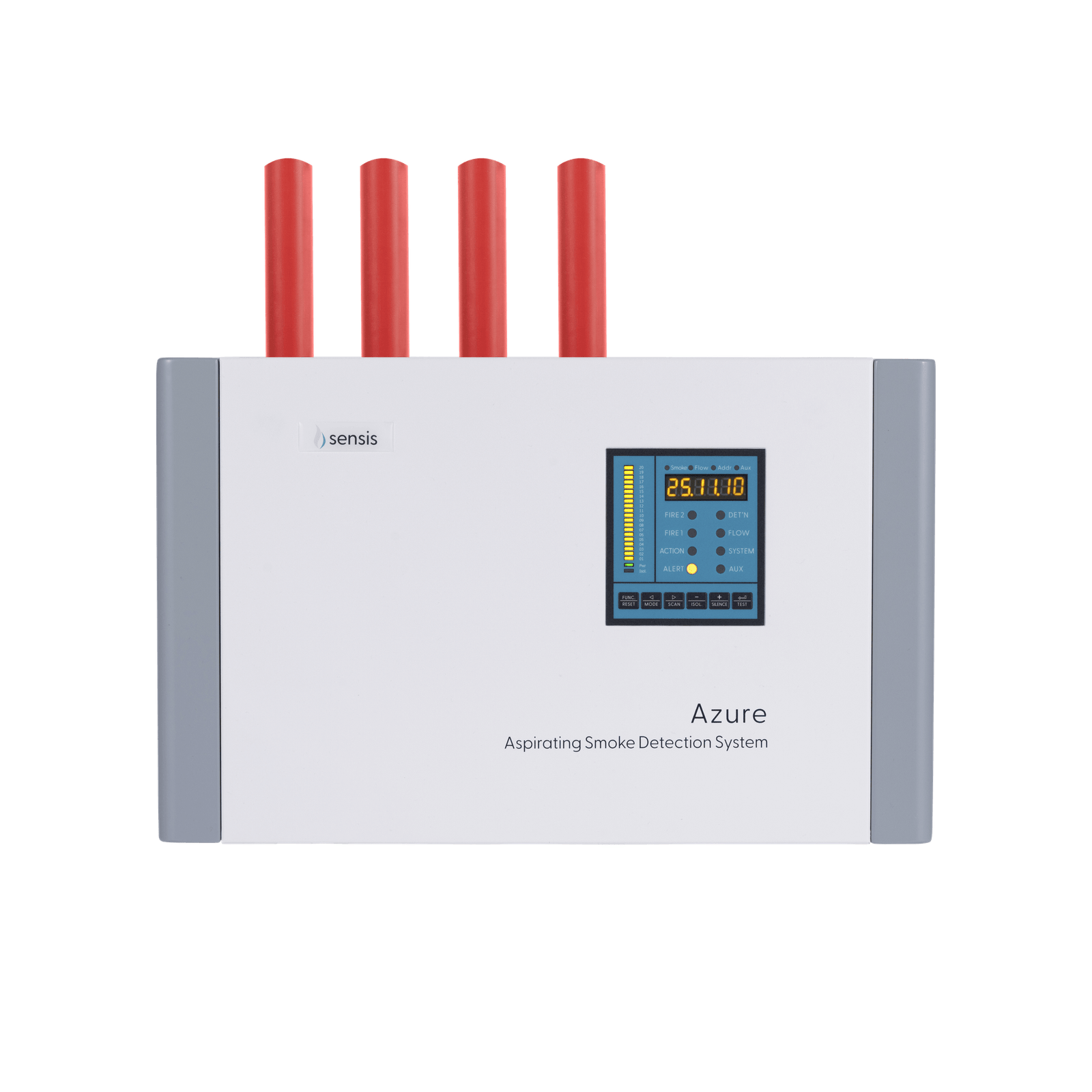

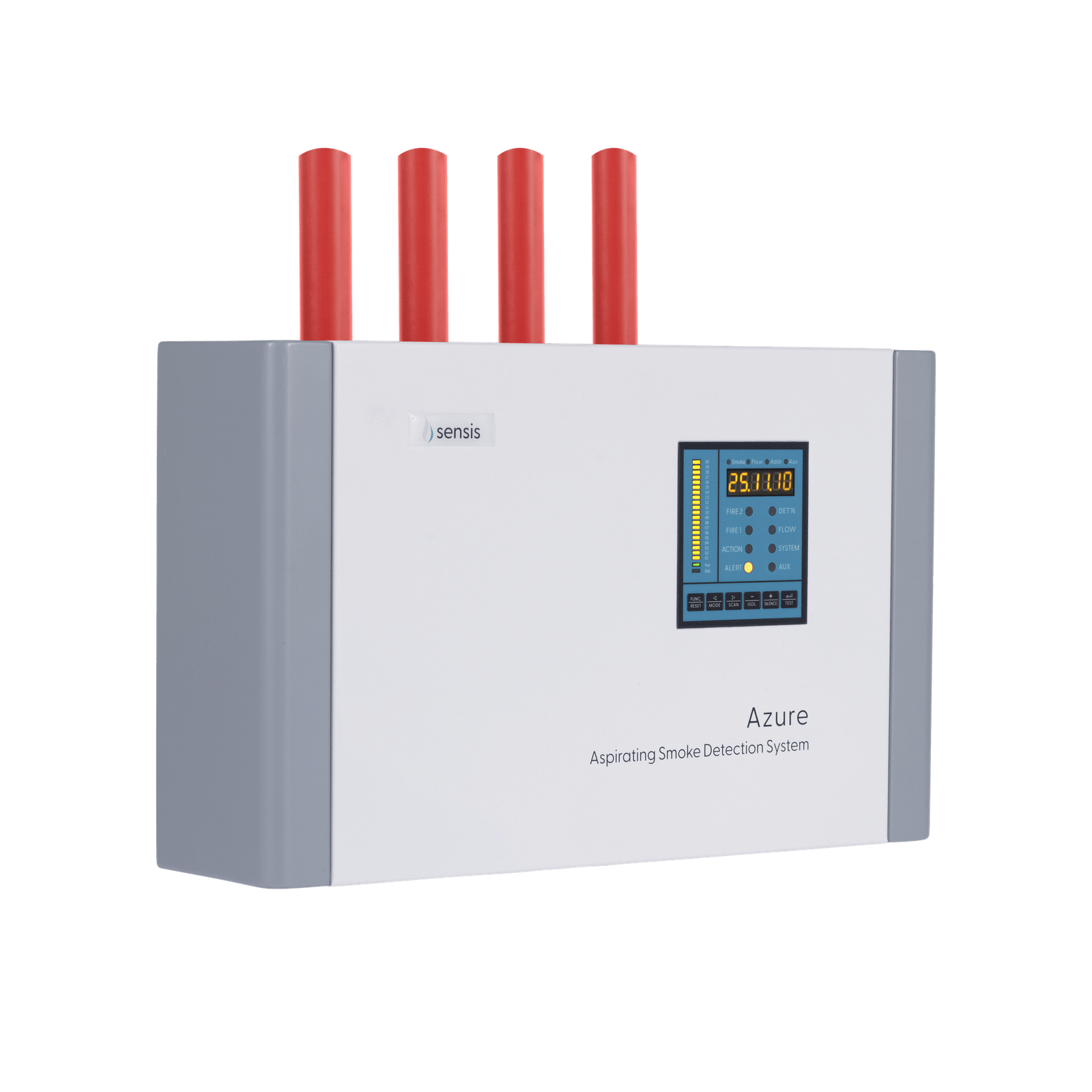

Sensis™ Azure 2000s: Four-pipe, high-performance aspirating smoke detection
Category:
Beam and Flam Detector
Description
The Sensis Azure 2000s is a high-performance four-pipe aspirating smoke detection system, purpose-built for protecting extensive open spaces and challenging environments. Its multi-pipe design allows wide coverage and optional individual pipe zone alarms, making it ideal for large facilities where early, reliable detection is critical
Enquire in WhatsApp
Additional Information
Key Features
- Very Early Warning DetectionAlarm sensitivity range of 0.005–20% obs/m, protecting areas up to 2,000 m². Ideal for large open spaces and challenging applications
- Four-Pipe, Four-Aspirator DesignIndependent airflow monitoring across up to four pipes, including zone relay (4A16) for pinpoint detection
- Intuitive 3-in-1 displayFront panel with 20-segment bar graph, real-time smoke/flow readings, event log, plus dedicated Reset, Isolate, Silence, and Test functions without extra tools
- Flexible I/O and Networking7 configurable relays (plus 16 zone relays on 4A16 model), 8 general-purpose inputs, and RS-485 with Modbus RTU support for seamless system integration
Key Benefits
- Rapid Fire ResponseDetects smoke at the earliest possible stage, buying crucial time for safe evacuation and swift intervention
- Flexible Coverage & ZoningFour-pipe configuration enables wide area protection or targeted detection of critical zones, giving installers design flexibility and users peace of mind
- Reliable Performance in Demanding EnvironmentsBlue LED technology and SSL learning maintain sensitivity while cutting down on false alarms caused by dust, airflow, or environmental changes
- Easy Setup & OperationClear real-time display and configurable settings make installation and commissioning quicker and more straightforward for installers, without the need for additional tools
Sensis® Azure 2000s Products
Part No. Description Approval 4500-100 Sensis Azure 500s EN 4020-100 Sensis Azure 2000s (1A) EN 4021-100 Sensis Azure 2000s (4A) EN 4022-100 Sensis Azure 2000s (4A16) (Pipe scanning & zone relays) EN Accessories for use with Sensis® Azure 2000sPart No. Description Compatibility 4800-000 Sensis Network Interface Module (NIM-1200) All Sensis Detectors 4800-001 Sensis Network Control Panel (NCP-1215) All Sensis Detectors 4800-002 Sensis In-Line Filter 25mm All Sensis Detectors 4800-003 RS485 to USB Converter All Sensis Detectors 4800-004 Sensis Azure Dual Stage Filter Replacement filter for Azure 500s and 2000s models 4800-005 Sensis 2.4A Power Supply Unit All Sensis Detectors. Additional battery box may be required for 2000s models
