Series 65 Marine Flame Detector (UV) – Base Mounted 55000-026MAR

Category: Marin Detector & Device

Description

55000-026MAR

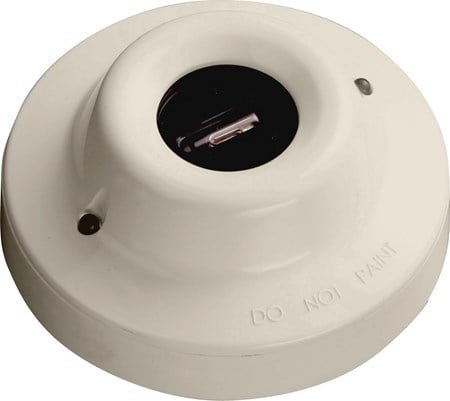

The Series 65 Marine Flame Detector (UV) is designed to protect enclosed indoor areas where open flaming fires may be expected. The detector has a fast acting response to flames up to 25m away and is equipped with a single UV sensor with a narrow spectral response in order to discriminate between flames and most spurious sources of radiation.

Responds to stationary flames with no flicker
Sensitive to UV radiation emitted by flames during combustion
Compact flame detector which fits into 45681-200MAR base
Zone-powered

Enquire in WhatsApp

Additional Information

General	Warranty : 3 year Applications : Car parks/loading bays Hospitals Industrial premises Warehouses Fire Type : Fast burning, flaming fires
Mechanical	Colour : White Weight : 150g Materials housing : Polycarbonate Materials terminals : Nickel plated stainless steel Product diameter : 100mm Product depth : 40mm Product depth : 1.57in Product diameter : 3.94in
Conformance	Approvals : CCS ABS MED
Performance	Range of view (at 25m) : 0.1m² n-heptane Field of view : 90° Spectral response (min) – UV : 0.185μm Spectral response (max) – UV : 0.26μm Spectral response – UV : 0.185 to 0.26μm Sensitivity : High-Class 1
Electrical	Quiescent current : 550μA Supply voltage (max) : 28V dc Supply voltage (min) : 17V dc Supply voltage (Vmin-Vmax) : 17 to 28V dc Holding voltage (min) : 6V Minimum voltage to light alarm LED : 12V Alarm reset voltage : <1V Alarm reset time : 1s Alarm load : 420Ω in series with 2V drop
Environmental	Humidity (max) : 95% RH Humidity (min) : 0% RH Humidity Note : no condensation or icing Humidity : 0% to 95% (no condensation or icing) Operating temperature : -40 to 70°C Operating temperature (max) : 70°C Operating temperature (min) : -40°C IP rating Value : IP66 Storage temperature (max) : 85°C Storage temperature (min) : -40°C Storage temperature : -40 to 85°C Operating temperature : -40 to 158°F Operating temperature (max) : 158°F Operating temperature (min) : -40°F
