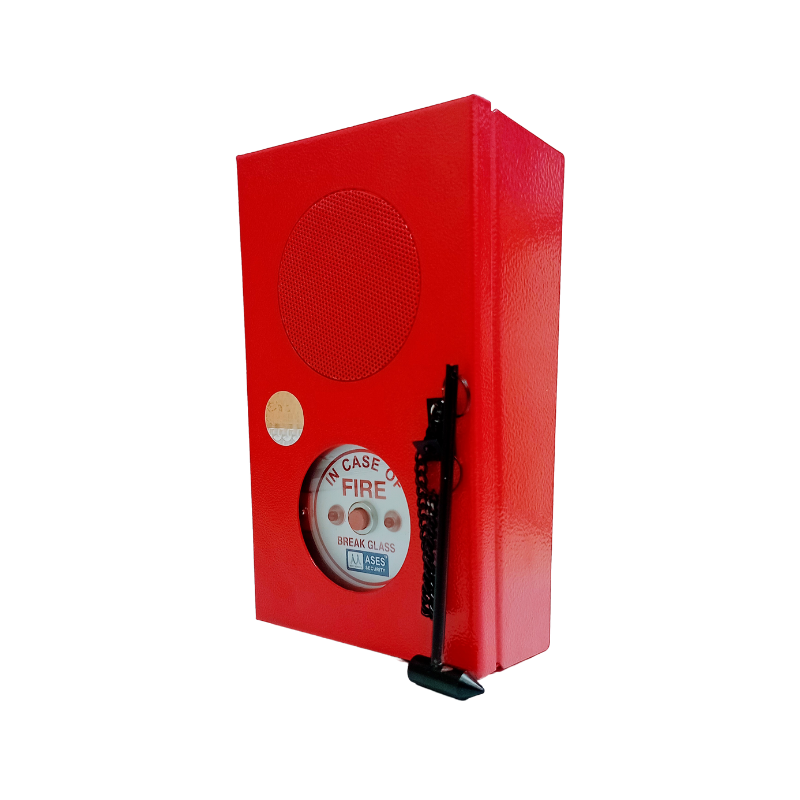

Sounder with MCP(BGH-MS-2)

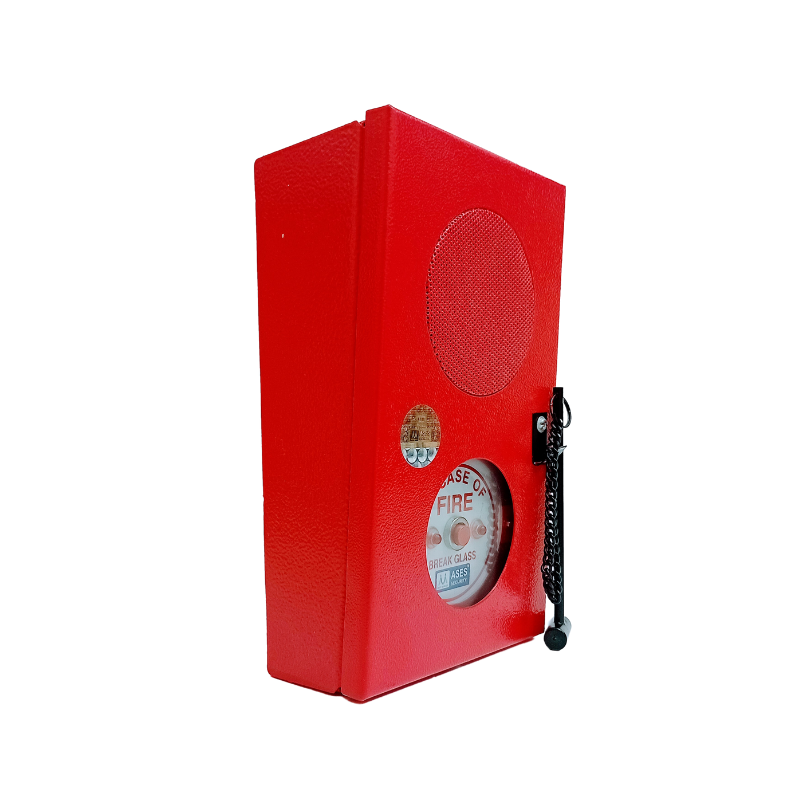

Sounder with MCP(BGH-MS-2) - Image 2

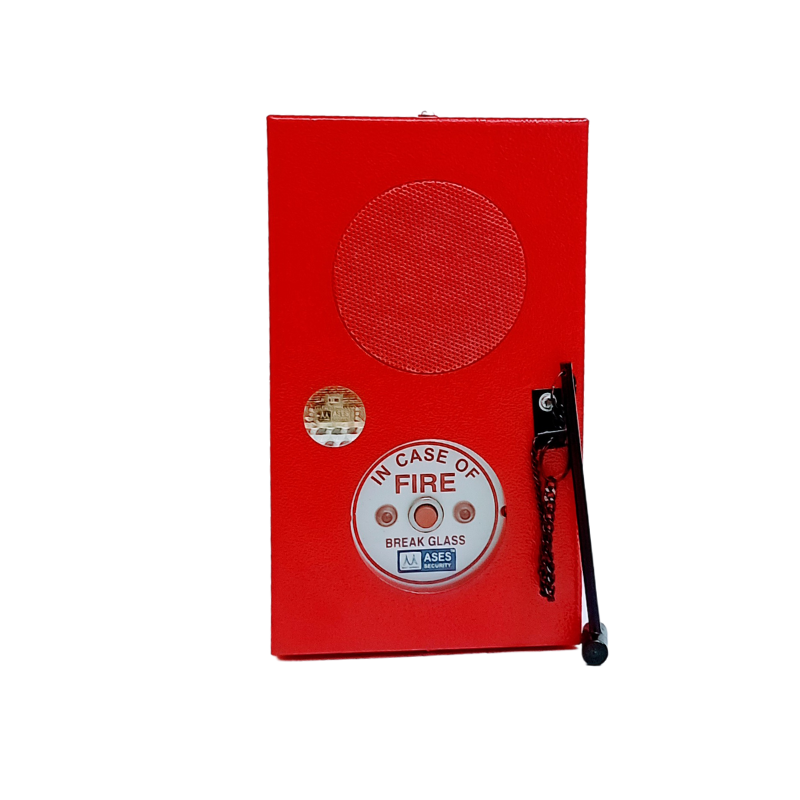

Sounder with MCP(BGH-MS-2) - Image 3

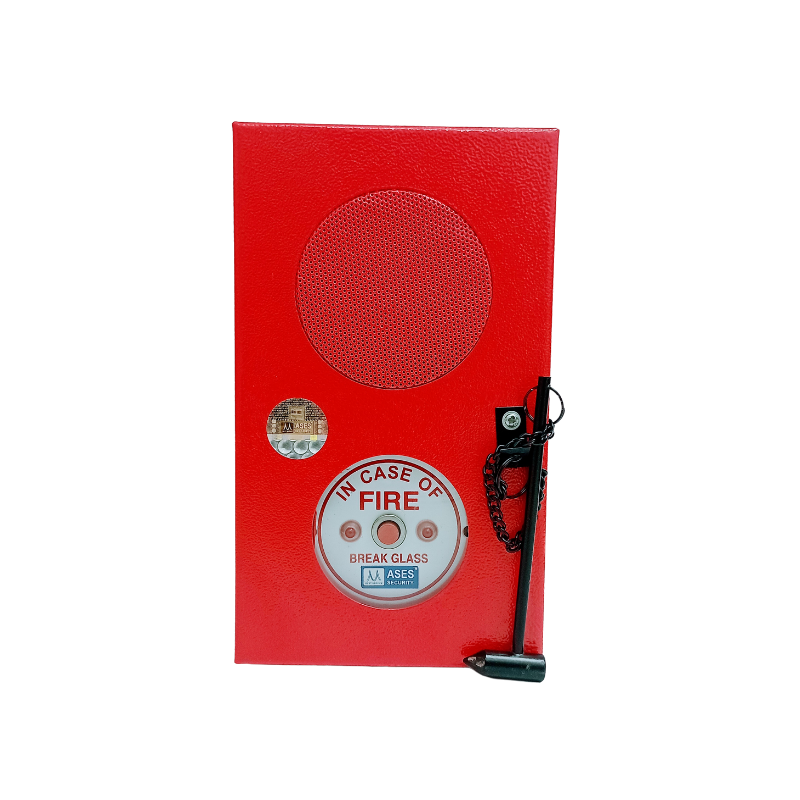

Sounder with MCP(BGH-MS-2) - Image 4

Sounder with MCP(BGH-MS-2)

Categories: ,

Description

ASES Conventional Sounder with MCP BGH-MS-2 is an audio notification device used to alert trained personnel to investigate possible emergency situations and to take appropriate action during fire detection.

Additional Information

Technical Specification
Housing : CRCA Sheet
Input Voltage : 220 AC
Current consumption : 250mA@ 24 VDC
Relative Humidity : 5 to 95% Relative Humidity (non condensing)
Operating Temperature : 0°C to + 60°C
Mechanical Specification
Weight : 1.2 KG
Dimensions (mm) : 220 x 130 x 75 (H x W x D)
Colour : Red
