Special Device(BH-MS-MHST)
Special Device(BH-MS-MHST) - Image 2

Special Device(BH-MS-MHST)

Categories: ,

Description

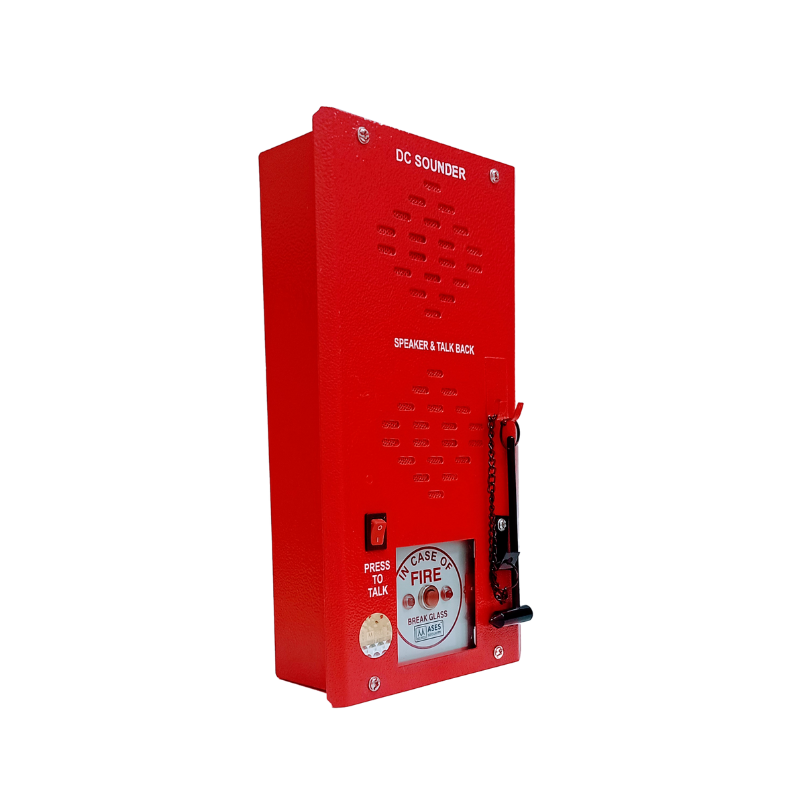

ASES Conventional Hooter Cum Speaker Cum Talkback BH-MS-MHST Unit 3 in 1 unit is the combined set of hooter, PA speaker cum Talkback and MCB unit.

Additional Information

Technical Specification
Sounder 24 v DC Sound : O/P 80 – 100 DB (Upto 10 feet)
Current consumption : 120-130 mA @ 24 VDC
Speaker Cum Talkback
Operating Voltage : 24 V DC
Speaker : Talkback O/P 70-100 V AC
Sound : O/P 100 DB (Upto 10 feet)
Speaker talkback wattage : 5 Watt (ASES)
Manual call point
Operating Voltage : 19.5-23.5 V DC
Current Consumption (Normal /Fire) : NA / 30MA
Visual Indication : Duel LED (RED Colour)
Mechanical Specification
Housing : 16 SWG MS Sheet
Color : Red
Dimension : 310X168X75 (in mm)
Weight : 2 Kg
