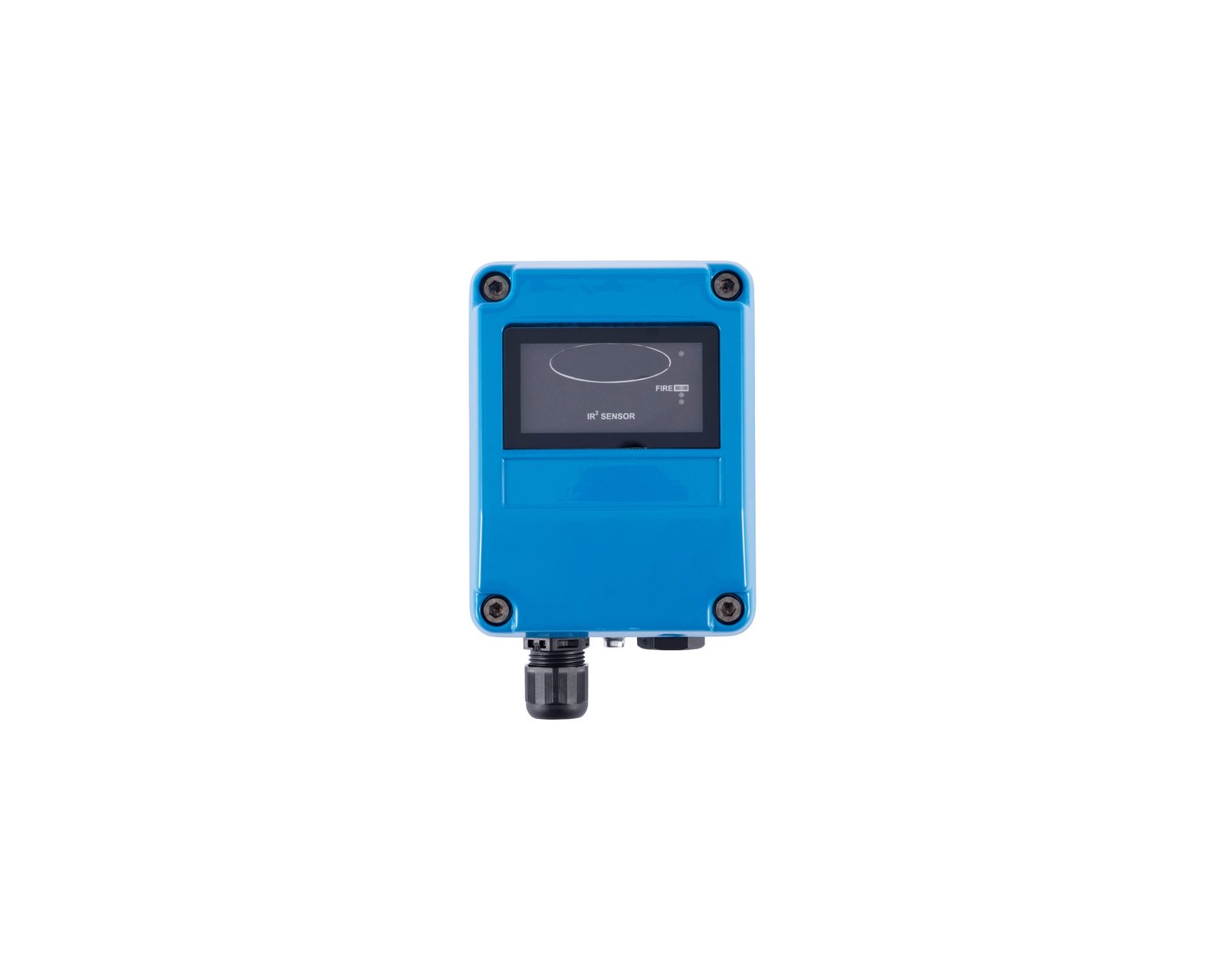

XP95 Flame Detector (IR2) 55000-280APO

Category: Fire Alarm & Detection System

Description

55000-280APO

The XP95 Flame Detector (IR2) is designed for use in areas where flaming fires may be expected. The detector has two sensors which respond to different IR wavelengths to discriminate between flames and spurious sources of radiation.

Sensitive to flickering IR radiation
Detects through films of oil, dust, water and ice
Responds to flickering flames, including those invisible to the naked eye
Compatible with Discovery and XP95 protocols
Remote optical self-test function
90° field of view
Up to 40m coverage

Enquire in WhatsApp

Additional Information

General	Warranty : 3 year
Mechanical	Colour : Blue Weight : 1000g Materials housing : Die-cast zinc alloy Product length : 142mm Product width : 108mm Product depth : 82mm Number of cable gland entries : 2 Cable gland entries size : 20mm Product length : 5.59in Product width : 4.25in Product depth : 3.23in
Conformance	Approvals CPR FG LPCB
Performance	Range of view (at 25m) : 0.1m² n-heptane Range of view (at 35m) : 0.2m² n-heptane Range of view (at 45m) : 0.4m² n-heptane Field of view : 90° Sensitivity : High-Class 1 Low-Class 3
Electrical	Maximum power-up time : 4 seconds Quiescent current : 2200μA Supply voltage (max) : 28V dc Supply voltage (min) : 17V dc Supply voltage (Vmin-Vmax) : 17 to 28V dc
Environmental	Humidity (max) : 95% RH Humidity (min) : 0% RH Humidity Note : no condensation or icing Humidity : 0% to 95% (no condensation or icing) Operating temperature : -10 to 55°C Operating temperature (max) : 55°C Operating temperature (min) : -10°C IP rating Value : IP65 Storage temperature (max) : 65°C Storage temperature (min) : -20°C Storage temperature : -20 to 65°C Operating temperature : 14 to 131°F Operating temperature (max) : 131°F Operating temperature (min) : 14°F
