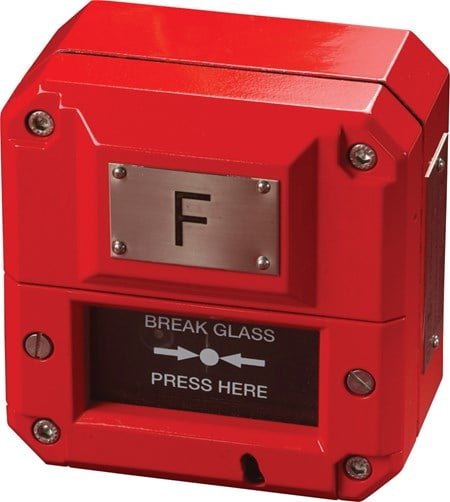

XP95 I.S. Manual Call Point – MEDC Style (Glass & Flip Lid) 55000-961APO

XP95 I.S. Manual Call Point – MEDC Style (Glass & Flip Lid) 55000-961APO

Category:

Description

55000-961APO

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system. The Manual Call Point is suitable for use in areas where explosive atmospheres are, or may be, present.

  • Suitable for intrinsically safe and weatherproof applications
  • Suitable for use on Zones 2, 1 & 0
  • EN 54-11 Certified
  • Reports an alarm in under 0.2 seconds
  • Made of glass-reinforced polyester
  • XP95 & Discovery compatible

Additional Information

General
Warranty  :  3 year
Mechanical
Colour  :  Red
Weight  :  240g
Product length  :  126mm
Product width  :  120mm
Product depth  :  67mm
Detection principle  :  Operation of a switch.
Key type  :  DIN Manal Call Point reset key
Product length  :  4.96in
Product width  :  4.72in
Product depth  :  2.64in
Conformance
Approvals  :  BASEEFA
Electrical
Protocol voltage (max)  :  9V
Protocol voltage (min)  :  5V
Protocol voltage  :  5 to 9V peak to peak
Quiescent current  :  300μA
Quiescent current tested at  :  24V dc
Environmental
IP rating Value  :  IP66
