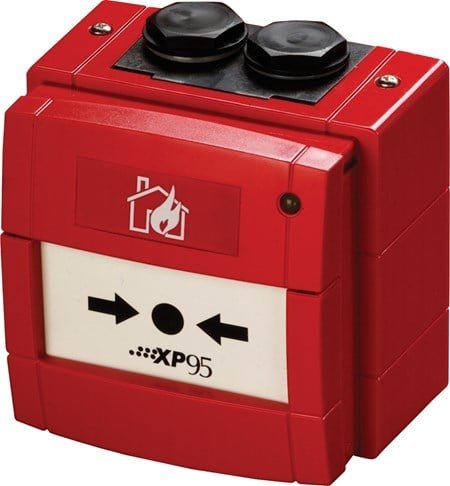

XP95 I.S. Manual Call Point

XP95 I.S. Manual Call Point

Category:

Description

55100-940APO

The Manual Call Point is used to manually initiate an alarm signal on the fire detection system. The Manual Call Point is suitable for use in areas where explosive atmospheres are, or may be, present.

  • Suitable for intrinsically safe and weatherproof applications
  • Suitable for use on Zones 2, 1 & 0
  • EN 54-11 Certified
  • Reports an alarm in under 0.2 seconds
  • XP95 & Discovery compatible

Additional Information

General

Warranty :3 year

Mechanical

Colour
Red
Weight
240g
Materials housing
Polycarbonate

ABS
Product length
97.5mm
Product width
93mm
Product depth
71mm
Detection principle
Operation of a switch.
Key type
KAC Manal Call Point test & reset key
Product length
3.84in
Product width
3.66in
Product depth
2.8in

Conformance

Approvals
BASEEFA

CCCf

CCS

DNV.GL

IECEx

ESC

LPCB

CPR

PESO (CCoE)

MED

Electrical

Protocol voltage (max)
9V
Protocol voltage (min)
5V
Protocol voltage
5 to 9V peak to peak
Power-up surge current
1mA
Quiescent current
300μA
Quiescent current tested at
24V dc
Polarity
L1 & L2 are polarity sensitive

Environmental

Humidity (max)
95% RH
Humidity (min)
0% RH
IP rating Value
IP67
