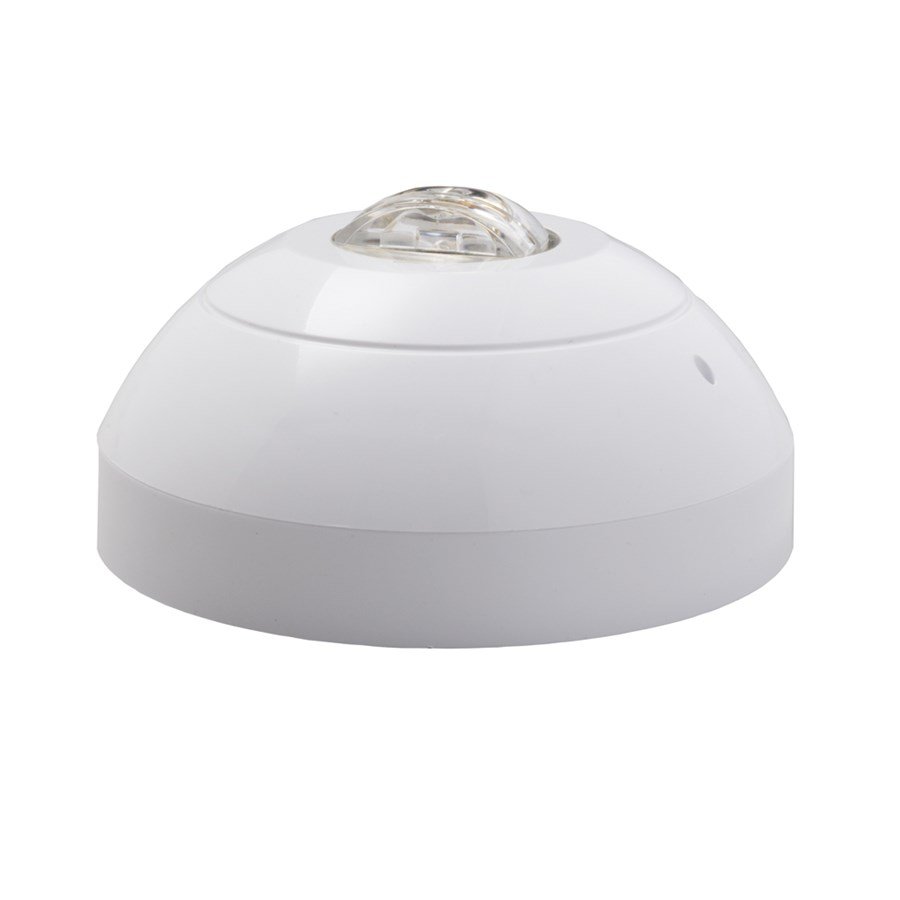

XP95 Open-Area VAD Cat. C – White Body (White Flash) (C-3-8) 55000-745APO

+91 9979572872

sales.shke@gmail.com

XP95 Open-Area VAD Cat. C – White Body (White Flash) (C-3-8) 55000-745APO

XP95 Open-Area VAD Cat. C – White Body (White Flash) (C-3-8) 55000-745APO - Image 2

XP95 Open-Area VAD Cat. C – White Body (White Flash) (C-3-8) 55000-745APO - Image 3

XP95 Open-Area VAD Cat. C – White Body (White Flash) (C-3-8) 55000-745APO - Image 4

XP95 Open-Area VAD Cat. C – White Body (White Flash) (C-3-8) 55000-745APO

Category: Fire Alarm & Detection System

Description

55000-745APO

The XP95 Open-Area VAD Cat. C is specifically designed for use on a ceiling. These devices are used to supplement sounders in areas which carry the risk that sounders will not be heard.

Uses high intensity LED
EN 54-23 Compliant Category C VAD
Flash rate 0.5Hz
Fault signal if LED check failed
Locking mechanism (grub screw)
Wide angle of visibility
Synchronised flash rates with the Apollo Protocol

Enquire in WhatsApp

Additional Information

General	Warranty : 10 year
Performance	Flash rate : 0.5Hz Coverage class : c-3-8
Mechanical	Colour : White Weight : 105g Materials housing : Polycarbonate
Conformance	Standards : EN 54-23 Approvals CPR FG VdS LPCB
Electrical	Quiescent current : 280μA
Environmental	Humidity : 0% to 95% (no condensation or icing) Humidity (min) : 0% RH Humidity (max) : 95% RH Humidity Note : no condensation or icing Operating temperature : -10 to 55°C Operating temperature (max) : 55°C Operating temperature (min) : -10°C Operating temperature : 14 to 131°F Operating temperature (max) : 131°F Operating temperature (min) : 14°F
