The Fireray 3000 incorporates patented Light Cancellation Technology to ensure high operational integrity and false alarm immunity. The system’s microprocessor continuously samples the ambient environment, using sophisticated algorithms to differentiate the signature of genuine smoke obscurity from other infrared sources. This enables the detector to filter out unwanted signals from high-intensity sunlight, sodium discharge lamps, and fluorescent lighting, preventing environmentally induced false alarms without compromising detection sensitivity. This technology is critical for maintaining reliable fire safety in modern architectural spaces with large glass facades or complex lighting arrangements.

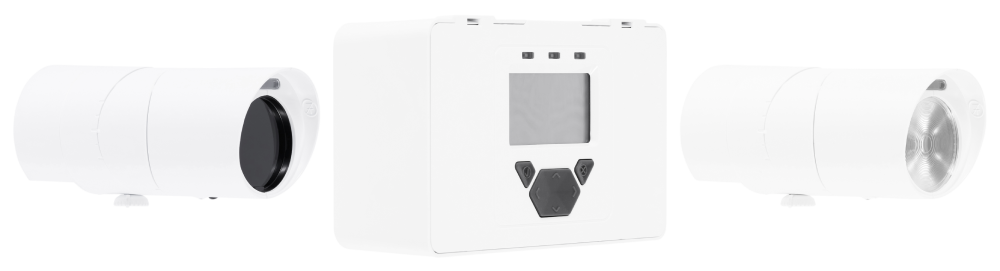

The architecture of the Fireray 3000 centralises system control and diagnostics into a single low-level controller. This ground-accessible unit features an intuitive LCD interface that provides detailed, real-time status information for up to two connected detector heads. Engineers can perform commissioning, alignment, sensitivity adjustments, and comprehensive fire and fault diagnosis without requiring physical access to the ceiling-mounted detectors. The controller’s event log and clear relay outputs for both fire and fault conditions per detector simplify troubleshooting and ensure that system status is always unambiguous.

The Fireray 3000 utilises an end-to-end optical beam smoke detection method, comprising a separate infrared Transmitter and Receiver. This design ensures a precise and defined detection path, making it exceptionally effective for long-distance applications up to 120 metres. Unlike reflective systems, the end-to-end configuration is not affected by stratification or potential signal corruption from nearby reflective surfaces. This makes it the preferred beam detection technology for applications with narrow corridors of sight or within complex structures where building materials could otherwise interfere with a returned signal.
