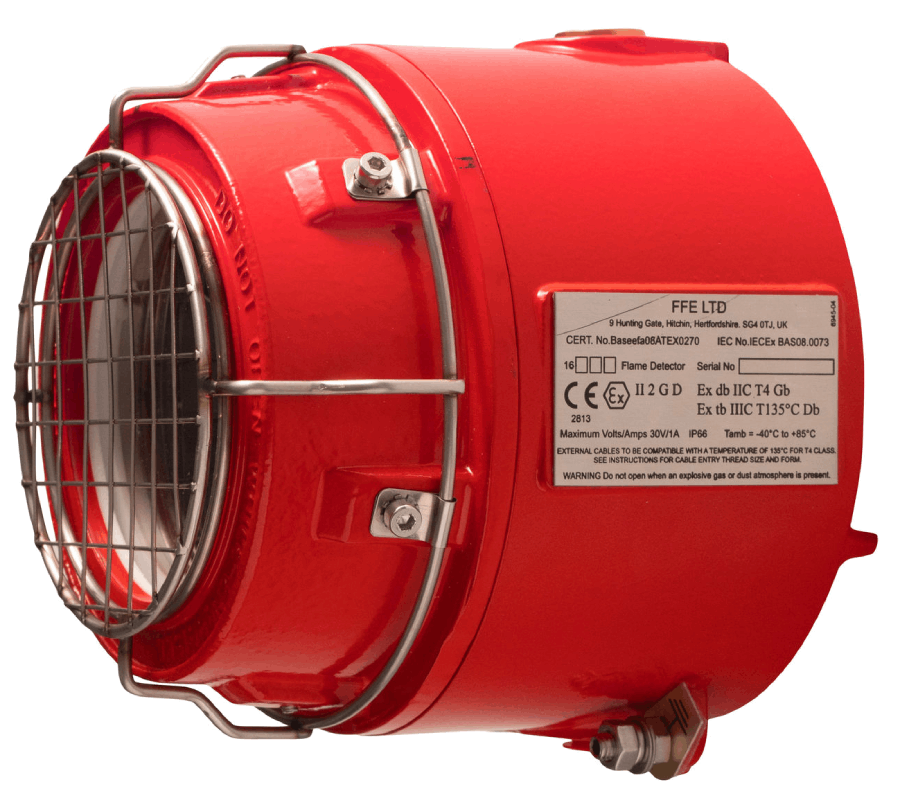

Talentum® 16000 UV/IR2 Flame Detector
Talentum® 16000 UV/IR2 Flame Detector - Image 2
Talentum® 16000 UV/IR2 Flame Detector - Image 3

Talentum® 16000 UV/IR2 Flame Detector

Category:

Description

Combined UV and dual-IR (UV/IR2) sensing ensures rapid, accurate detection with excellent resistance to false alarms.

Additional Information

Key Features
  • Highest Immunity to False SourcesAdvanced sensors ignore sunlight and arc welding, preventing costly, unnecessary downtime
  • Proven Multi-Spectrum DetectionReliably detects a wide range of fires, including invisible flames, for complete peace of mind
  • Extensive Area CoverageA wide 90° field of view protects large areas, reducing the number of detectors required for your site
  • Built for Harsh EnvironmentsA rugged IP65-rated enclosure ensures long-term performance in demanding indoor and outdoor conditions
  • Globally Certified PerformanceFully approved to EN54:10 and FM standards, ensuring your system meets stringent safety requirements
  • Options for Zone 1 and 2 applications
    Key Benefits
    • Maximise Your UptimePrevent costly shutdowns and disruptions with intelligent flame detection that reliably ignores false alarms
    • Safeguard Critical AssetsProtect your facility, equipment, and people with rapid, accurate early warning in high-risk environments
    • Lower Installation CostsAchieve comprehensive site coverage with fewer detectors, simplifying system design and reducing initial spend
    • Ensure Long-Term ReliabilityInstall a fit-and-forget solution. The robust, low-maintenance design delivers dependable performance year after year
    • Deploy with Total ConfidenceMeet stringent regulatory and insurance requirements with a fully certified solution for complete peace of mind

      Technical Details:

      Advanced Optical Sensing

      The detector uses a combination of an ultraviolet (185-260nm) and two infrared (1.0-2.7µm) sensors. This multi-spectrum method ensures the detector can identify a wide range of flame types, from hydrocarbon fires to invisible flames, while rejecting false alarm sources.

      Performance and Sensitivity

      With a high sensitivity setting, the Talentum UV/IR2 flame detector can detect a 0.1m² n-heptane fire at a distance of 25 metres. The field of view is a 90° cone, ensuring broad coverage of the protected zone. Response speed and sensitivity are selectable to suit the application.

      Built for Industrial Environments

      The detector is housed in a rugged die-cast zinc alloy enclosure with a rating of IP65, making it suitable for both indoor and outdoor use. It operates in temperatures from -10°C to +55°C and is engineered to withstand the demands of challenging industrial settings.
