Sensis™ Azure 500s: Industry leading, reliable aspirating smoke detection
Category:
Beam and Flam Detector
Description

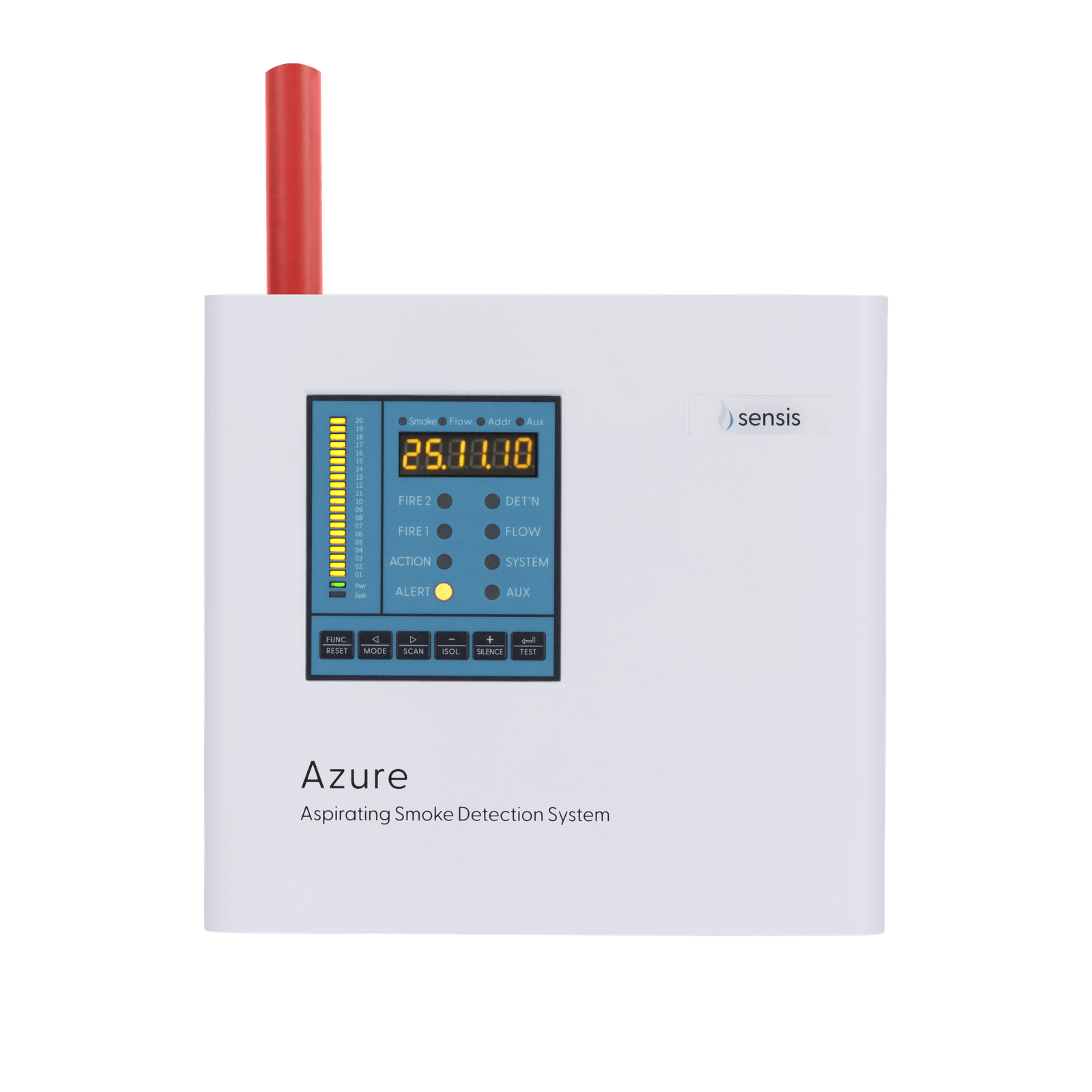

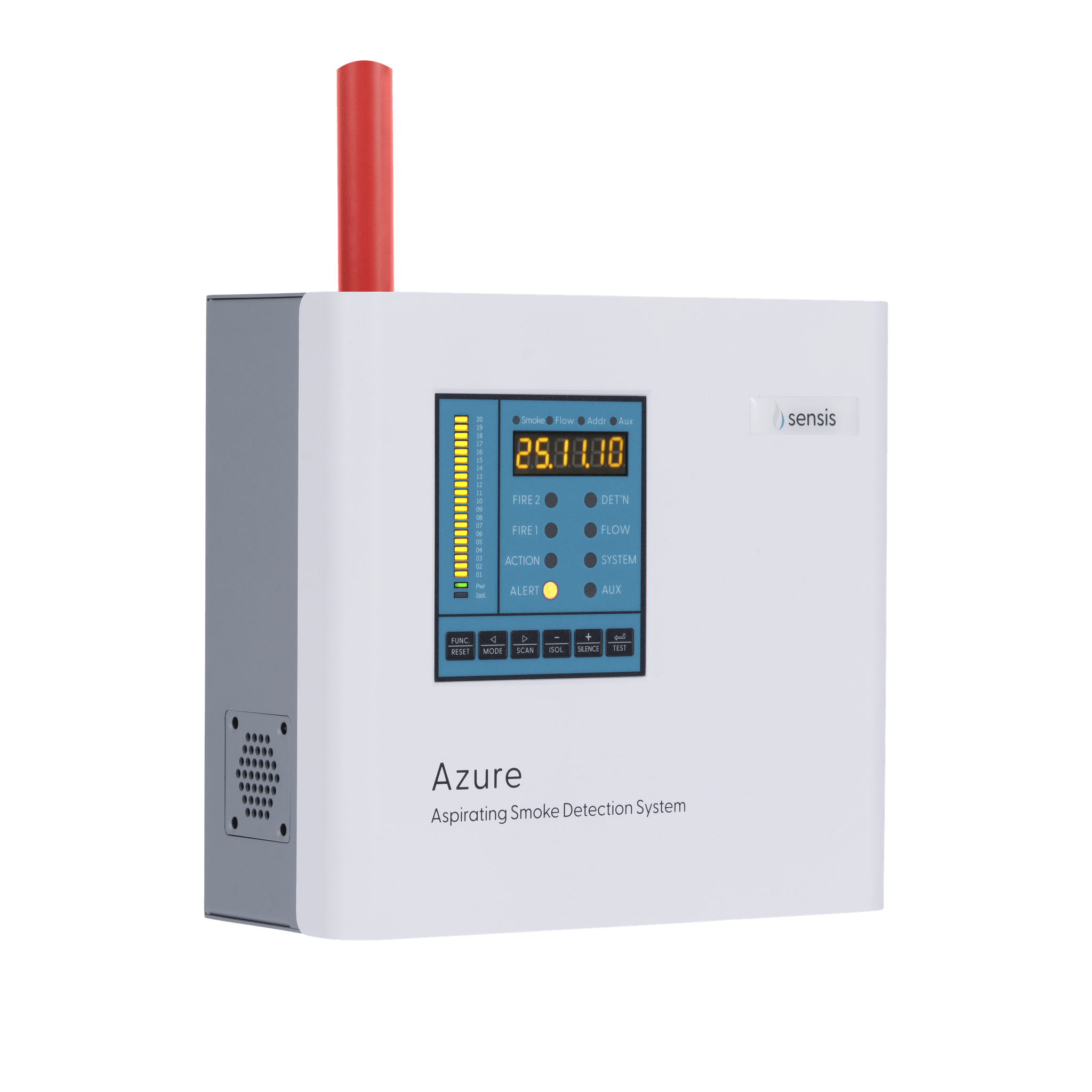

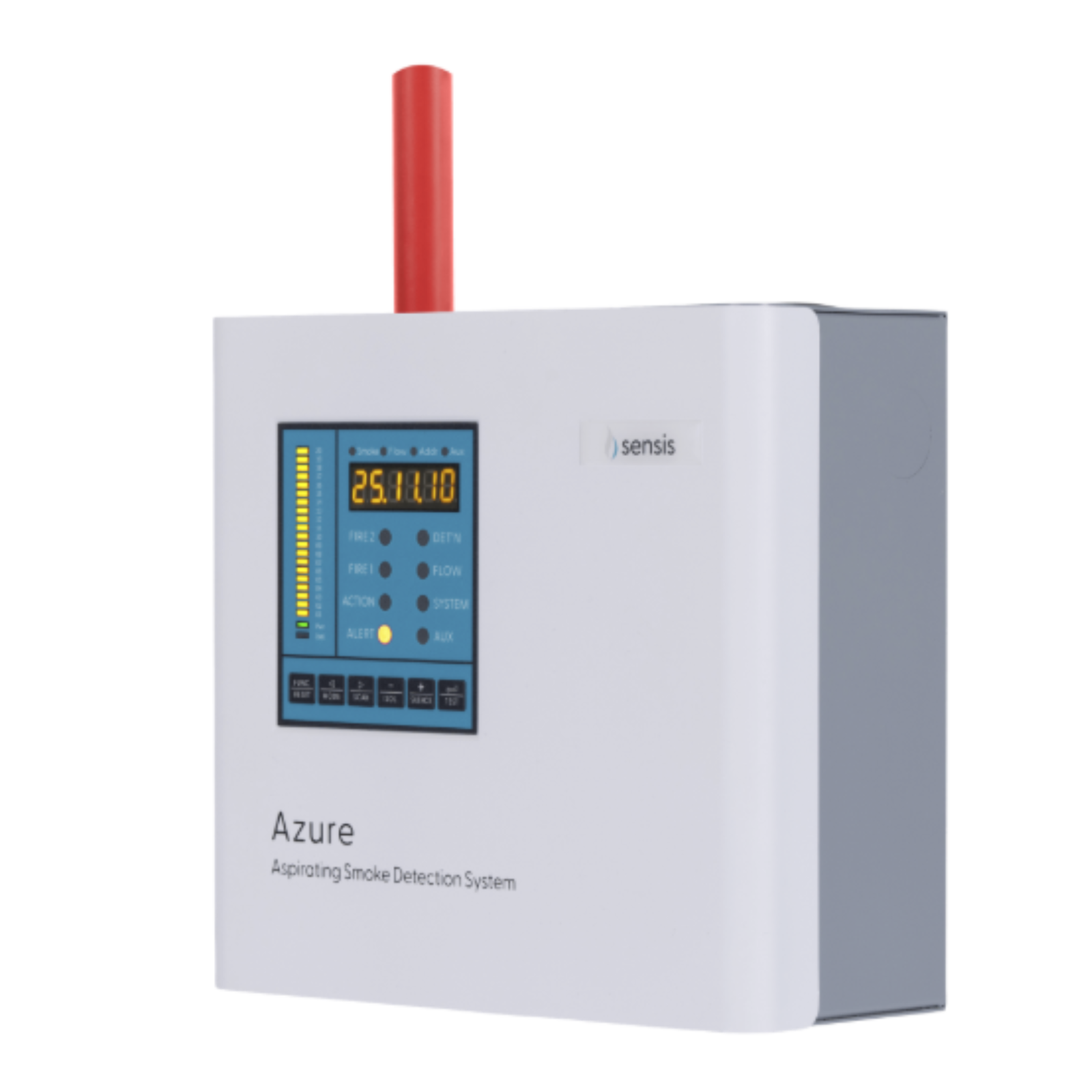

The Sensis Azure 500s is a powerful early warning smoke detection system, designed to deliver reliable protection in small to large open areas and demanding environments. Using advanced aspirating technology, it continuously samples the air for the faintest signs of smoke, ensuring fast and accurate detection.
Enquire in WhatsApp
Additional Information
Key Features
- Very Early Warning DetectionAlarm sensitivity range from 0.005–20% obs/m, protecting areas up to 1,860 m². Ideal for small to large open spaces and challenging applications
- High-Power Blue LED SourceUses a 470 nm wavelength for heightened sensitivity to the smallest smoke particles
- Smart Smoke Level (SSL) TechnologyContinuously learns and adjusts to background conditions, operating 24/7 to reduce false alarms
- Intuitive 3-in-1 displayFront panel with 20-segment bar graph, real-time smoke/flow readings, event log, plus dedicated Reset, Isolate, Silence, and Test functions without extra tools
Key Benefits
- Rapid Fire ResponseDetects smoke at the earliest possible stage, buying crucial time for safe evacuation and swift intervention
- Superior SensitivityBlue LED technology ensures more reliable detection in environments where traditional IR systems may struggle
- Fewer False AlarmsContinuous environmental learning adapts to dust and environmental changes, reducing nuisance activations
- Easy Setup & OperationClear real-time display and configurable settings make installation and commissioning quicker and more straightforward for installers, without the need for additional tools
Sensis Azure 500s Products
Part No. Description Approval 4500-100 Sensis Azure 500s EN 4020-100 Sensis Azure 2000s (1A) EN 4021-100 Sensis Azure 2000s (4A) (Pipe scanning) EN 4022-100 Sensis Azure 2000s (4A16) (Pipe scanning & zone relays) EN Accessories for use with Sensis Azure 500sPart No. Description Compatibility 4800-000 Sensis Network Interface Module (NIM-1200) All Sensis Detectors 4800-001 Sensis Network Control Panel (NCP-1215) All Sensis Detectors 4800-002 Sensis In-Line Filter 25mm All Sensis Detectors 4800-003 RS485 to USB Converter All Sensis Detectors 4800-004 Sensis Azure Dual Stage Filter Replacement filter for Azure 500s and 2000s models 4800-005 Sensis 2.4A Power Supply Unit All Sensis Detectors. Additional battery box may be required for 2000s models
