Sensis™ Cobalt HM: Single & dual pipe very early warning aspirating smoke detection
Category:
Beam and Flam Detector
Description

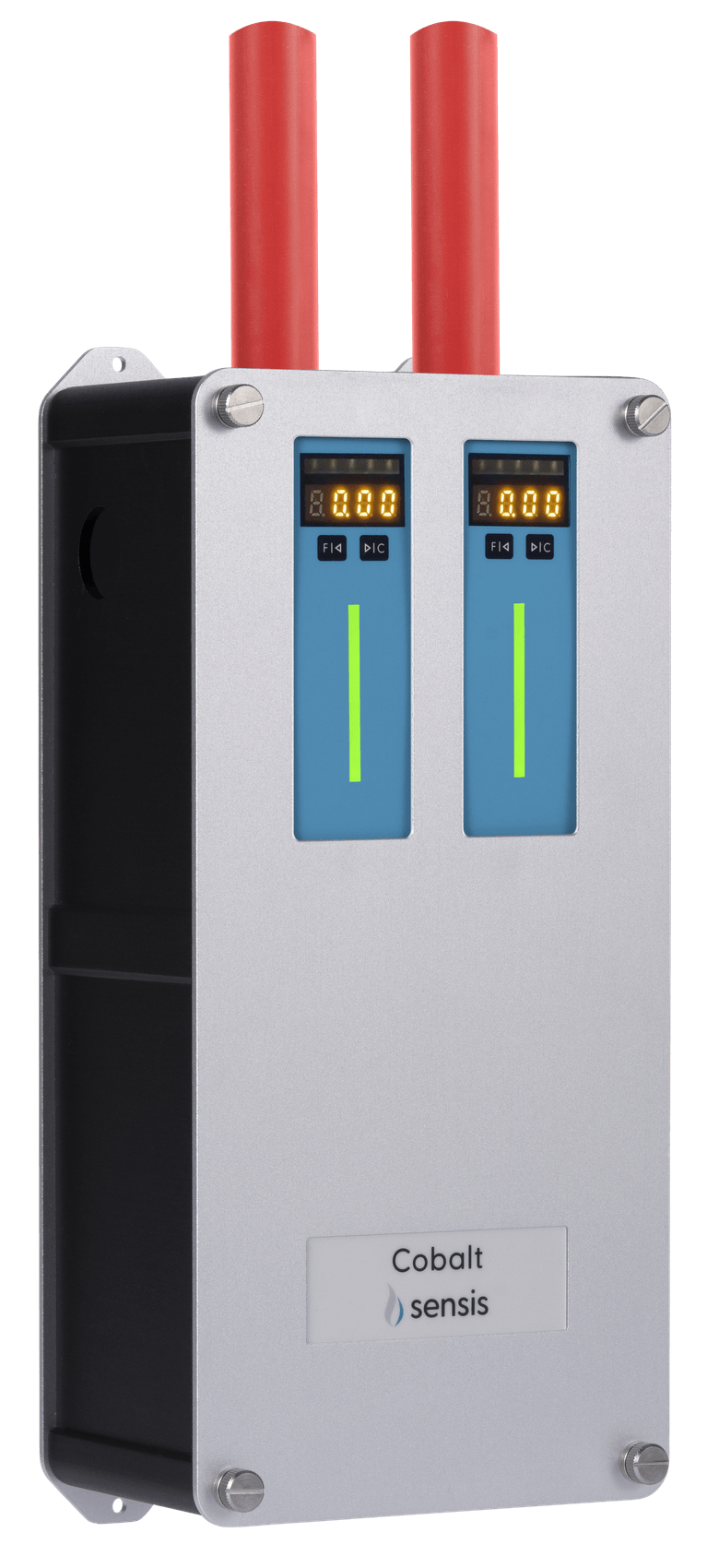

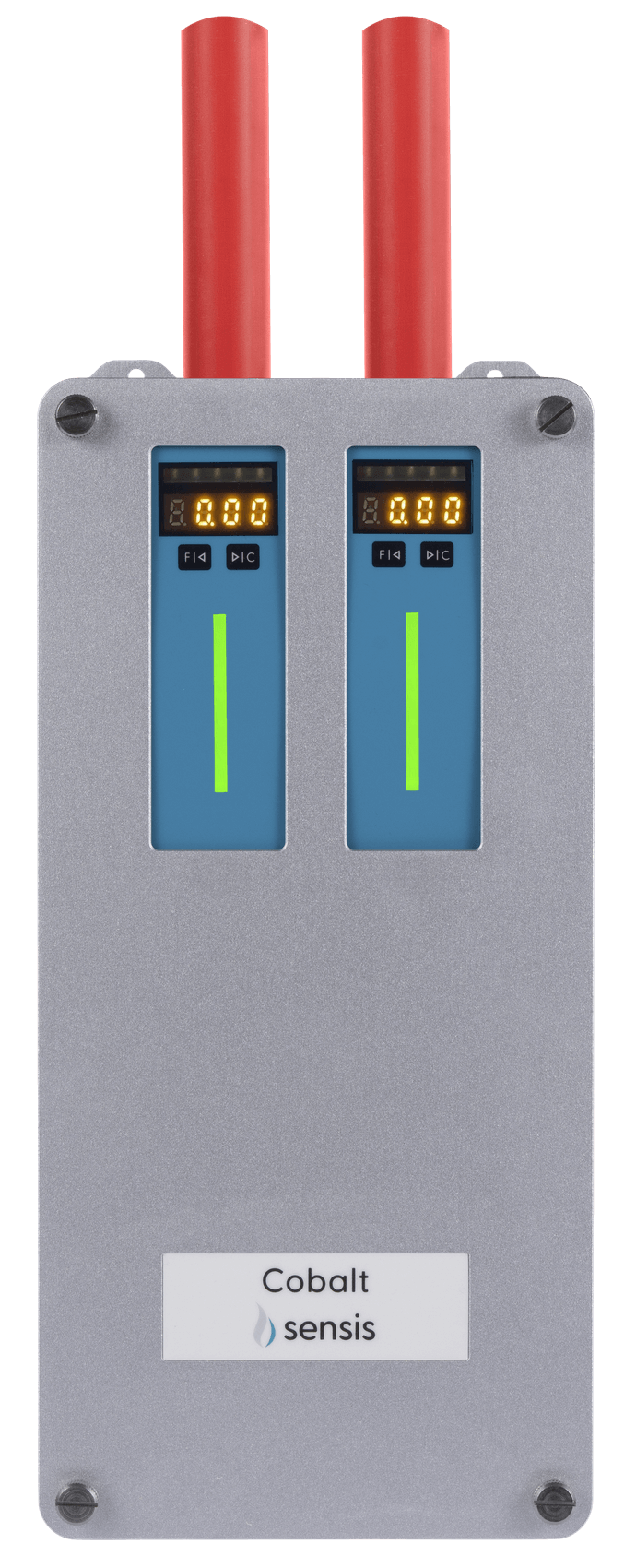

The Cobalt HM1 & HM2 Aspirating Smoke Detectors integrate a unique combination of sensors, including smoke, temperature, and humidity sensors, providing advanced detection capabilities across a variety of applications.
Enquire in WhatsApp
Additional Information
Key Features
- Sub-Zone Specific ConfigurationHM1 (single pipe), Designed for precise protection of individual areas while the HM2 (dual pipe) enables coverage of two separate sub-zones in a single unit – cost-effective flexibility for varied applications
- Aspirating Detection with High SensitivityBuilt on CSD-H aspirator technology, Cobalt delivers highly sensitive early warning smoke detection, with a wide sensitivity range for dependable performance
- Compact, Purpose-Built DesignEngineered specifically for small to medium open spaces, Cobalt units combine sampling pipes, aspirators, and detection chamber into a single, space-efficient enclosure
- Network Integration & Output OptionsEquipped with RS‑485 communication and Modbus RTU support, along with relay outputs, facilitating seamless integration into fire panels and building management systems
Key Benefits
- Targeted Zone ProtectionThe HM1 offers precision for single-zone protection, while the HM2 simplifies installations by covering larger spaces or enabling the zone to be broken into sub-zones in one device—reducing hardware and wiring costs
- Early Fire DetectionAdvanced aspirating technology identifies smoke at the incipient stage, providing maximum response time to safeguard people and assets
- Optimized for Small to Medium Open AreasReliable protection for spaces such as lift shafts, machine rooms, data halls, and open-plan facilities
- Seamless System IntegrationOpen protocol communication and flexible I/O make it easy for users to connect Cobalt into wider fire detection and BMS infrastructure for centralized monitoring and control
Sensis® Cobalt HM Products
Part No. Description Approval 4100-100 Sensis Cobalt HM1 EN coming early 2026 4200-100 Sensis Cobalt HM2 EN coming early 2026 Accessories for use with Sensis® Cobalt HMPart No. Description Compatibility 4800-000 Sensis Network Interface Module (NIM-1200) Done 4800-001 Sensis Network Control Panel (NCP-1215) Done 4800-002 Sensis In-Line Filter 25mm Done 4800-003 RS485 to USB Converter Done 4800-005 Sensis 2.4A Power Supply Unit Done
