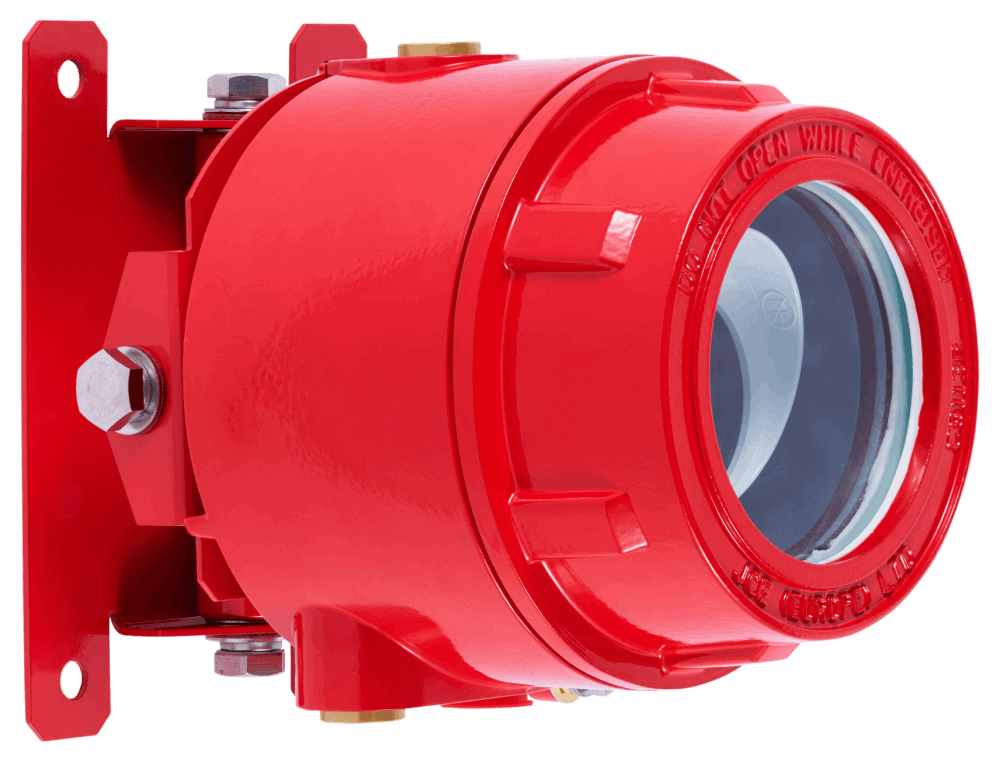

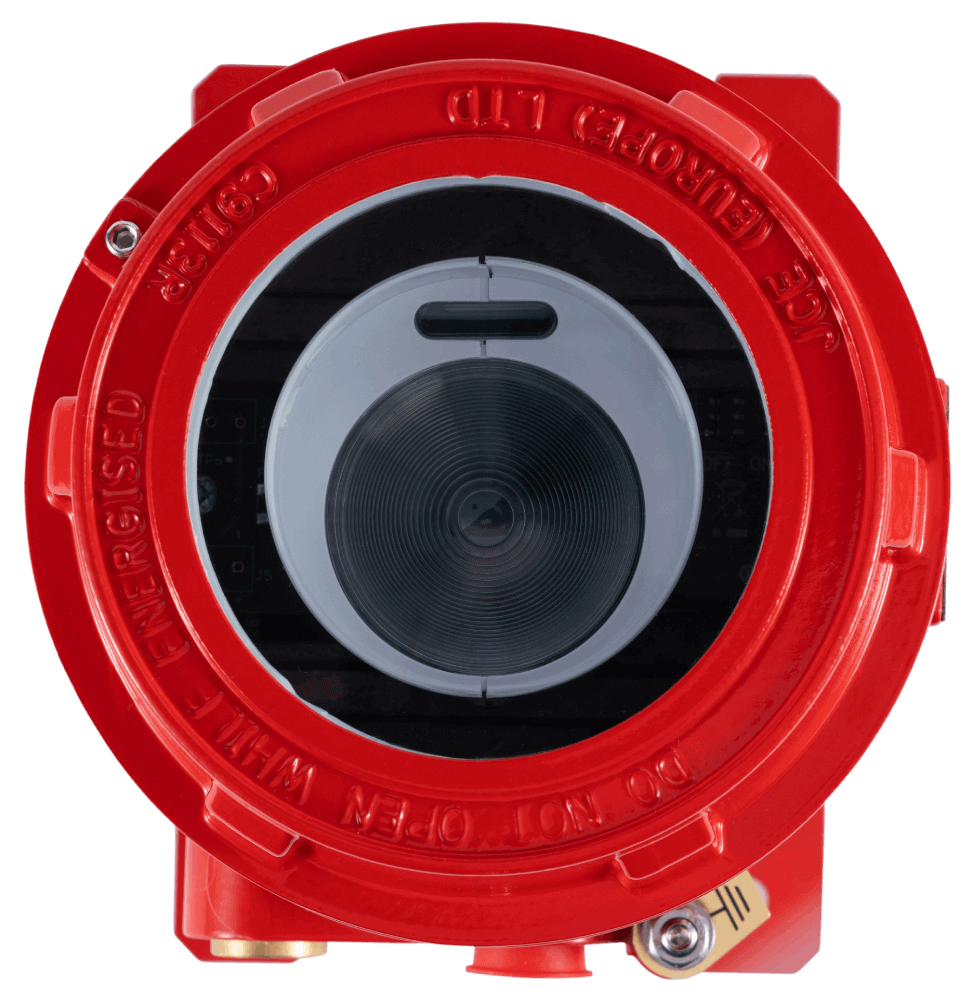

Fireray® 3000 Ex d: Reliable End-To-End Beam Smoke Detector For Hazardous Environments
Description
The Fireray 3000 Ex d is an ATEX and IECEx certified explosion-proof, end-to-end beam smoke detector, engineered for uncompromising fire safety in the most demanding conditions. Its robust metal construction ensures protection where it matters most.
Additional Information
- ATEX & IECEx Certified
Safe for use in hazardous zones 1, 2, 21, and 22 - Integrated LCD Controller
Provides easy configuration and diagnostics at ground level - IP66 Metal Construction
Robust, sealed design for harsh industrial environments - End-to-End Beam Detection
Ensures complete coverage across the entire detection path - Light Cancellation Technology™
Actively compensates for sunlight and artificial lighting to prevent false alarms - Dynamic Beam Phasing
Unique beam signatures allow installation in challenging configurations and enable detectors to face each other without risk ofKey Benefits- Explosion-Safe Operation
Certified for safe use in hazardous environments - Convenient Ground-Level Access
Allows for easy configuration and fire and fault diagnosis from a convenient, non-specialist location - Long-Term Durability
Provides durable, long-term protection in harsh industrial environments - Reliable Full-Beam Coverage
Ensures consistent detection across the entire beam length - Minimise False Alarms
Prevents interference from sunlight and artificial lighting - Simplified Multi-System Installation
Allows multiple systems to be installed without risk of interference
cross-talk, interference, or false alarms
Maximum Safety in Hazardous Environments
The Fireray 3000 Ex d achieves its explosion proof rating through a meticulously engineered flameproof enclosure. Certified to ATEX and IECEx standards for Zones 1, 2, 21, and 22, the unit’s housing is designed to contain any potential internal ignition and prevent the transmission of flames to the external hazardous atmosphere. The robust, sealed metal construction not only provides this critical safety feature but also offers IP66-rated protection against dust and water ingress, ensuring long-term reliability and performance in aggressive industrial environments.
False Alarm Reduction with Intelligent Detection
At the core of the detector’s reliability is FFE’s proprietary Light Cancellation Technology. This system employs sophisticated algorithms to actively monitor and compensate for ambient light conditions, including direct sunlight and high-intensity artificial lighting. By filtering out these non-fire stimuli, the Fireray 3000 Ex d maintains high sensitivity to smoke particles while preventing the false alarms that can disrupt operations and reduce confidence in a fire safety system. This ensures that any alarm is a genuine event, warranting immediate attention.
Effortless Maintenance with Ground-Level Control
Operational efficiency is greatly enhanced by the integrated low level controller, which features a clear LCD display. This ground-level interface provides engineers with full access to system diagnostics, including fire and fault diagnosis, event logs, and alignment parameters. It removes the need for scaffolding or mobile platforms to access the detector heads, significantly reducing maintenance time, cost, and safety risks. All adjustments and status checks can be performed quickly and safely from a convenient location, streamlining the entire commissioning and service process.

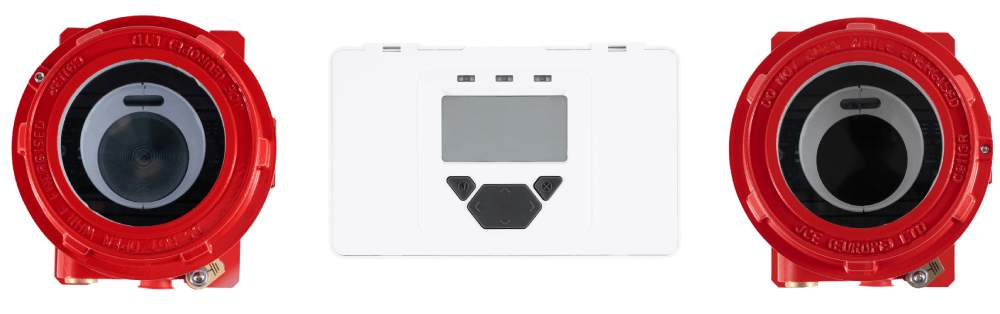

Fireray 3000 Ex d Products
Part No. Description Approval 3000-115 Fireray 3000 Beam Detector System (Ex d) ATEX Accessories for use with Fireray 3000 Ex dPart No. Description Compatibility 1000-019 Fireray 3000 Controller Protective Cage Specific 1150-000 Fireray Commissioning and Maintenance Kit Generic 0209-02 Fireray Test Filter Generic 3000-007 Fireray 3000 Controller Specific 3000-026 Fireray 3000 Detector (Ex d) Specific - Explosion-Safe Operation
