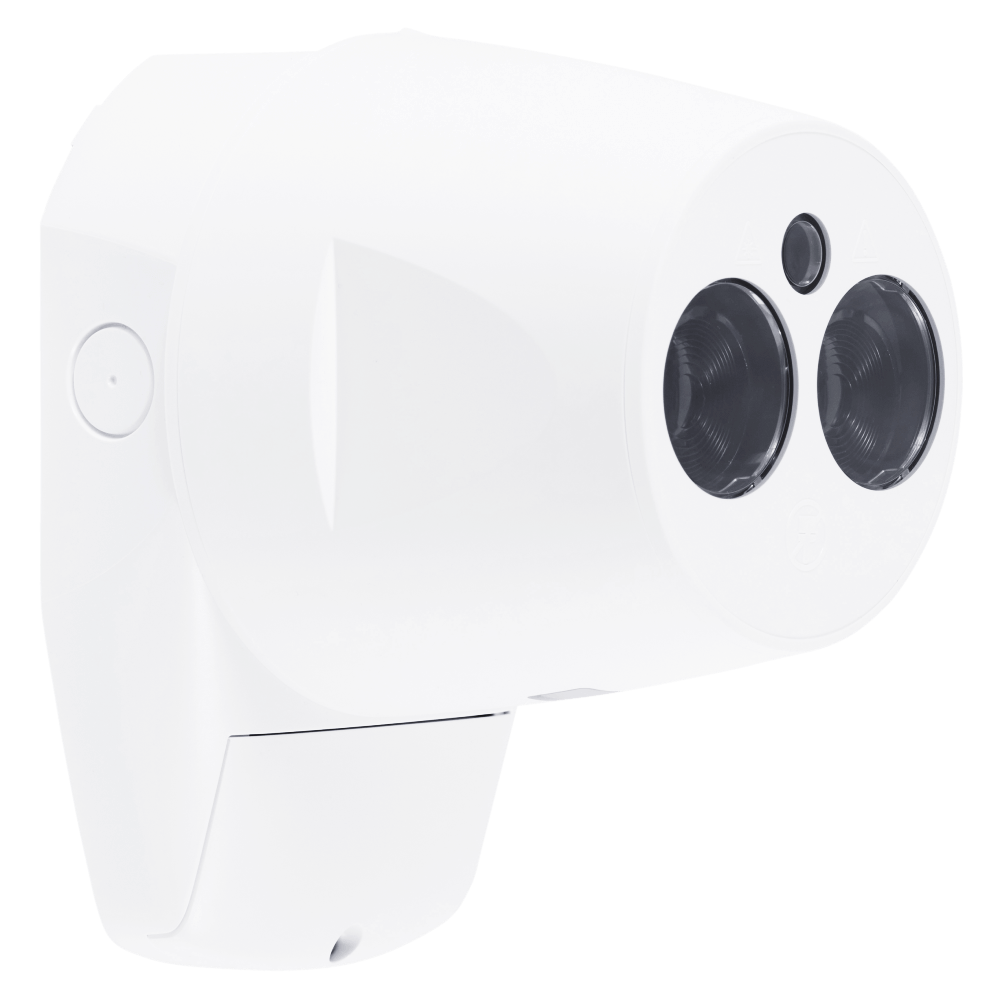

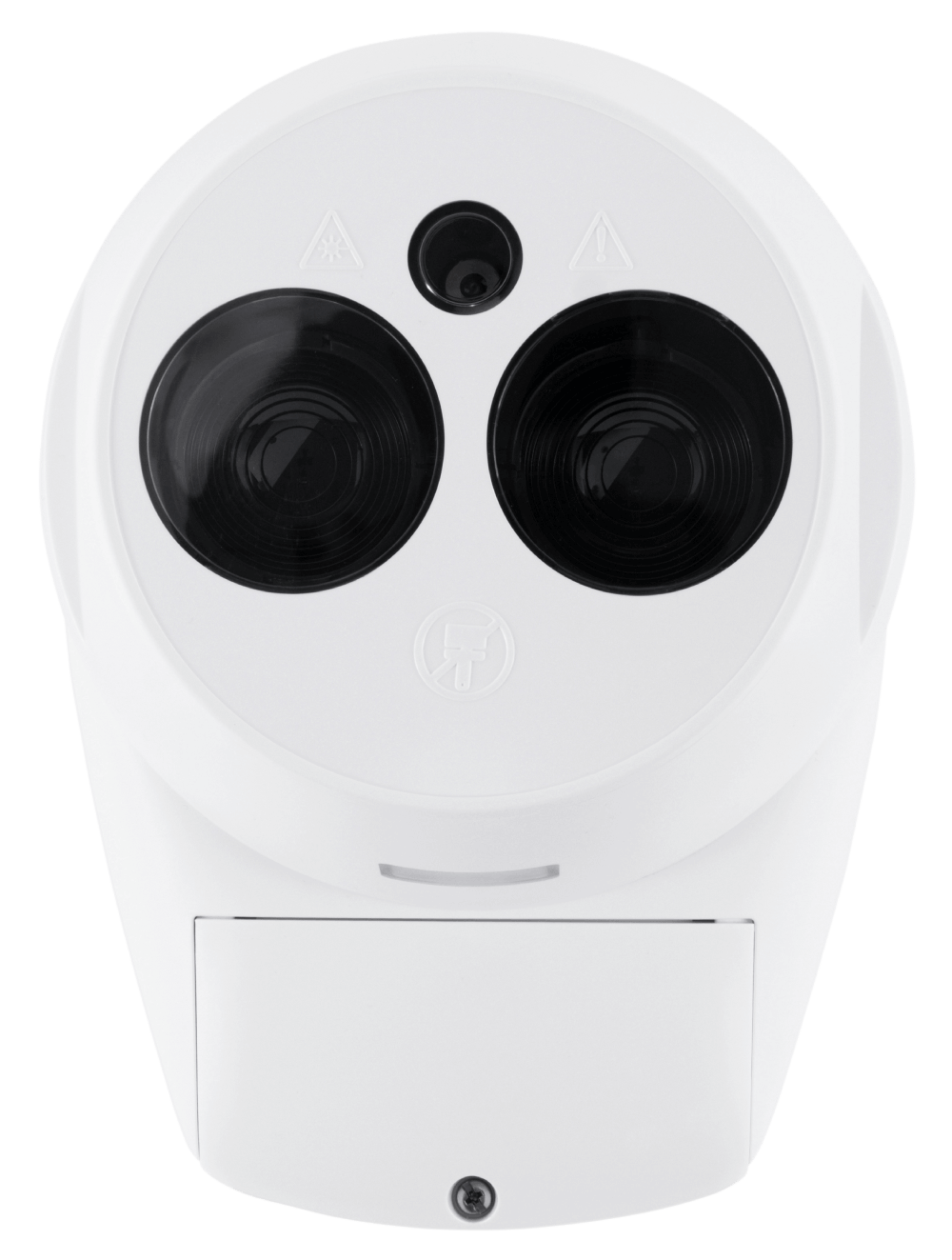

Fireray® One: The Self-Aligning Beam Smoke Detector
Description
Protecting your property from fire shouldn’t be complicated. The Fireray One offers a simple, reliable, and cost-effective solution for beam smoke detection, designed for one-person installation and minimal maintenance.
Additional Information
- Auto-Aligns8x faster than previous detectors
- One-Person InstallationNo specialist tools are required
- Light Cancellation Technology™Prevents nuisance alarms
- Building Movement Tracking™Maintains alignment in settling buildings
- Contamination CompensationCorrects for dust build-up on optics
- Low Power ConsumptionCan be powered from the loop
- Dynamic Beam PhasingPrevents interference between beams
- Detection RangeUp to 120m
Key Benefits
- Save Time and MoneyThe simple one-person installation and minimal maintenance reduce labour costs
- Reduce False AlarmsAdvanced technology ensures reliable detection without unnecessary disruptions
- Ensure Continuous SafetyThe system automatically adjusts to environmental changes, providing constant protection
- Enjoy Peace of MindWith a reliable and easy-to-maintain system, you can be confident your property is protected
Dynamic Beam Phasing for Complex Geometries
The Fireray One incorporates Dynamic Beam Phasing, a technology that allows multiple beam detectors to operate in close proximity without causing signal interference. By sequencing the timing of each unit’s light pulses, the system ensures that a detector’s receiver will only recognise the signal from its corresponding emitter. This enables flexible installation in challenging layouts, such as parallel-facing beams in long corridors or irregular configurations in large, open areas, preventing the risk of false alarms caused by cross-talk between units.
Advanced Light Cancellation Technology™
To ensure reliable performance in environments with high ambient light, the Fireray One is equipped with Light Cancellation Technology™. This system actively measures ambient light levels, including direct sunlight and high-intensity artificial lighting, and filters them out from the infrared signal used for smoke detection. This prevents high-lux conditions from saturating the receiver and triggering nuisance alarms, ensuring the detector remains stable and effective in challenging settings like glass atria and modern architectural spaces.
Building Movement and Contamination Compensation
The Fireray One maintains operational integrity through two key automated features. Building Movement Tracking™ uses sophisticated algorithms to continuously monitor for and correct minor shifts in alignment caused by natural building settlement or thermal expansion. Simultaneously, Contamination Compensation adjusts the signal sensitivity to account for the gradual accumulation of dust and dirt on the optical surfaces. Together, these features ensure long-term reliability and significantly reduce the need for manual maintenance interventions.
Fireray One ProductsPart No. Description Approval 6010 – 100 Fireray One Beam Detector EN 6010 – 200 Fireray One Beam Detector NF 6010 – 300 Fireray One Beam Detector UL, FM 6010 – 500 Fireray One Beam Detector AS Accessories for use with Fireray OnePart No. Description Compatibility 1100 – 000 Fireray One Protective Cage Specific 1060 – 000 Fireray One Anti-Condensation Heater Specific 1010 – 000 Fireray Prism (Long Range) Generic 5000 – 008 Fireray Prism Plate Generic 5000 – 007 Fireray Prism Plate (Long Range) Generic 1170 – 000 Fireray Detector Adjustment Bracket Generic 1150 – 000 Fireray Commissioning and Maintenance Generic 0209 – 02 Fireray Test Filter Generic
