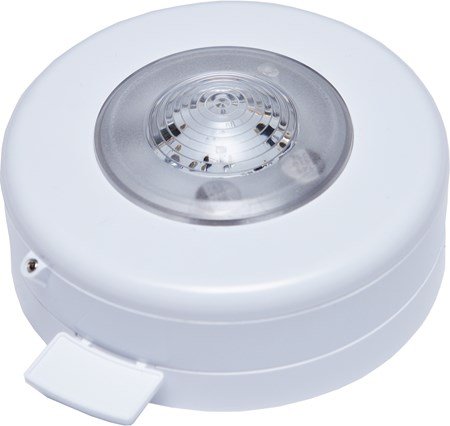

Intelligent Open-Area VID – White Body (White Flash)SA5501-320APO

Intelligent Open-Area VID – White Body (White Flash)SA5501-320APO

Category:

Description

SA5501-320APO

The Intelligent Open-Area VIDs work natively across XP95, Discovery and CoreProtocol, offering advanced functionality and performance in open areas.

  • Sits on XPERT base for faster installation and maintenance
  • Configurable VID flash rate
  • Group addressing functionality

Additional Information

Mechanical
Colour  :  White
Product depth  :  33mm
Product diameter  :  100mm
Product depth  :  1.3in
Product diameter  :  3.94in
Conformance
Approvals  :  LPCB
             CPR
Electrical
Quiescent current  :  890μA
Quiescent current tested at  :  24V dc
Supply voltage (max)  :  35V dc
Supply voltage (min)  :  17V dc
Supply voltage (Vmin-Vmax)  :  17 to 35V dc
Environmental
Humidity (max)  :  95% RH
Humidity (min)  :  0% RH
Humidity Note  :  no condensation or icing
Humidity  :  0% to 95% (no condensation or icing)
Operating temperature (max)  :  55°C
Operating temperature (min)  :  -10°C
Operating temperature  :  -10 to 55°C
IP rating Value  :  IP21C
Operating temperature  :  14 to 131°F
Operating temperature (max)  :  131°F
Operating temperature (min)  :  14°F
