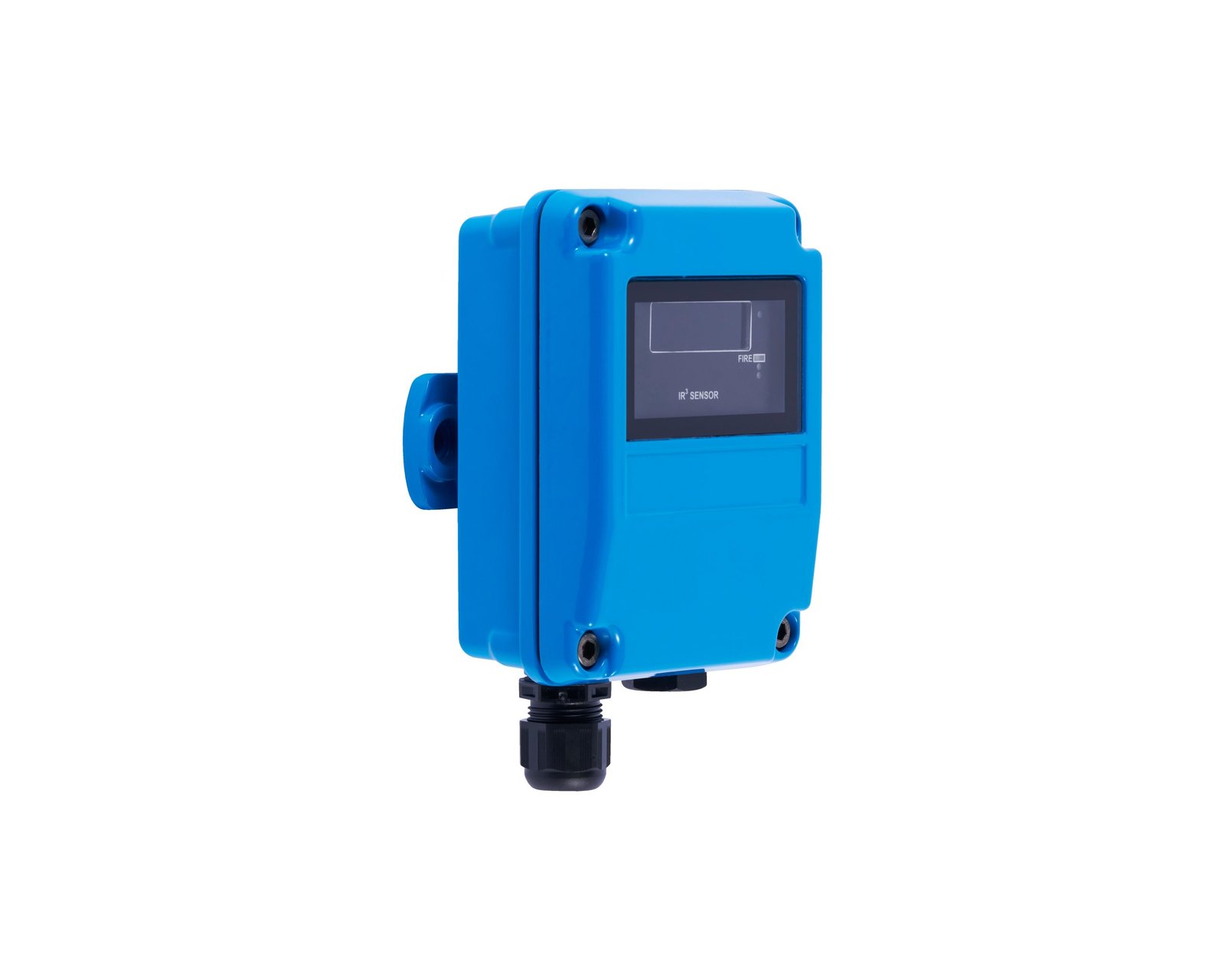

XP95 Flame Detector (IR3) 55000-020APO

Description

Additional Information

General
Warranty  :  3 year
Mechanical
Colour  :  Blue
Weight  :  2000g
Materials housing  :  Die-cast zinc alloy
Product length  :  142mm
Product width  :  108mm
Product depth  :  82mm
Product length  :  5.59in
Product width  :  4.25in
Product depth  :  3.23in
Conformance
Approvals  :  CPR
              LPCB
Environmental
Humidity (max)  :  95% RH
Humidity (min)  :  0% RH
Humidity Note  :  no condensation or icing
Humidity  :  0% to 95% (no condensation or icing)
Operating temperature  :  -10 to 55°C
Operating temperature (max)  :  55°C
Operating temperature (min)  :  -10°C
Storage temperature (max)  :  65°C
Storage temperature (min)  :  -20°C
Storage temperature  :  -20 to 65°C
Operating temperature  :  14 to 131°F
Operating temperature (max)  :  131°F
Operating temperature (min)  :  14°F
