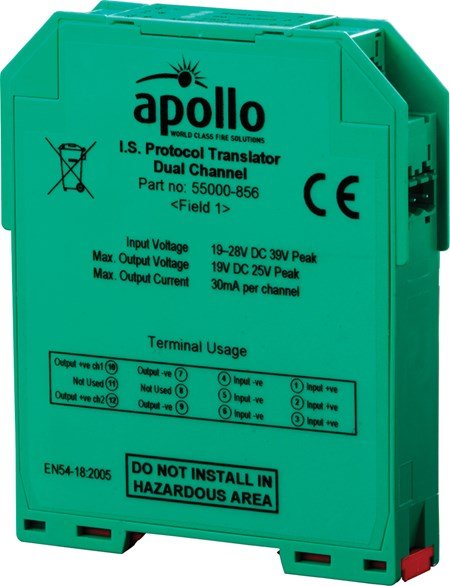

XP95 Protocol Translator – Dual Channel [SIL2] 55000-856APO

+91 9979572872

sales.shke@gmail.com

XP95 Protocol Translator – Dual Channel [SIL2] 55000-856APO

Category: Intrinsically safe Detector & Device

Description

55000-856APO

The Protocol Translator are installed in the safe area ensuring integrity of communication between control equipment and field devices and safety within the limits of BASEEFA approvals.

Enquire in WhatsApp

Additional Information

General	Warranty : 10 year
Mechanical	Colour : Green Weight : 100g Materials housing : Polycarbonate Product length : 110mm Product width : 92.5mm Product depth : 20mm Product length : 4.33in Product width : 3.64in Product depth : 0.79in
Conformance	Approvals ESC LPCB LR DNV.GL CPR MED
Electrical	Protocol voltage (min) : 5V Protocol voltage (max) : 9V Protocol voltage : 5 to 9V peak to peak Supply voltage (max) : 28V dc Supply voltage (min) : 19V dc Supply voltage (Vmin-Vmax) : 19 to 28V dc
Environmental	Humidity : 10% to 95% (no condensation or icing) Humidity Note : no condensation or icing Humidity (max) : 95% RH Humidity (min) : 10% RH Operating temperature : -20 to 60°C Operating temperature (max) : 60°C Operating temperature (min) : -20°C Operating temperature : -4 to 140°F Operating temperature (max) : 140°F Operating temperature (min) : -4°F
