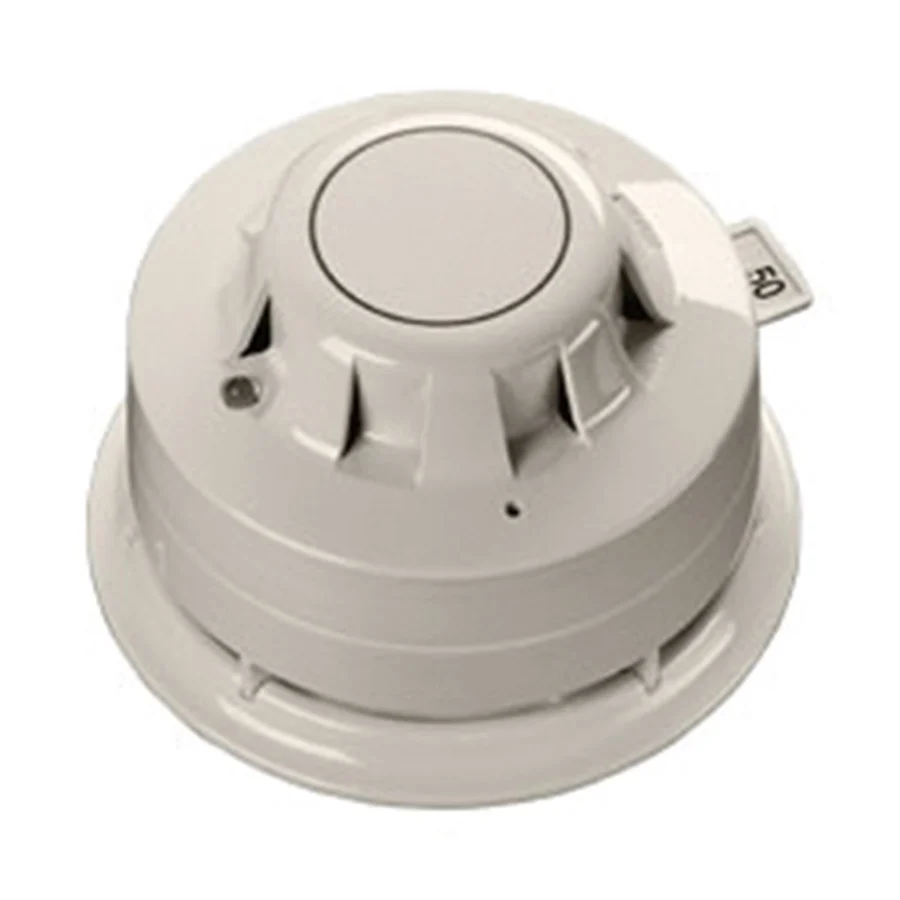

XP95 Sounder Base – Ancillary 45681-276APO

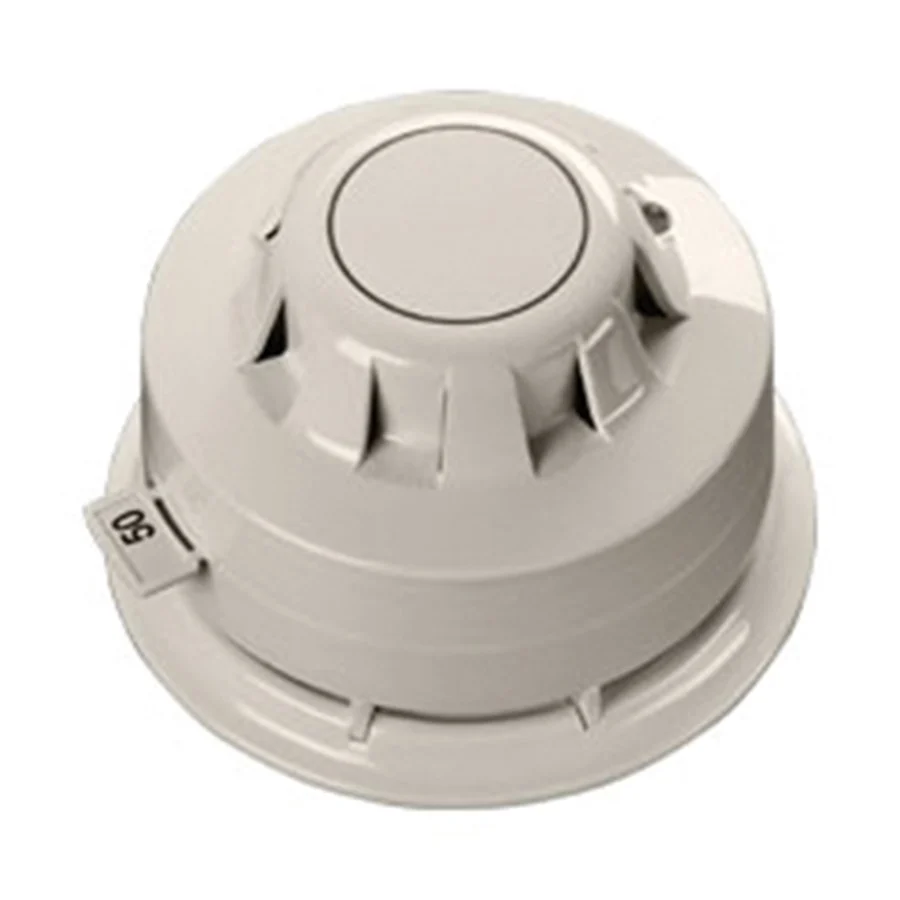

XP95 Sounder Base – Ancillary 45681-276APO - Image 2
XP95 Sounder Base – Ancillary 45681-276APO - Image 3

XP95 Sounder Base – Ancillary 45681-276APO

Category:

Description

45681-276APO

XP95 Sounder Base – Ancillary with mounting base. Designed for indoor use.

  • Two Apollo Tones
  • EN54-3 Sounder
  • Multiple Selectable Volumes
  • XP95 (works on Discovery & CoreProtocol)
  • Activated via Detector head, does not take up an address
  • 4″ Isolated Base EN54-17

Additional Information

General
Warranty   :  10 year
Performance
Selectable volume(s)
70dB (A)

71dB (A)

72dB (A)

73dB (A)

74dB (A)

75dB (A)

76dB (A)

77dB (A)

78dB (A)

79dB (A)

80dB (A)

81dB (A)

82dB (A)

83dB (A)

84dB (A)

85dB (A)

Tone(s)  :  1
Mechanical
Colour  :  White
Materials housing  :  Polycarbonate
Product depth  :  38mm
Product diameter  :  115mm
Product depth  :  1.5in
Product diameter  :  4.53in
Conformance
Standards  :  EN 54-3
Approvals  :  FG
             CPR
Electrical
Polarity  :  L1 & L2 are polarity sensitive
Battery powered  :  No
Quiescent current  :  100μA
Quiescent current tested at  :  24V dc
Supply voltage (max)  :  28V dc
Supply voltage (min)  :  17V dc
Supply voltage (Vmin-Vmax)  :  17 to 28V dc
Loop powered  :  Yes
External power supply required  :  No
Environmental
Humidity  :  0% to 95% (no condensation or icing)
Humidity (max)  :  95% RH
Humidity (min)  :  0% RH
Humidity Note  :  no condensation or icing
Operating temperature  :  -20 to 60°C
Operating temperature (max)  :  60°C
Operating temperature (min)  :  -20°C
IP rating Value  :  IP23D
Operating temperature (min)  :  -4°F
Operating temperature (max)   :  140°F
Operating temperature  :  -4 to 140°F
